376 Chapter 10
Using Operator Interfaces
Using Operator Interface Objects

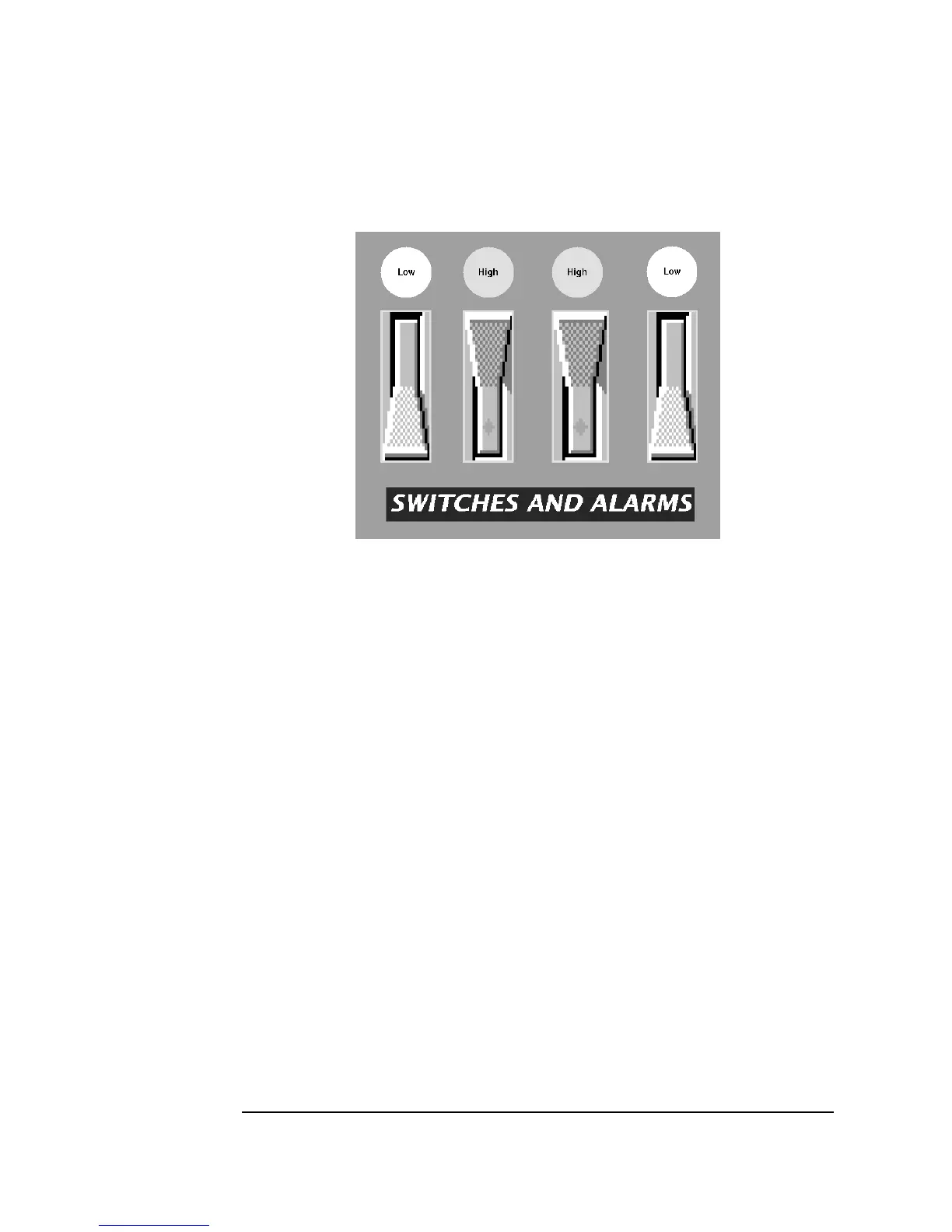

Figure 10-13. Switches and Alarms Combined
Aligning Objects in the Operator Interface
In the panel view, there is a “snap-to-grid” feature to help align objects. You
can change the grid size from 10 to 1 (10 is the default) to make very
accurate alignments, as shown in Figure 10-14. You can use this feature to
give the program a professional look. The “snap-to-grid” feature is located
in the
Panel folder under the Properties selection of the UserObject or
UserFunction menu. (Remember, you must have created a panel view for
the
Panel folder selection to display in the dialog box.)
