Agilent Technologies VEE Pro

Chapter 2 81
Agilent VEE Programming Techniques
General Techniques

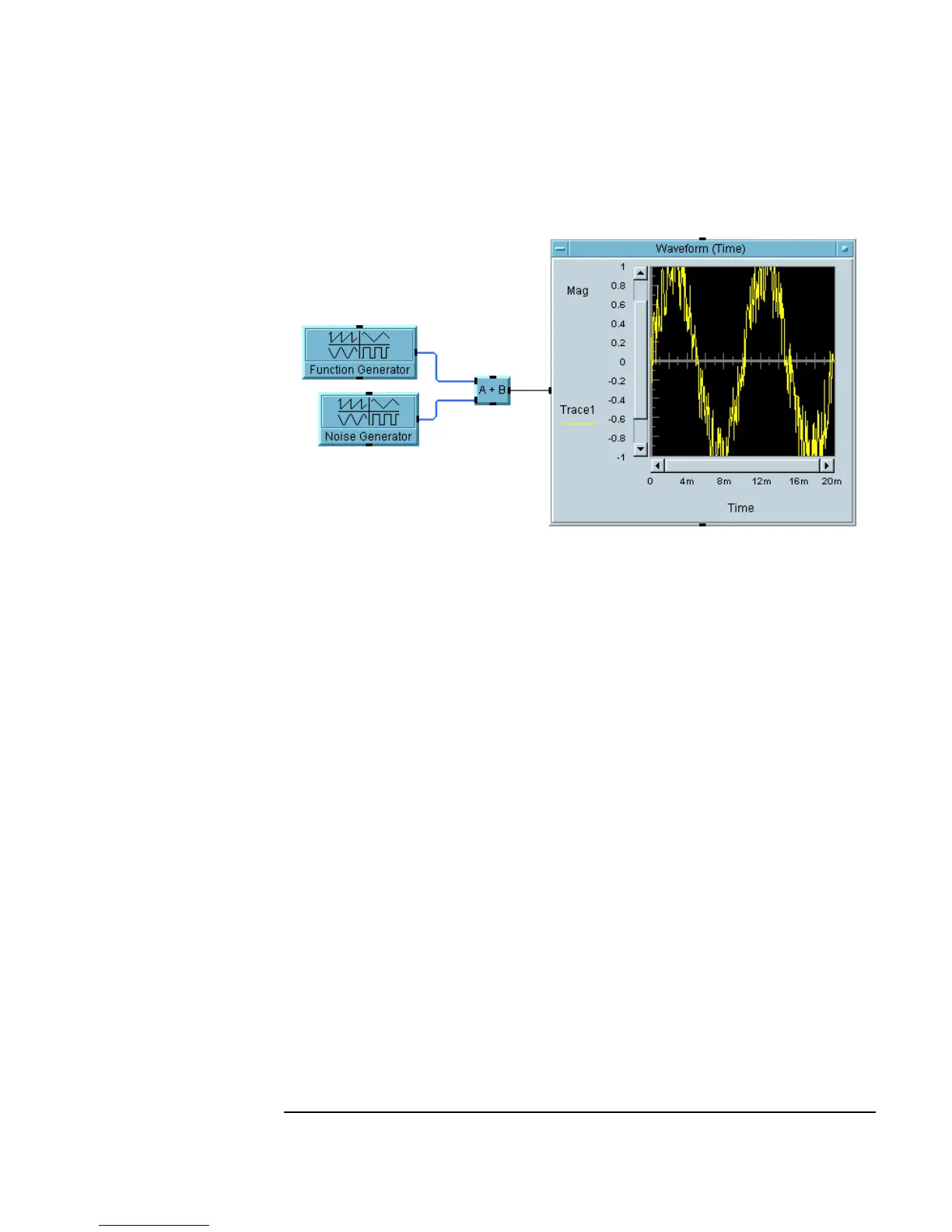

Figure 2-2. usrobj-program.vee at an Early Stage
6. Select the Noise Generator and A+B objects, using the shortcut
Ctrl+left mouse button. Click Edit ⇒ Create UserObject. A dialog
box appears labeled
Create UserObject. (You could rename the
object by typing in a new name if you wish. For now, click
OK to create
the
UserObject.)
The
UserObject will contain the Noise Generator and A+B objects
in the
UserObject edit window, and will be automatically created in the
Main window with the appropriate input and output pins and connections
as shown in Figure 2-3.
Tip: Position the icons in the upper left of the
UserObject by simply
pressing the
Home button on the keyboard.
