56 Chapter 1
Using the Agilent VEE Development Environment
Connecting Objects to Make a Program

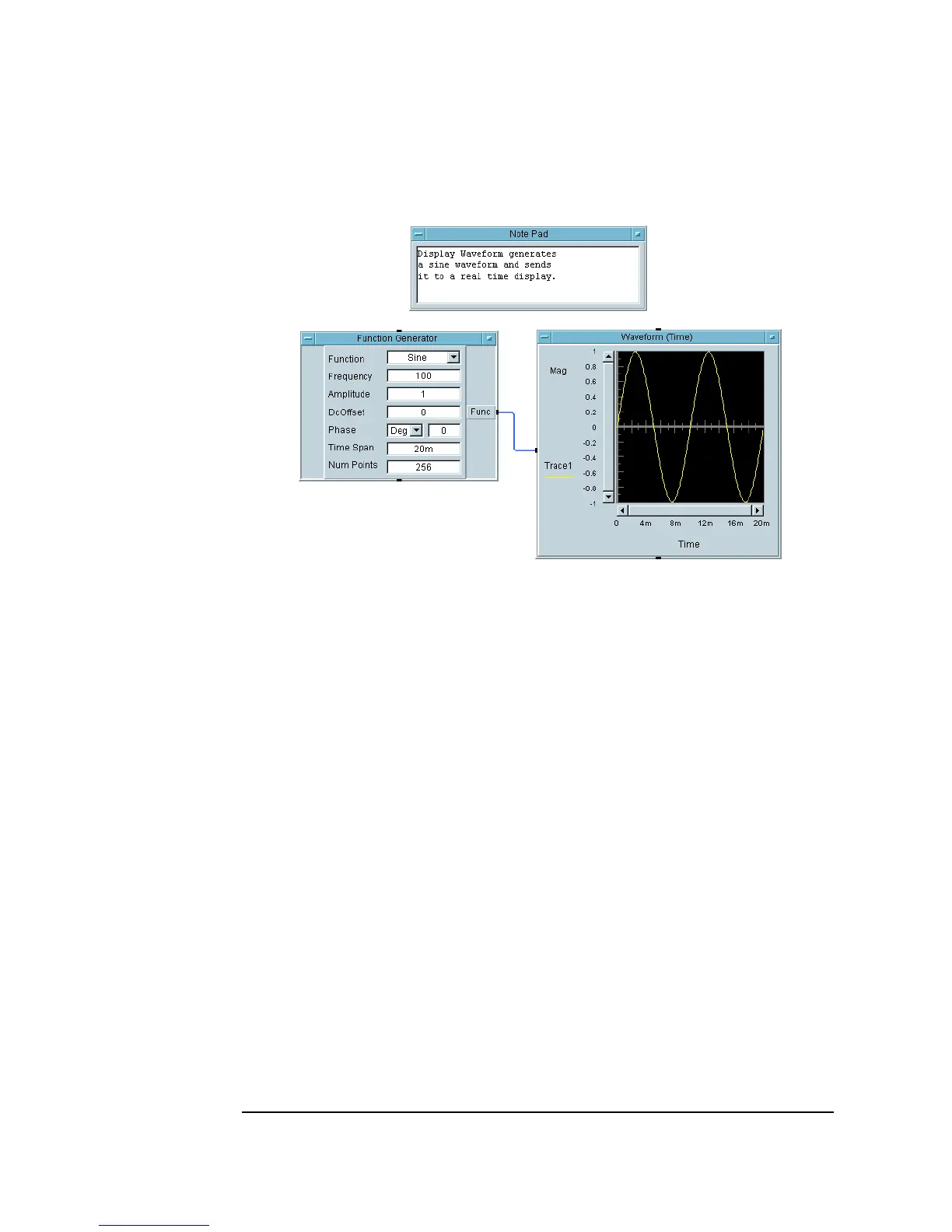

Figure 1-27. Changing the Function Field to Sine Wave
Some fields in dialog boxes do not have arrows. These are entry fields,
which become type-in fields when you click them. Just click a field and a
cursor appears. You can use standard keyboard and mouse editing
techniques to move the cursor and enter a desired value.
7. Click the
Frequency field to the right of the value 100, and while
holding the mouse button down, move the mouse to the left to highlight
the last
0, as shown in Figure 1-28.
