Chapter 2 105
Agilent VEE Programming Techniques
Debugging Programs in Agilent VEE
If you click on a data line, a dialog box appears with all the information
about the data on the line. For example, Figure 2-22 shows the dialog box
that appears when you click on the output of the
Function Generator.

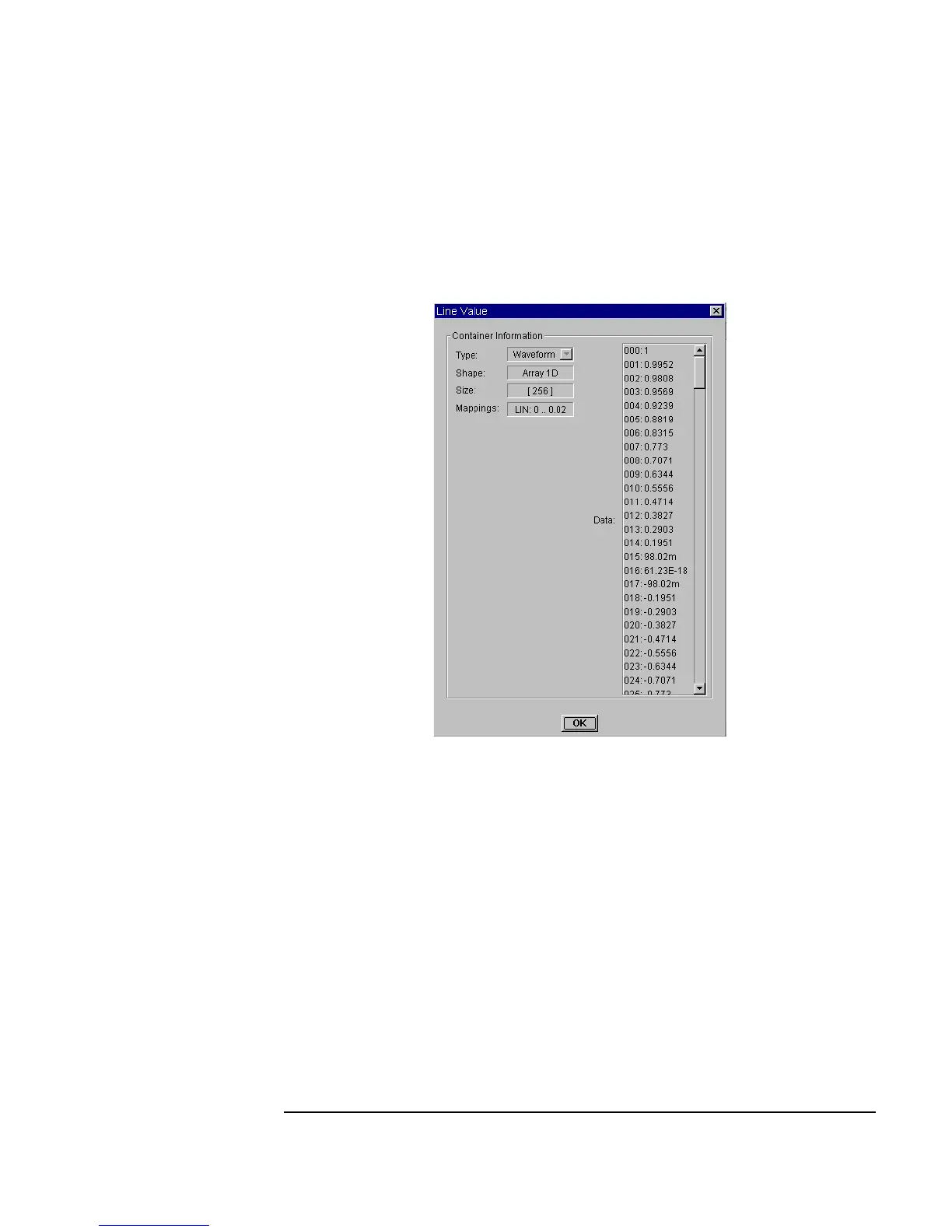

Figure 2-22. Displaying Information about a Line
Examining Terminals
To examine a terminal, double-click it in the open view as mentioned in
“Understanding Pins and Terminals” on page 46. If an object is iconized,
place the mouse pointer over the terminal, and VEE automatically pops up
the name of the terminal.
