314 Chapter 8
Using Agilent VEE Functions
Using Libraries With Agilent VEE UserFunctions

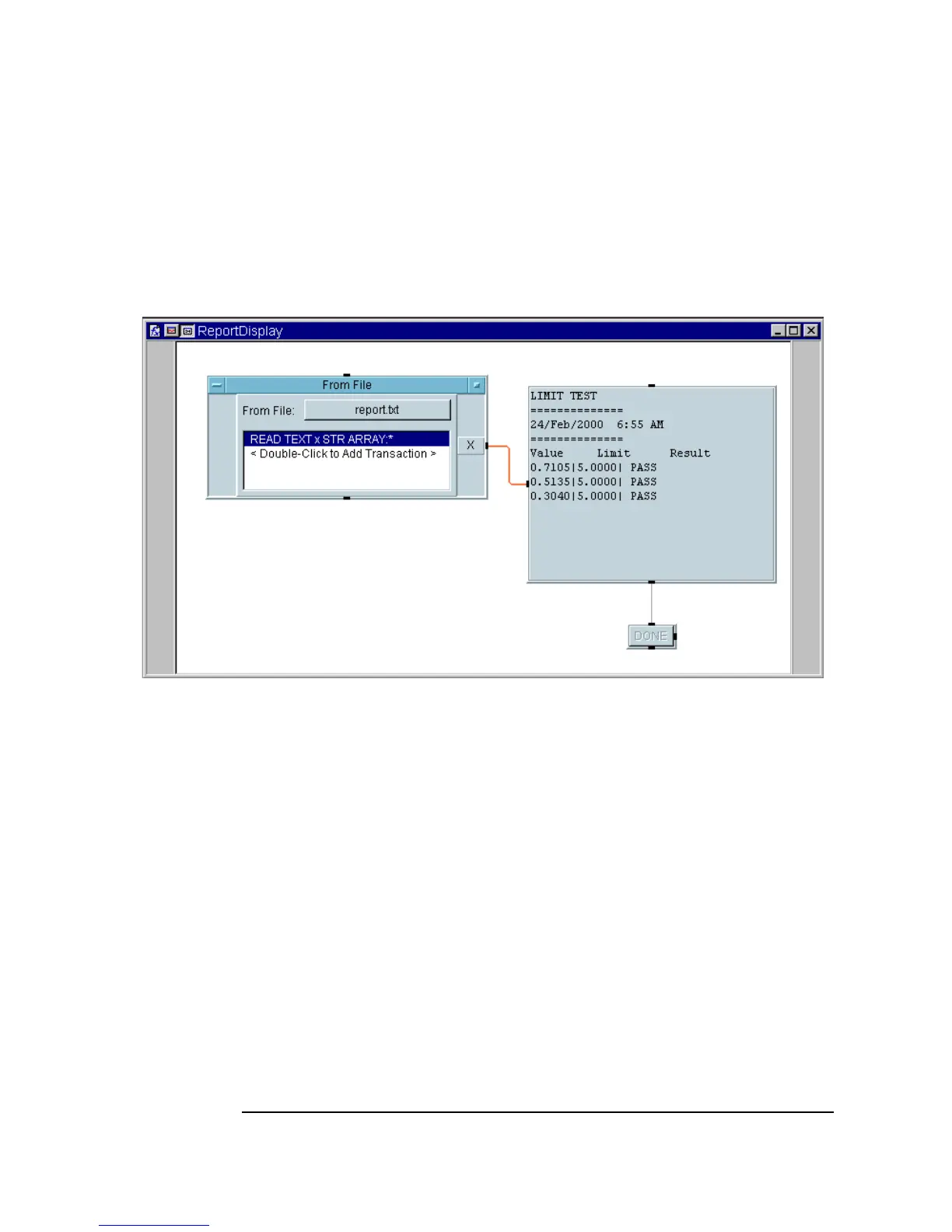

Figure 8-15 shows the ReportDisplay UserFunction in detail view.
Note that it reads a string array to the end of the file, specified by the asterisk
sign (
*) after the STR ARRAY format.
Figure 8-15. The ReportDisplay Detail View
Figure 8-16 shows the panel view of the ReportDisplay UserFunction
with
Show Panel on Execute selected in the Properties box. In the
Properties box, the Pop-up Panel Title has also been changed to
ReportDisplay. To create the panel, select the Confirm (OK) and
Logging AlphaNumeric objects, and click Edit ⇒ Add to Panel.
Note that the
Logging AlphaNumeric display has Show Title Bar
deselected. Note also that
Confirm (OK) button has been renamed DONE.
The
Confirm (OK) button is included to keep the display on the screen
until the user is done viewing it.
3. Run the program and the
ReportDisplay panel should pop up and
display the values as shown in Figure 8-16. Click on
DONE to complete
execution. Then save the program as
Report.vee.
