Using the Agilent VEE Development Environment
Understanding Pins and Terminals
Click the checkbox to turn Show Terminals OFF. Click the checkbox
again to turn
Show Terminals back on. Click OK after you have made a
selection.
Adding a Terminal
You can add terminals to an object. For example, you can add a second data
input terminal to the
Formula object.
1. Open the object menu and select
Add Terminal ⇒ Data Input.
-OR-
With
Show Terminals turned on, you can place the mouse pointer in
the “terminal area” (the left margin of the open view object) and press
Ctrl+A (press the Ctrl and A keys simultaneously).
Figure 1-21 shows the
Formula object menu open to add a data input
terminal, and another
Formula object that has a second terminal already
added. The new terminal is labeled
B. If the data inputs are tied to particular
functions, as with instrument drivers, you will be given a menu of these
functions. Otherwise, the terminals will be named
A, B, C... .

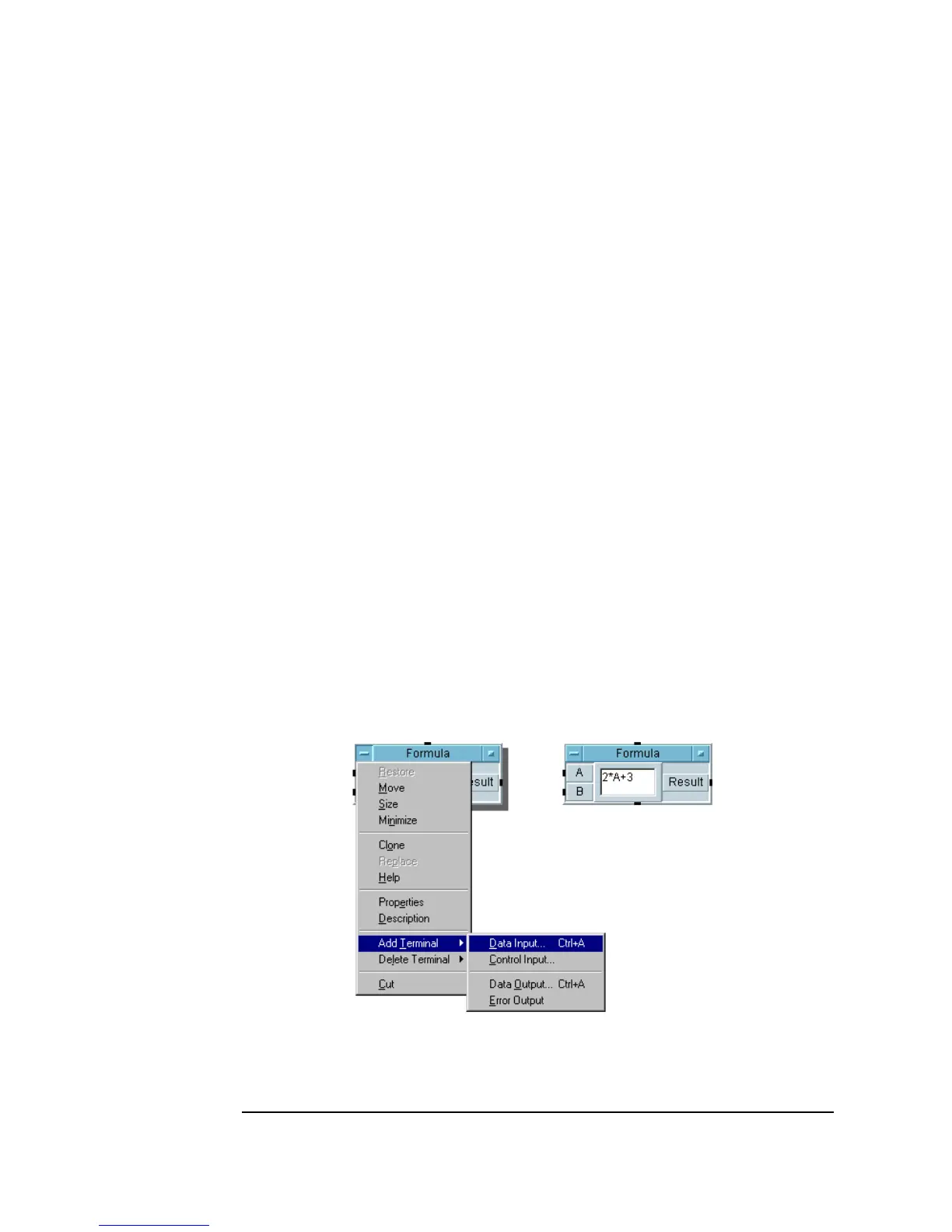

Figure 1-21. Adding a Terminal
