242 Chapter 5
Storing and Retrieving Test Results
Customizing a Simple Test Database
10.Connect the Formula sequence output pin to the From Data Set
sequence input pin. This ensures the right data from
Formula is being
used.
11.Create a box displaying instructions for the operator. Select
Display ⇒
Note Pad
. Change the title to Test Results Database
Instructions
. Click on the Note Pad input area and type: Select
the test results you want from the Test Menu.
12.Rename the
Record Constant object Test Results.
13.The program should look like Figure 5-18. Run the program a few times
to verify that it works. Since the
Test Menu object has AutoExecute
turned on, make a menu selection to run the program.

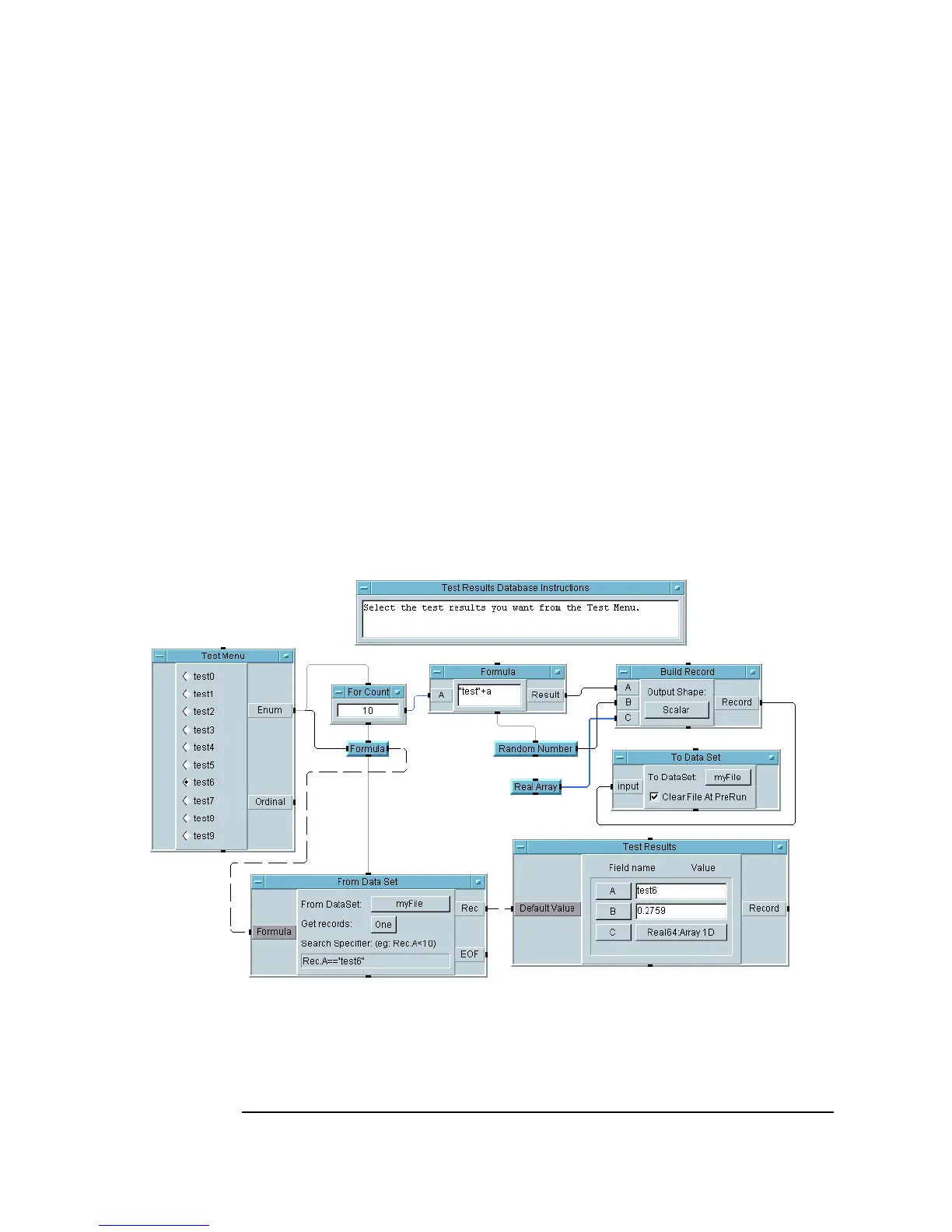

Figure 5-18. Adding a Menu to the Search Operation
Next, create the operator interface.
