420 Chapter 11
Optimizing Agilent VEE Programs
Using Dynamic Link Libraries

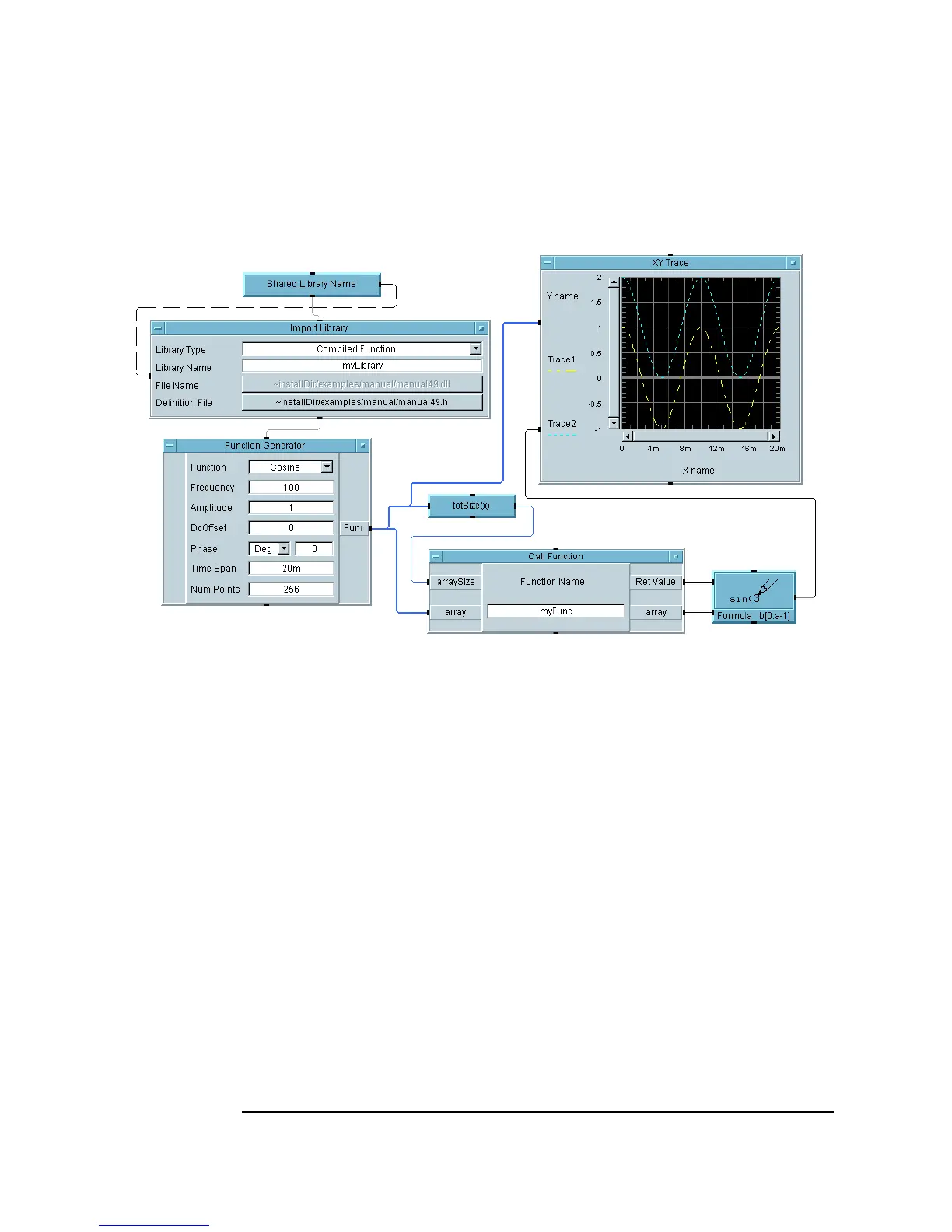

Figure 11-8. A Program Using a DLL (MANUAL49)
Import
Library
Before the first call to the compiled function Call
Function
, the DLL must be loaded using the Import
Library
object (in the Device menu).
Call
Function
MANUAL49 calls a compiled function called myFunc.
MyFunc requires a C datatype called long, which is the
same as a VEE
Int32. This number specifies the size of an
array. The second input parameter is a pointer to an array of
reals. The definition file is located in
MANUAL49.H, and the
source file for the C code is located in
MANUAL49.C.
MyFunc adds 1 to every element of the array.
Function
Generator
The
Function Generator is used to create a waveform,
which is output to the array pin on the
Call myFunc object.
