Chapter 9 341
Test Sequencing
Creating a Test Execution Order
.

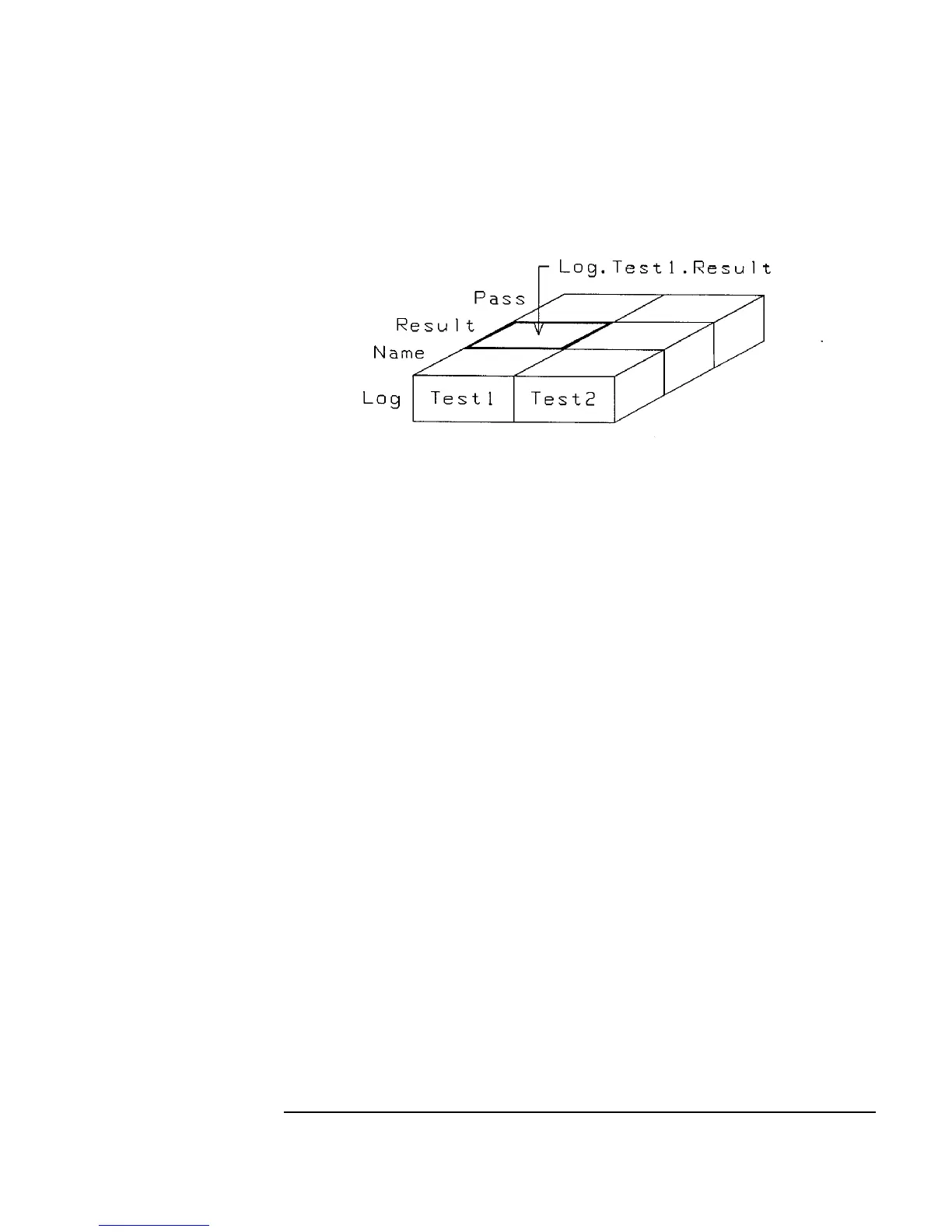

Figure 9-4. A Logged Record or Records
The following steps access test results.
1. Open
seq1.vee.
2. Select
Device ⇒ Formula and place it below the display. Change the
expression to
Log.Test1.Result. (Remember that VEE is not case
sensitive and the capitals in the names are for clarity in documentation.)
Change the input terminal name from
A to Log. (You could leave the
default name
A. The formula would then read A.Test1.Result.)
Connect the
Sequencer output terminal Log to the Formula input
terminal
Log.
3. Select
Display ⇒ AlphaNumeric display and connect it to the
Formula output.
4. Run the program and it should access the
Result field in Test1. Save
the program as
seq2.vee. The program should look like Figure 9-5.
