6. EM GUI orientation

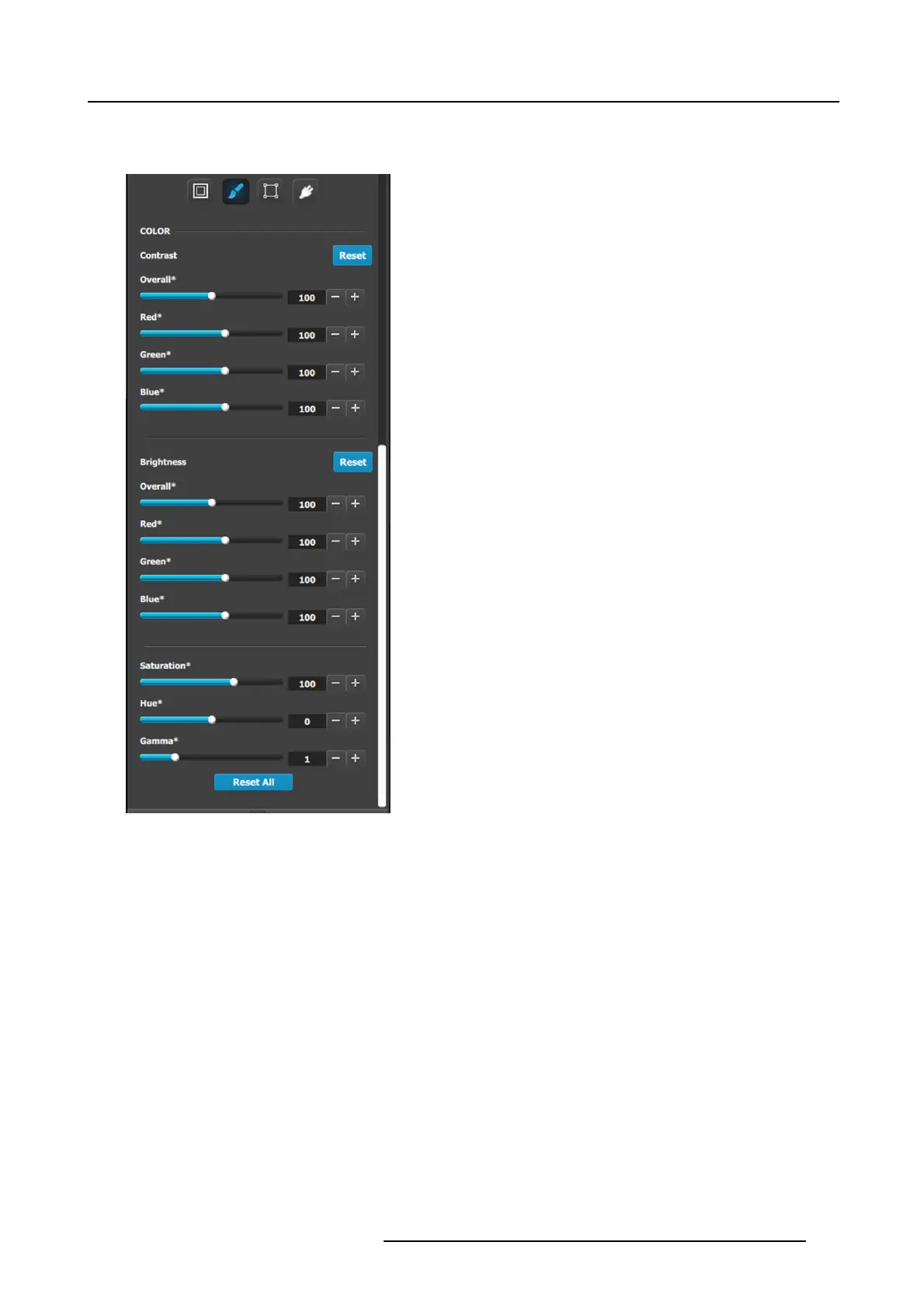

Output menu – Color submenu
The Output Effects Submenu adjusts color variable of the output image, such as contrast and brightness, saturation, hue and
gamma corrections.
• The RG B Contrast and Brightness settings are adjustable.
- The Overall adjustment has a range of 50 to 150.
- The individual Red/Green/Blue adjustments have a
range of 2 5 to 150.
- The default setting for all of these properties is 100.
• Saturation is adjustable within a range of 0 to 150. The
default setting is 100.
• Hue is adjustable within a range of –90 to +90 degrees.
The default setting is 0 degrees.
• Gamma is ad justable within a range of 0.31 to 3.29. The
default setting is 1.0.
• Reset A ll c hanges all values to their default settings.
R5905948 EVENT MASTER DEVICES 17/07/2017
133
