6. EM GUI orientation

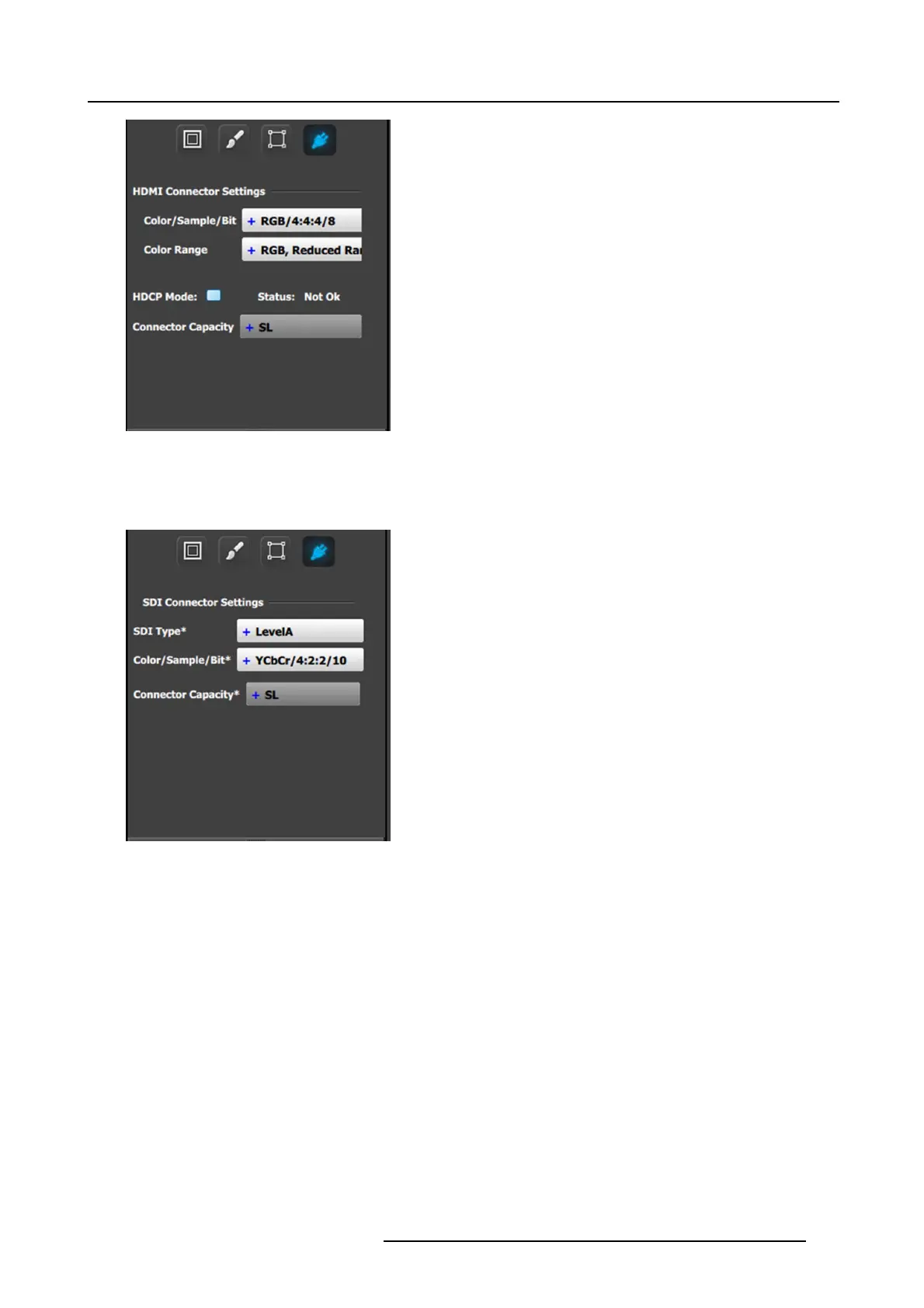

HDMI Connector subm enu
HDMI Connector submenu
• Color/Sample/Bit: Choices are:
– RGB/4:4:4/8 – YCbCr/4:4:4/8
– RGB/4:4:4/10 – YCbCr/4:4:4/10
– RGB/4:4:4/12 – YCbCr/4:4:4/12
– YCbCr/4:2:2/12
• Color Range: Choices ar e:
- RGB, Reduced Range (Values 16–235, television and
movies)
- RGB, Full Range (Values 0–255, computer m onitors)
- SMPTE , F ull Range
- SMPTE , Reduc ed R ange
• HDCP Mode: HDCP Mode enables the HDCP s etting for
the selected o utput. The default for HDMI outputs is Off.
To turn On the HDCP Mode, click on the em pty checkbox.
When the checkbox displays a check mark, HDCP Mode is
On. HD C P Mode is not applicable to SDI outputs.
• Connector Capacity: If the connector is not assigned to a
destination as above the capacity can be changed . Once
included in a Destination configuration this need s to be
managed thru the Adjust pane of the Des tination.
SDI C onnector submenu
SDI Connector submenu
• SDI Type (available with SDI connec tor type): allows a
choice between HD (1.5Gb), 3G ( 3Gb), Level A, Level B,
Level A 2SI, or Level B 2SI.
The S DI Type options vary, depending on the format of the
Outputs. For e xamp le, for:
- NTSC/PAL— the SDI Type can be only SD.
- 1080i or 1080p, w ith a refresh rate less than or equ al to
30 Hz—the SDI Type can be only HD.
- 1080p, with a refresh rate greater than 30 Hz—the SDI
Type can be:
o
Level A (d efault)
o
Level B
o
Level A 2SI
o
Level B 2SI
The 2SI options are available only if t he Input/Output con-
figuration has 4 SDI connectors from the same card, and
the Output format is either 1920 x 1080 or 2048 x 1080.
• Color/Sample/Bit: Adjusts the color space (YCbC r),
sampling rate (4:2:2) and bit depth (10) of the output signal.
• Connector Capacity: If the connector is not assigned to a
destination as above the capacity can be changed . Once
included in a Destination configuration this need s to be
managed thru the Adjust pane of the Des tination.
Wide (screen) menu
In this menu, the user can ad just the data-doubling and fea
thering parameters necessary to setup a wide blended screen. These
actions can be performed simultaneously on all screens by clicking the “Select All” button. The data-doubling parameters can be
adjusted in either Basic Mode or E xpert M ode.
R5905948 EVENT MASTER DEVICES 17/07/2017
135
