6. EM GUI orientation
If the E2 unit is cabled to an EX unit or a pair of daisy-chained EX units, the EX unit appears as a grayed-out box below the E2
unit in the Diagram area. In the grayed-out EX box a blue button allows you to a dd the E X to the system as a slave.
4. Drop the S3–4K in the GUI.
You will be presented the option to add as a new system, add as a master, or add as a slave. An S3–4K can be added as a
Master or Slave to an E2.
5. Add the S3–4K as a s lave.
6. (Optional) At this point it is suggested that you select and name appropriately each unit so that you can identify it in your setup.
7. Click the blue add button to add the first E X unit.
If the EX is daisy-chained to another EX unit, you must a dd the first E X in the chain before the second EX in the chain is displayed,
then repeat step 7 to add the second EX in the chain.
8. Click the blue add button to add the s econd EX unit.
If the EX is daisy-chained to another EX unit, you must a dd the first E X in the chain before the second EX in the chain is displayed,
then repeat step 7 to add the second EX in the chain.
HowtoLinkanS3-4KUnitandanEXUnitwithtwoVPUcards
To add up to 16 Single or two 4K M ixing Layers to a system, an S3-4K Unit can be linked to an EX Unit with two V PU cards. Each
S3–4K has a single Link card in s lot 1, identified by a yellow stripe at the top. E ach E X has two Link sockets. Make sure to use the
locking mechanism an d then push each cable until it locks in place.
Connect the Link cables provided with each unit between the Link connectors as follows:
• S3 VP ID 0, Link Card slot 1, Link 1 >> EX VP ID 1, Link 2
• S3 VP ID 0, Link Card slot 1, Link 2 >> EX VP ID 1, Link 1
When an EX unit has VP U card s rather than a com bination of Input and O utput cards, an d it is connected to
an S 3–4K p rocesso r, the EX unit an no longer be d aisy-chained to another EX unit; both Link connectors on
the EX un it must be connected to t he S 3–4K Master unit.

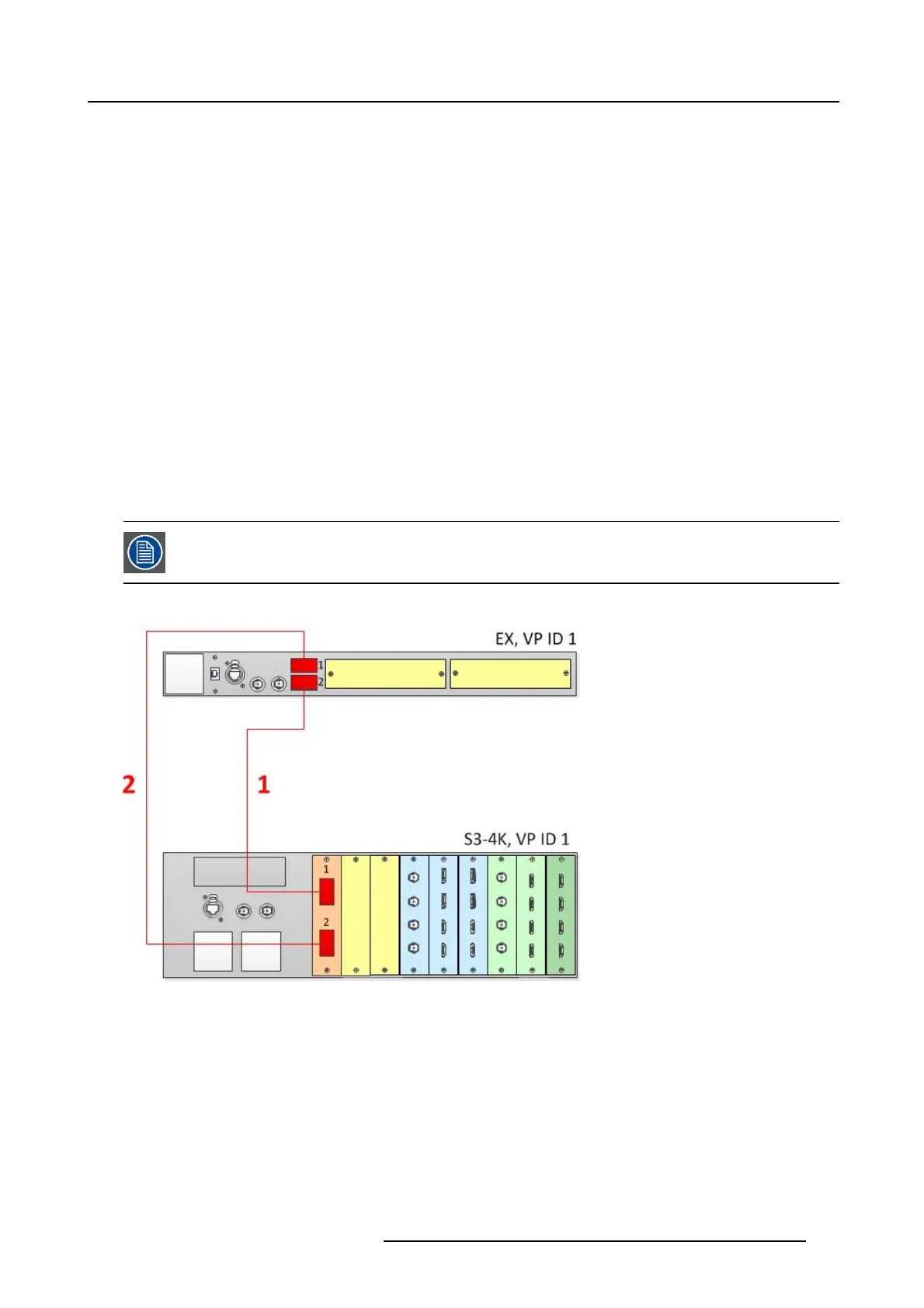

See image 6-34 for an example o f the c abling between an S3-4K unit and an EX unit with two VPU cards.
Image 6-34
Cabling between an S3–4K unit and an EX unit with two VPN cards
Event Master Configuration
1. Start the Event M aster Toolset version 4.2 or higher.
2. Make sure that both the S3–4K and the EX units are discovered on the network and that they have d ifferent Unit IDs.
3. Drop the S3–4K in the GUI.
If the S3 –4K unit is cabled to the EX unit, the EX unit appears as a grayed-out box below the S3–4K unit in the Diagram area. In
the grayed-out EX box a blue button allows y ou to add the EX to the system as a slave.
4. Click the blue add button to add the EX unit.
5. (Optional) At this point it is suggested that you select and name appropriately each unit so that you can identify it in your setup.
R5905948 EVENT MASTER DEVICES 17/07/2017
145
