6. EM GUI orientation
Sources are displayed without their associated Inputs.

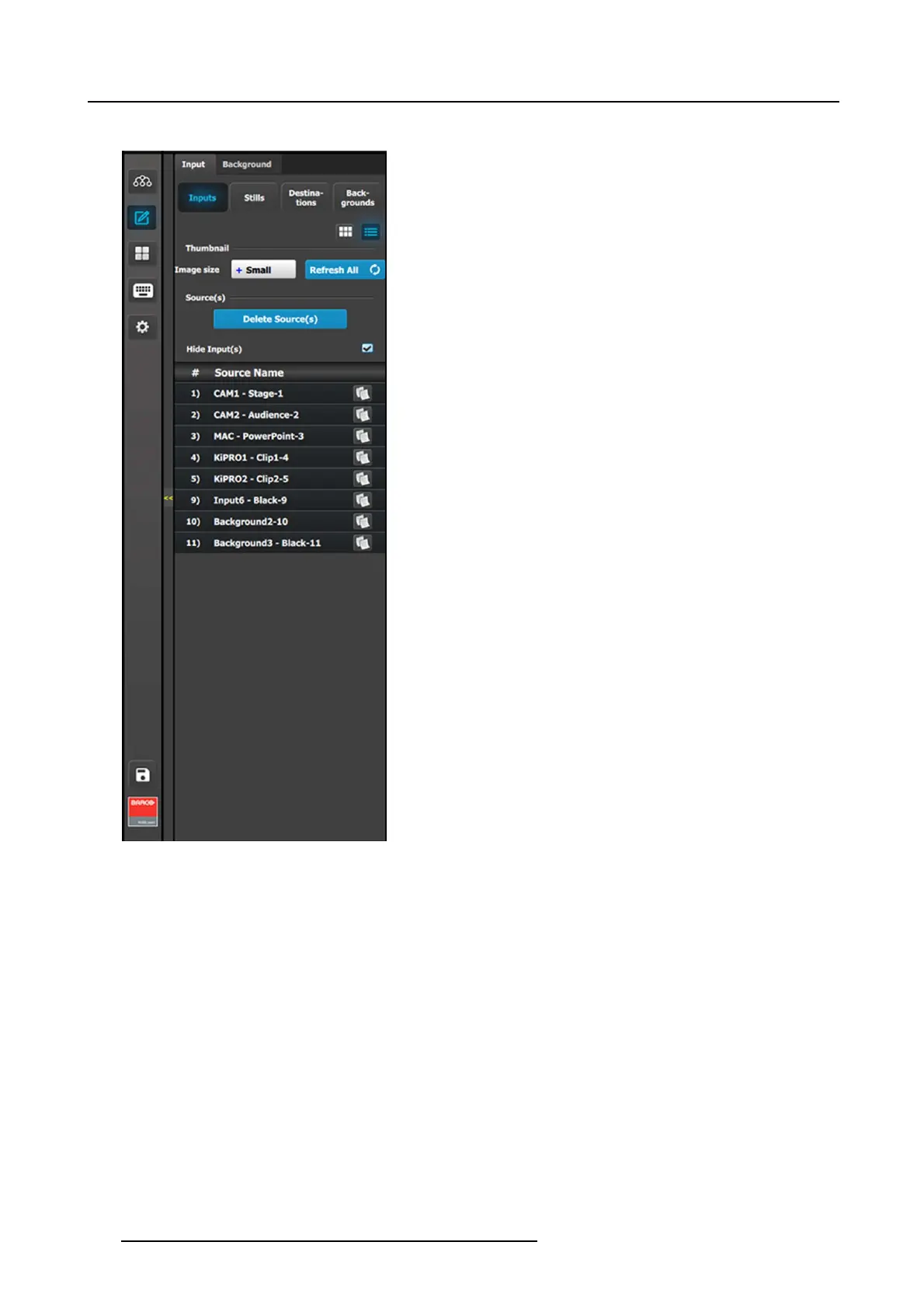

Image 6-42
Hide Input(s) checkbox
Background
In this menu, B ackgrounds definedintheConfiguration m enu are as signed to destinations via drag an d d rop procedure.
Backgrounds and Destinations need to have the same resolution without the Destinations eventual blend overlap. For example, if a
background is defined as an input w ith 3840 x 1080, then the de stination must also have the total resolution of 3840 x 1080.
158
R5905948 EVENT MASTER DEVICES 17/07/2017
