Barco S3 User Manual

9. General operation example

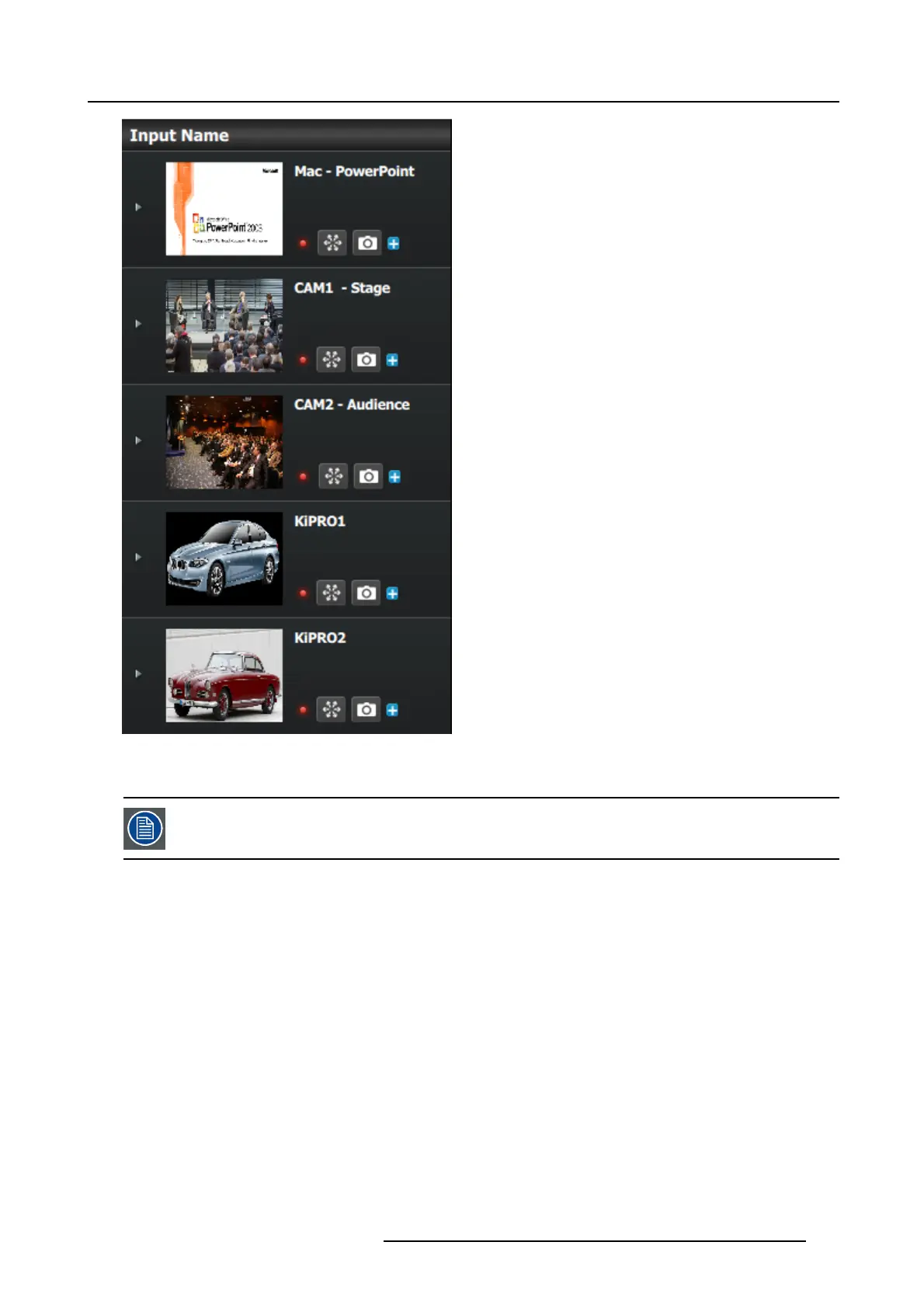

Image 9-15
P3: Created Additional Sources from Inputs
As noted previously, a source is generated autom atically for each input. F or this application, o nly one so urce
will be used for each inpu t, so no additional sources need to be created. Therefore, in this exam ple this step
will be skipped.
P4: Drop Backgrounds into Scree
n Destinations
1. On top click on the Main Screen tab to only view the Main Screen.
2. Select th e Background tab from the top left side and drop it into the preview layer.
R5905948 EVENT MASTER DEVICES 17/07/2017
273
