EZ-USB FX3 Technical Reference Manual, Document Number: 001-76074 Rev. *F 142
General Programmable Interface II (GPIF II)

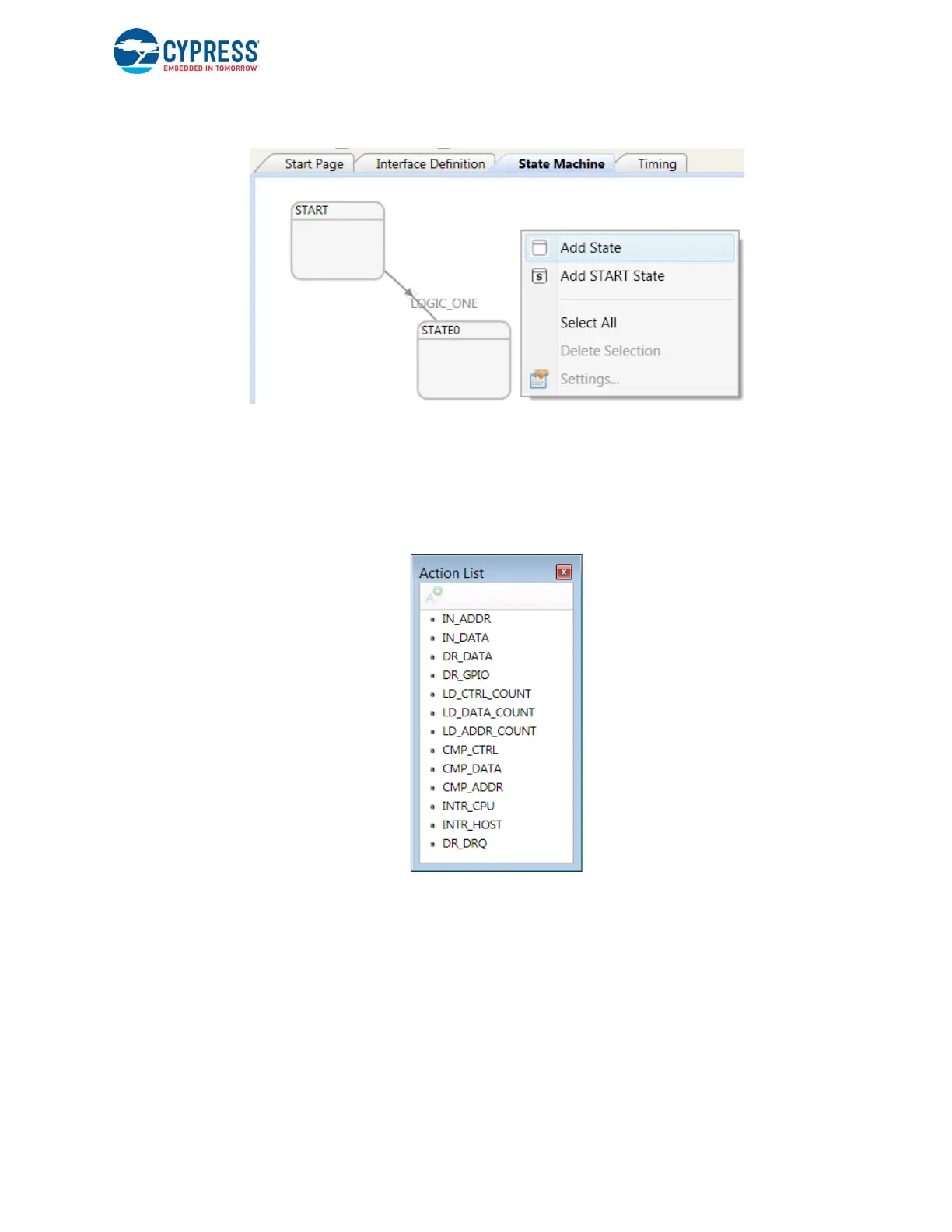

Figure 7-22. GPIF II Designer (Adding a State)
7.6.2 Add Actions to a State
To add an action to a state, select the state by clicking the mouse inside the state graphic. Right-click the action that you want
to add from the Action List window. Select Add to Selected State from the menu. You can also open the Action List window by
choosing View > Action List. The list of actions is shown in the figure below.
Figure 7-23. GPIF II Designer (Adding Actions to a State)
7.6.3 Draw Transitions Between Actions
Position the mouse cursor inside the source state, from which the transition will originate. The cursor changes its shape to “+.”
Press the left mouse button, drag the mouse cursor to the destination state, and release it. The result of this step is shown in
the figure below.
