DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
153

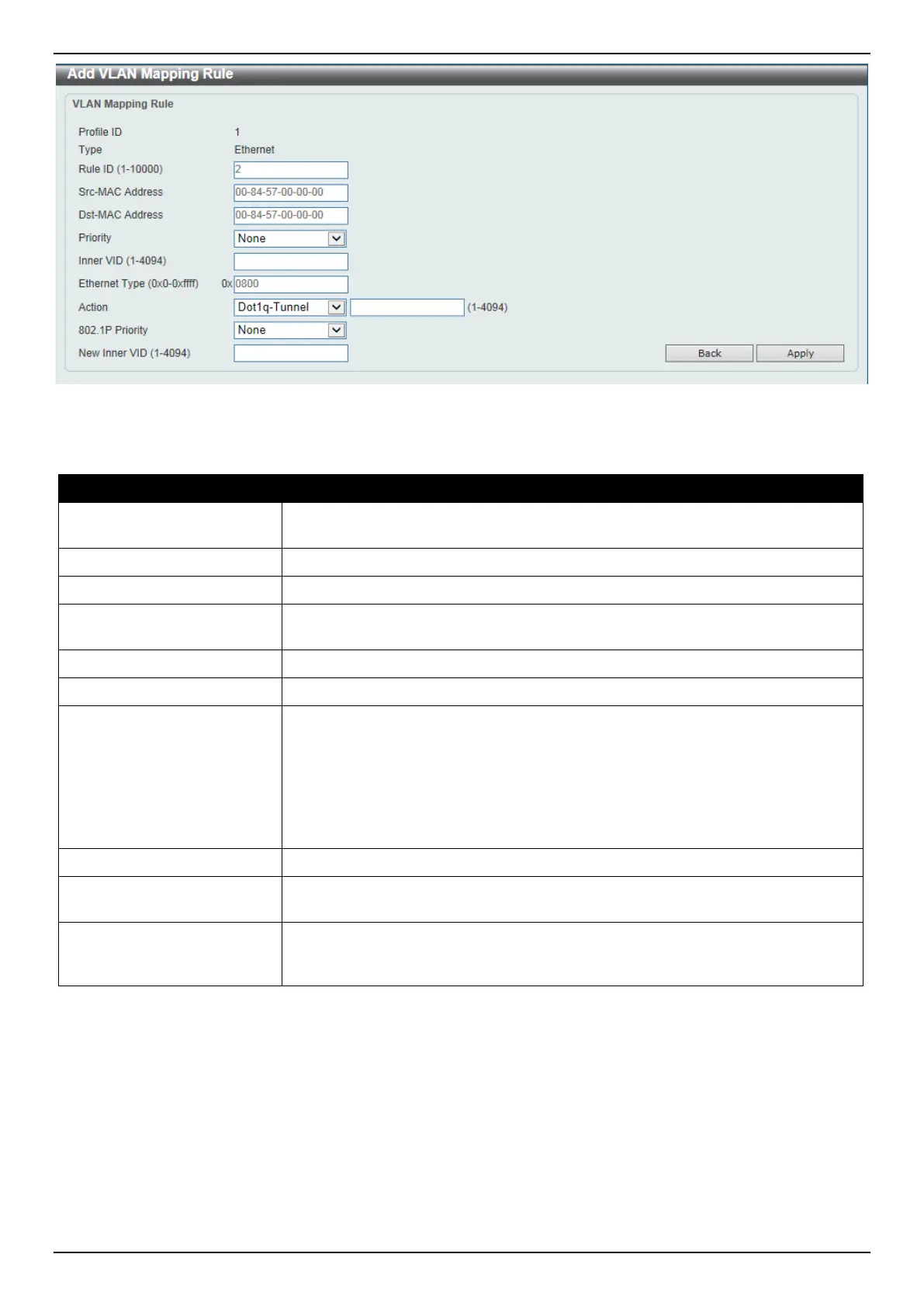

Figure 5-46 VLAN Mapping Profile (Ethernet, Add Rule) Window
The fields that can be configured are described below:
Parameter Description
Rule ID
Enter the VLAN mapping rule ID here. If not specified, the rule ID begins from 10
and is incremented by 10 for every new rule. The range is from 1 to 10000.
Src-MAC Address
Enter the source MAC address here.
Dst-MAC Address
Enter the destination MAC address here.
Priority
Select the 802.1p priority value here. The range is from 0 to 7. A lower value has
a higher priority.
Inner VID
Enter the inner VLAN ID here. The range is from 1 to 4094.
Ethernet Type
Enter the Ethernet type value here. The range is from 0x0 to 0xFFFF.
Action
Select the action that will be taken here. Options to choose from are Dot1q-
Tunnel and Translate.
• Dot1q-Tunnel - Specifies that the outer-VID will be added for matched
packets.
• Translate - Specifies that the outer-VID will replace the outer-VID of the
matched packets.
New Outer VID
Enter the new outer VLAN ID here. The range is from 1 to 4094.
802.1P Priority
Select the 802.1p priority value here. The range is from 0 to 7. A lower value has
a higher priority.
New Inner VID
After selecting Dot1q-Tunnel as the action, enter the new inner VLAN ID here.
The range is from 1 to 4094. This option is only available when Dot1q-Tunnel is
selected as the action.
Click the Back button to return to the previous window.
Click the Apply button to accept the changes made.
After clicking the Add Rule button next to an IP type profile, the following page will appear.
