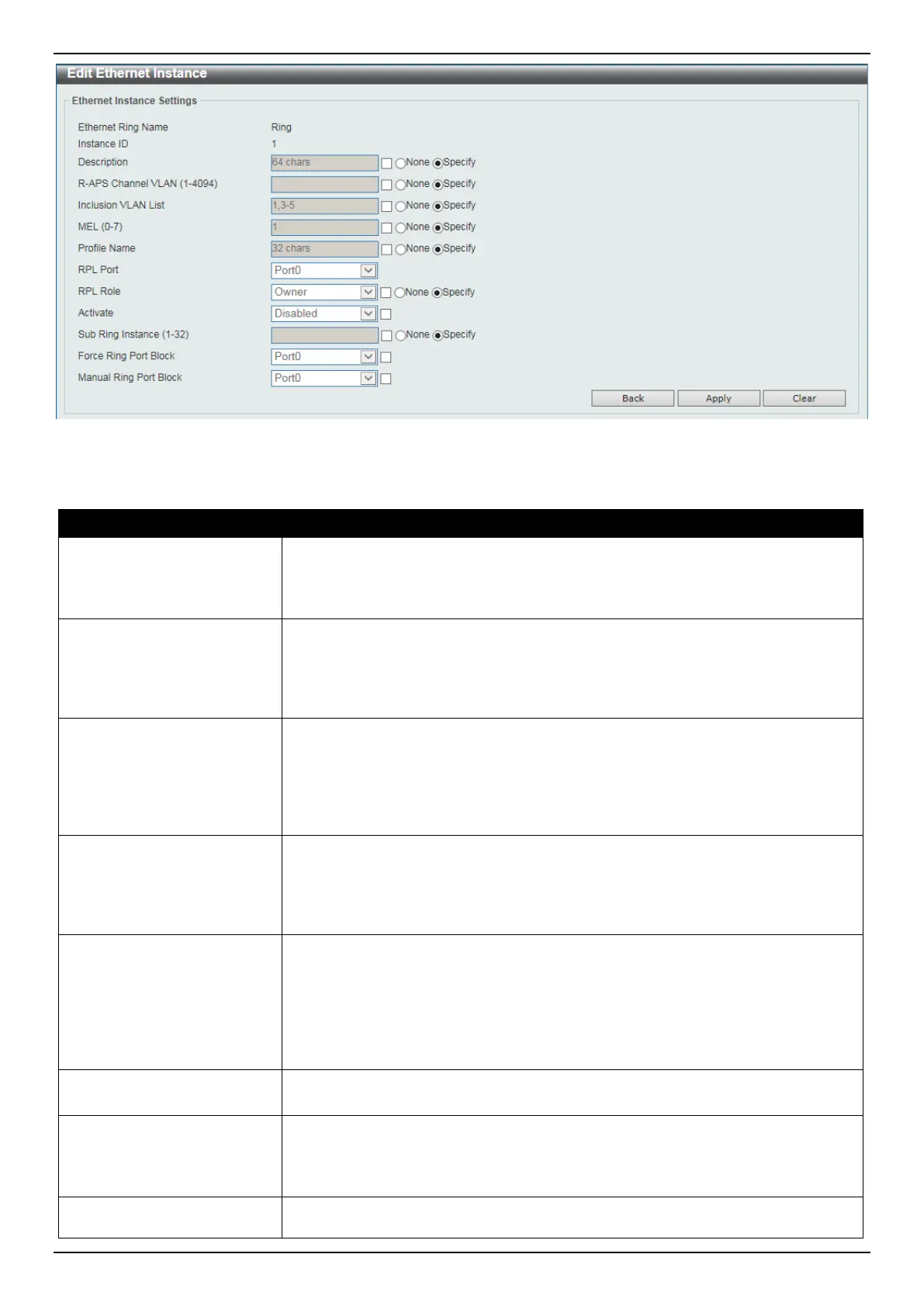

Figure 5-59 ERPS (ERPS Brief, Edit Instance) Window
The fields that can be configured are described below:
Parameter Description
Description
Select the checkbox and enter the ERP instance description here. This
description can be up to 64 characters long. Select the Specify radio button to
configure this parameter as normal. Select the None radio button to revert this
parameter to the default setting.
R-APS Channel VLAN
Select the checkbox and enter the R-APS channel VLAN ID for the ERP instance
here. The APS channel VLAN of a sub-ring instance is also the virtual channel of
the sub-ring. This value must be between 1 and 4094. Select the Specify radio
button to configure this parameter as per normal. Select the None radio button to
revert this parameter to the default setting.
Inclusion VLAN List
Select the checkbox and enter the inclusion VLAN list here. A range is identified
when a hyphen (-) is used. For example VLANs 1 to 5 can be entered as 1-5. A
list is identified when commas (,) are used. For example, use VLANs 1,3,5. The
VLANs specified here will be protected by the ERP mechanism. Select the
Specify radio button to configure this parameter as normal. Select the None radio
button to revert this parameter to the default setting.
MEL
Select the checkbox and enter the ring MEL value of the ERP instance here. This
value must be between 0 and 7. The configured MEL value of all ring nodes that
participate in the same ERP instance should be identical. Select the Specify radio
button to configure this parameter as normal. Select the None radio button to
revert this parameter to the default setting.
Profile Name
Select the checkbox and enter the G.8032 profile name here that will be
associated with this ERP instance. Multiple ERP instances can be associated with
the same G.8032 profile. The instances associated with the same profile protect
the same set of VLANs, or the VLANs protected by one instance are a subset of
LANs protected by another instance. This name can be up to 32 characters long.
Select the Specify radio button to configure this parameter as normal. Select the
None radio button to revert this parameter to the default setting.
RPL Port
Select the checkbox and then select the RPL port option here. Options to choose
from are Port0 and Port1. The option selected will be configured as the RPL port.
RPL Role
Select the checkbox and then select whether this node is the RPL owner or
neighbor. Options to choose from are Owner and Neighbor. Select the Specify
radio button to configure this parameter as normal. Select the None radio button
to revert this parameter to the default setting.
Activate
Select the checkbox and then select whether or not to active this ERP instance.
Options to choose from are Enabled and Disabled. Enabling this option will
