Parameter Description
VID
Enter a VLAN ID between 1 and 4094.
Configuration
Select the port configuration. Options to choose from are Port, Forbidden Port,
and Learn PIMv6.
• Port - Select to have the configured ports as being connected to multicast-
enabled routers.
• Forbidden Port - Select to have the configured ports as being not connected
to multicast-enabled routers.
• Learn PIMv6 - Select to enable dynamic learning of multicast router port.
Unit
Select the Switch unit that will be used for this configuration here.
From Port - To Port
Select the appropriate port range used for the configuration here.
Click the Apply button to accept the changes made.
Click the Delete button to remove the specified entry.
The fields that can be configured in MLD Snooping Mrouter Table are described below:
Parameter Description
VID
Enter a VLAN ID between 1 and 4094.
Click the Find button to locate a specific entry based on the information entered.
Click the Show All button to view all the entries.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
MLD Snooping Statistics Settings
This window is used to view and clear the MLD snooping related statistics.
To view the following window, click L2 Features > L2 Multicast Control > MLD Snooping > MLD Snooping
Statistics Settings, as shown below:

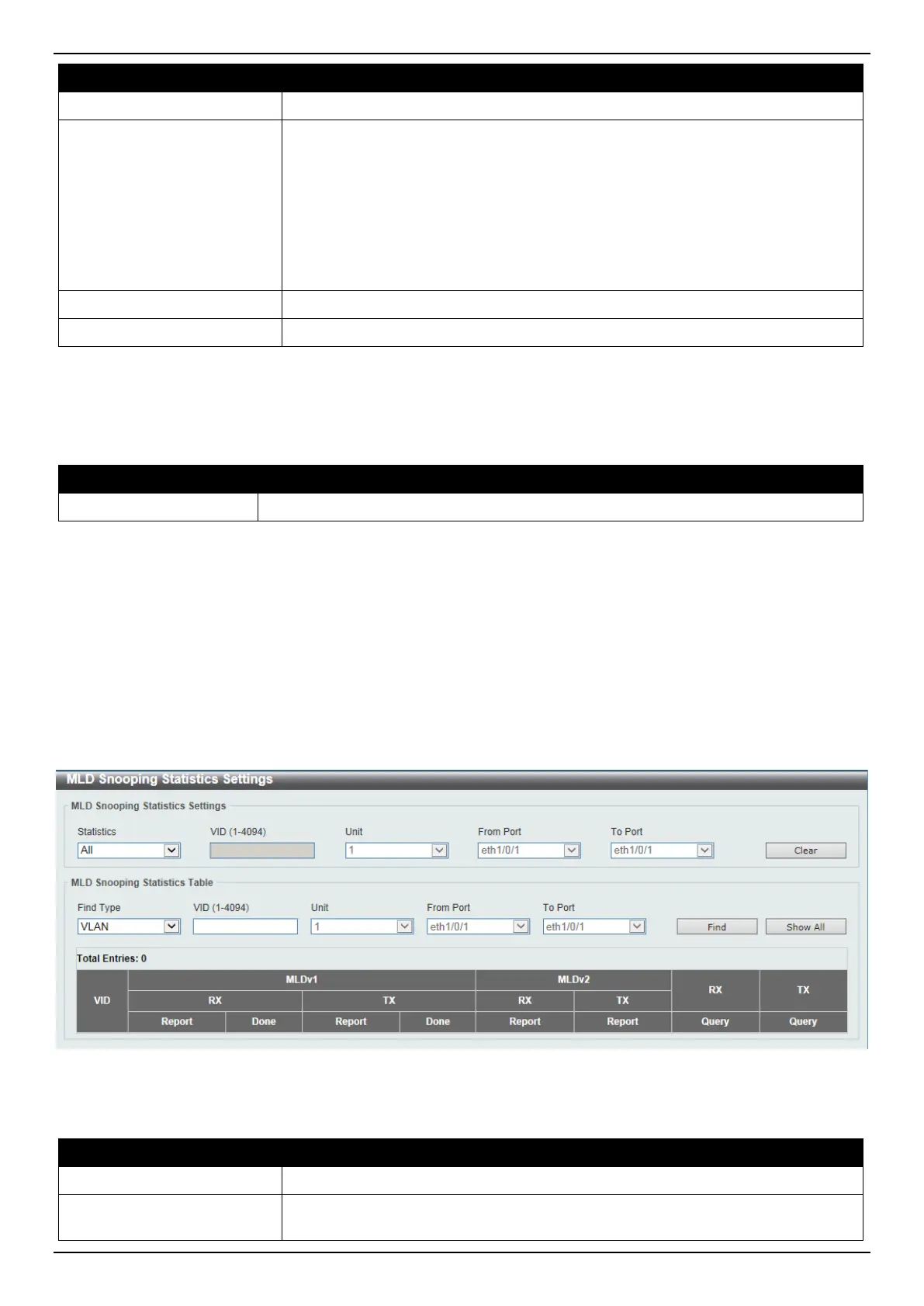

Figure 5-87 MLD Snooping Statistics Settings Window
The fields that can be configured in MLD Snooping Statistics Settings are described below:
Parameter Description
Statistics
Select the interface here. Options to choose from are All, VLAN, and Port.
VID
Enter a VLAN ID between 1 and 4094. This is available when VLAN is selected in
the Statistics drop-down list.
