DGS-3630 Series Layer 3 Stackable Managed Switch Web UI Reference Guide
256

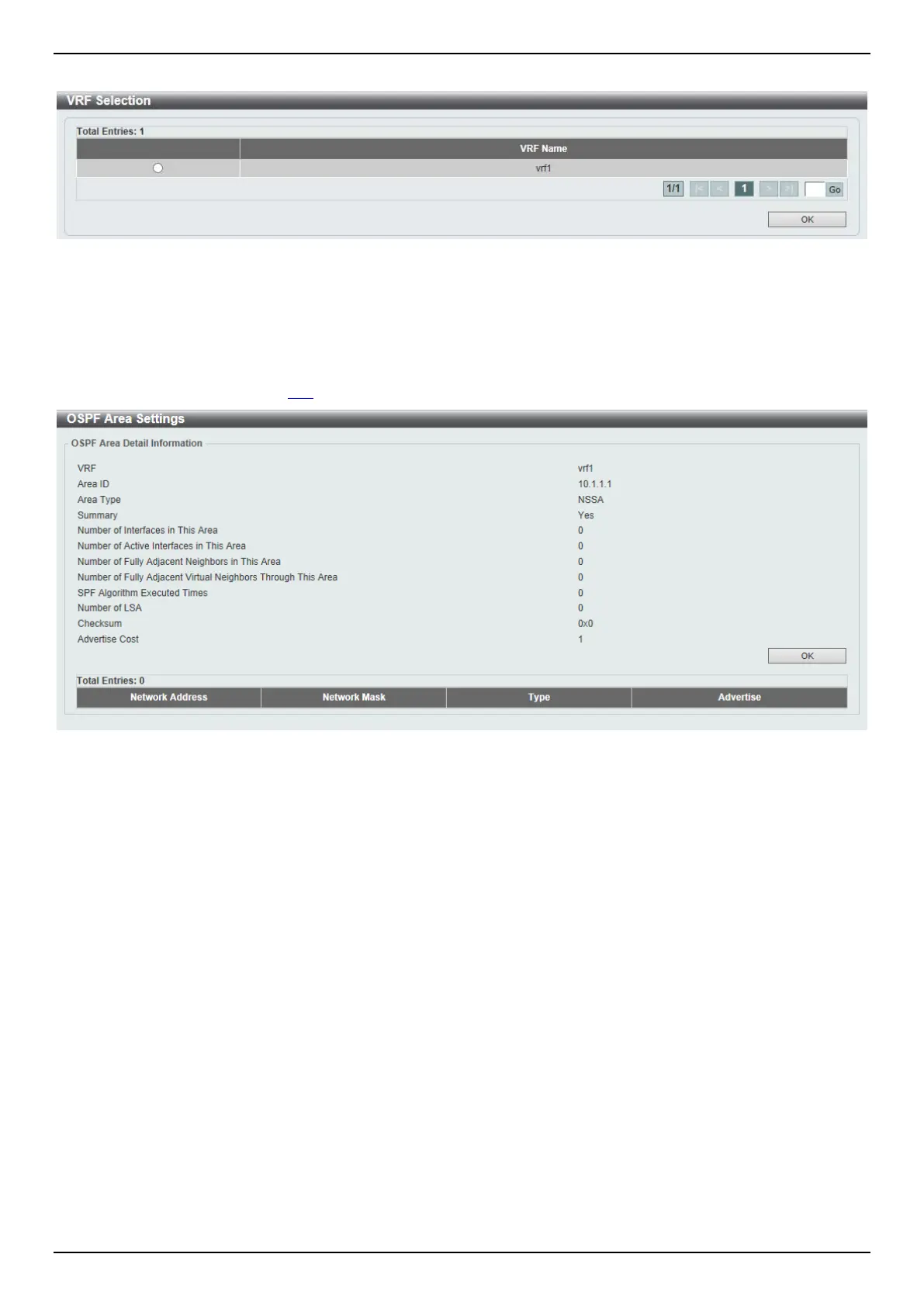

After clicking the Select VRF button, the following page will appear.
Figure 6-59 OSPFv2 Area Settings (Select VRF) Window
Select the VRF entry and click the OK button to use the selected VRF entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
After clicking the VRF Name link (vrf1), the following page will appear.
Figure 6-60 OSPFv2 Area Settings (VRF Name) Window
Click the OK button to close the window.
OSPFv2 Interface Settings
This window is used to display and configure the OSPFv2 interface settings.
To view the following window, click L3 Features > OSPF > OSPFv2 > OSPFv2 Interface Settings, as shown below:
