REP 1.11 Downstream Side Frame Cover Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Downstream Side Frame
Cover
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do GP 6.4 to undock the Punch from the upstream and downstream
equipment.
4. Remove the (2) screws and Docking plate off the Side cover you are
uninstalling.

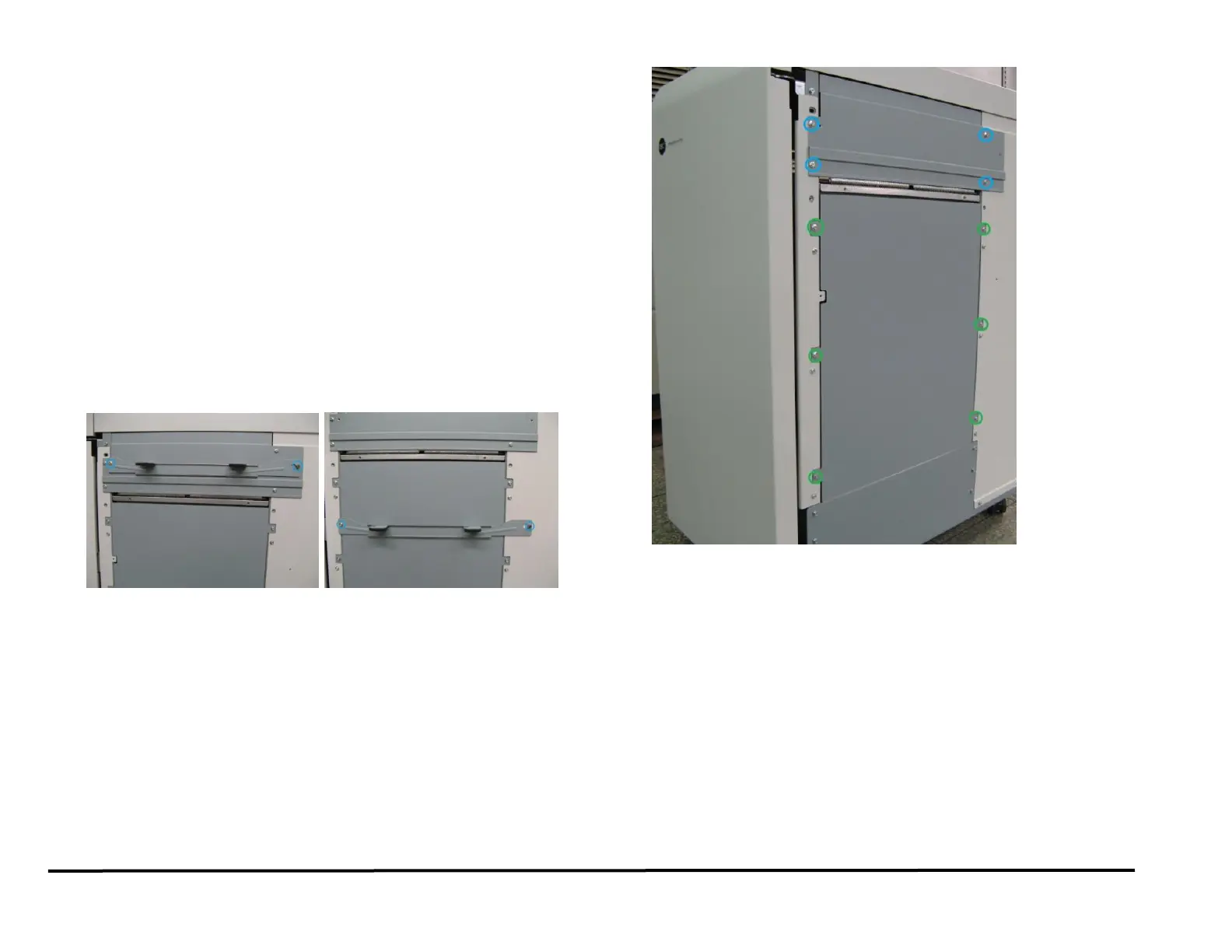

5. To remove the Upper downstream side frame cover, remove (4)
screws (shown in blue).
6. To remove the Lower downstream side frame cover, remove (6)
screws (shown in green).
7. Remove the Downstream Side Frame Cover.
Installation Procedure
1. Place the Downstream Side Frame Cover in position.
2. Tighten the Screws (4) on the exit side.
3. Do GP 6.3 to dock the Punch to the upstream and downstream
equipment.
4. Connect the Power Cord.
5. Power ON the entire printing system.
