Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-10
REP 1.9 Downstream Front Side Cover Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Downstream Front Side
Cover.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do GP 6.4 to undock the Punch from the upstream and downstream
equipment.
4. Remove the Screws (4).
5. Remove the Downstream Front Side Cover.
Installation Procedure
1. Place the Downstream Front Side Cover in position.
2. Tighten the Screws (4).
3. Do GP 6.3 to dock the Punch to the upstream and downstream
equipment.
4. Connect the Power Cord.
5. Power ON the entire printing system.

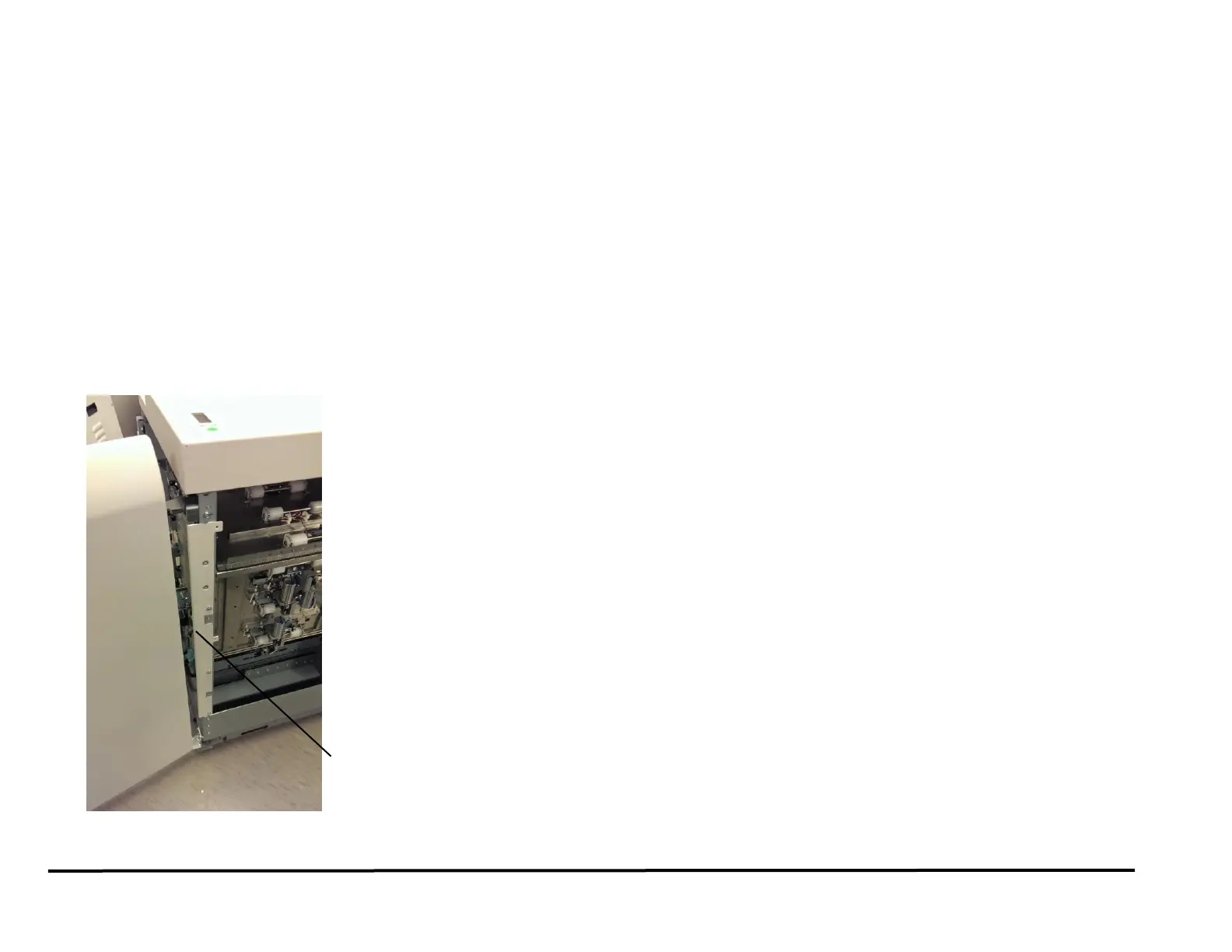

Downstream Front
Side Cover
To Next Page
