GBC AdvancedPunch Pro - 4.4. Paper Path- Exit Idler Panel

GBC AdvancedPunch Pro 09-11-2018 Parts List
5-17

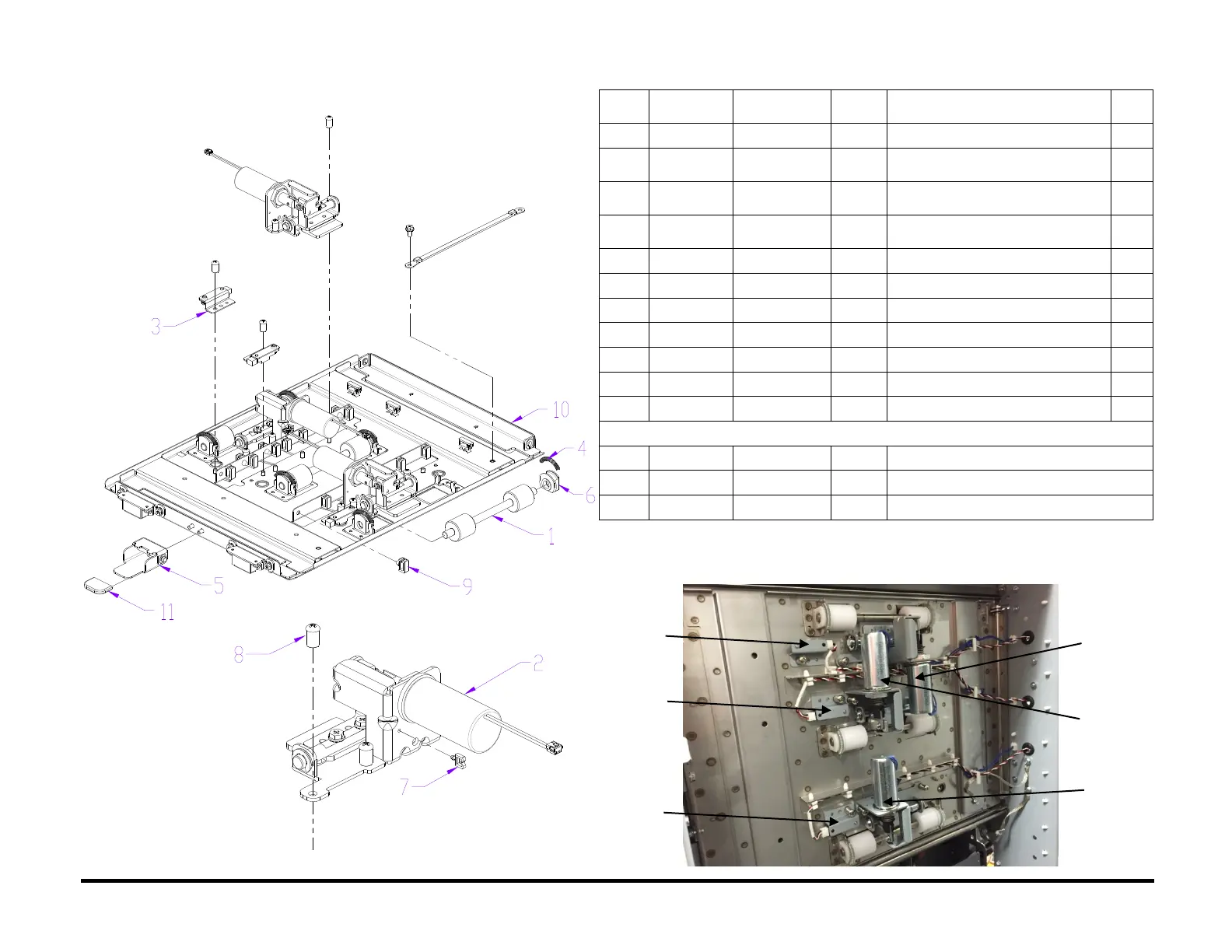

PL 4.4. Paper Path- Exit Idler Panel
ITEM
GBC Part
#
Xerox Part
#
DESCRIPTION
QTY
1
7715103
022N02806
ROLLER ASSY, IDLER
3
2
PL 4.6
SOL6
SOL7
SOL8
MODULE,SOLENOID,
DISENGAGING ROLLER
3
3
7715291
130N01762
S22
S23
S24
SENSOR AND BRACKET ASSY
3
4
7715380
F
009N01702
F
SPRING,TRANSPORT IDLER
ROLLERS
6
5
7715384
003N01111
HANDLE ASSY,IDLER PANEL
1
6
7715382
013N13947
BEARING HOUSING ASSY
6
7
7715625
E
072N00038
E
WIRE SADDLE, SHORT
3
8
7715629
B
026N00813
B
SCREW,BARREL,M4
12
9
7715639
E
072N00041
E
WIRE SADDLE,SIDE OPEN
8
10
7715854
002N03199
PANEL WLDMNT,IDLER,EXIT
1
11
7708163
021N02267
CAP, RUBBER
1
Parts identified above with superscripts are part of Hardware kits.
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
E
7715977
600N03436
KIT, HARDWARE, WIRE CLAMPS
F
7715978
600N03437
KIT, HARDWARE, SPRINGS
S23
SOL 6
SOL 8
SOL 7
S24
S22
