GBC AdvancedPunch Pro - GP 6.23 Alignment Carriage Rails Cleaning

GBC AdvancedPunch Pro 09/11/2018 General Procedures and Information
6-75
GP 6.23 Alignment Carriage Rails Cleaning
Do this procedure to clean the Alignment Carriage Rails.
Preventative Maintenance:
Do this every 500K cycles.
Procedure
1. Do REP 3.1.1 to remove the Punch Module

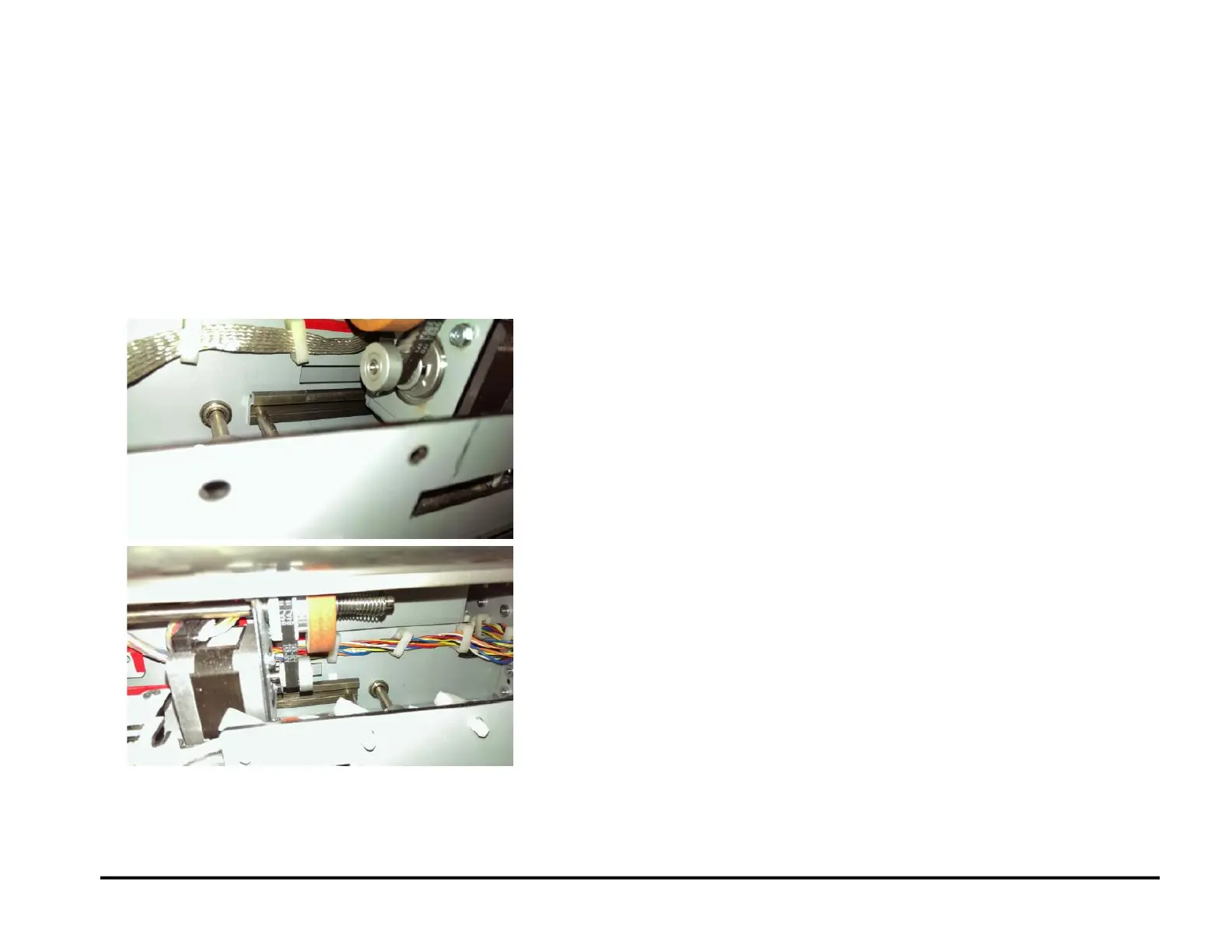

2. Use a can of compressed air to remove dust from the alignment
carriage rails. The carriage can be moved back and forth on the rails
to clean the entire surface. Alternately, a soft cloth and alcohol can be
used.
Important Note: DO NOT use any lubricant on the rail.
3. Once the rails are cleaned, check the motion of Alignment carriage
(PL 5.3) on the rails. It should move when a force less than 2kgf is
applied. If there is binding in the rails, replace the Alignment Carriage
sub-assembly.
4. Do REP 3.1.2 to install the Punch Module.
