GBC AdvancedPunch Pro - 4 Paper Path; 4.1. Paper Path- Entrance Drive Panel

Parts List 09-11-2018 GBC AdvancedPunch Pro
5-14
4.Paper Path

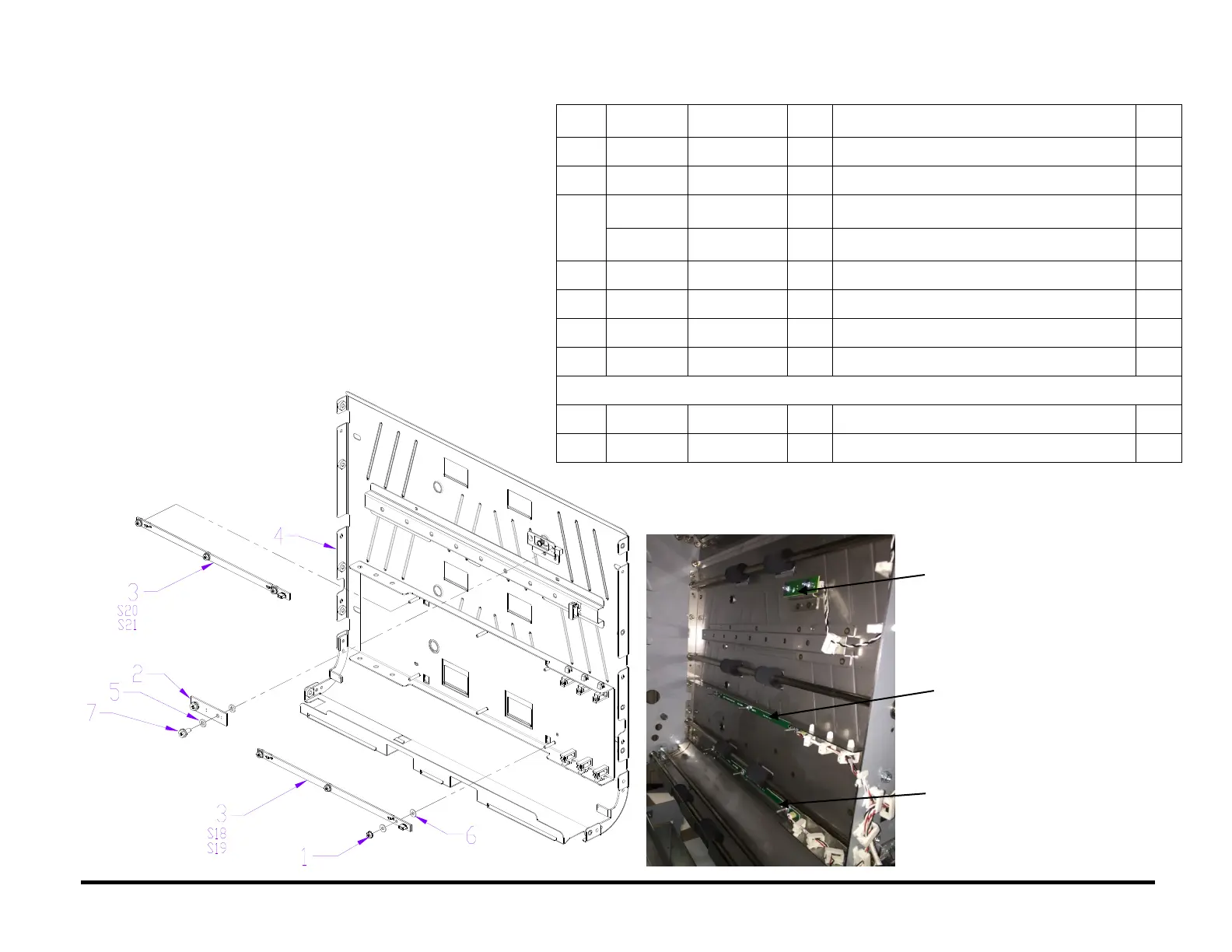

PL 4.1. Paper Path- Entrance Drive Panel
ITEM
GBC Part
#
Xerox Part #
DESCRIPTION
QTY
1
1824002
B
027N00263
B
NUT, KEPS, M3
6
2
7711973
050N00665
S1b
RECEIVER
1
3
7715696
130N01767
S18
S19
MID PUNCH, LARGE, SENSOR BOARD
BOARD ASSY, BACKGAGE SENSOR
1
7715696
130N01767
S20
S21
MID PUNCH, X LARGE, SENSOR BOARD
BOARD ASSY, BACKGAGE SENSOR
1
4
7715851
002N03194
PANEL WELDMENT,DRIVE,ENTRANCE
1
5
1822108
C
028N00374
C
WASHER, FLAT, 4.1X 8X1.5
4
6
1822117
C
028N00373
C
WASHER, 3.2ID, 8OD, 0.75MM THICK
12
7
1823903
B
026N00823
B
SCREW, PHILLIPS, HX HD M4X8
2
Parts identified above with superscripts are part of Hardware kits.
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
C
7715975
600N03434
KIT, HARDWARE, WASHERS
S20, S21
S18, S19
S1b
