GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-57
REP 2.21.4 179T Belt Replacement
PARTS LIST ON PL 3.9
Use this procedure to remove and install the 179T belt for Accleration
motor M2.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.

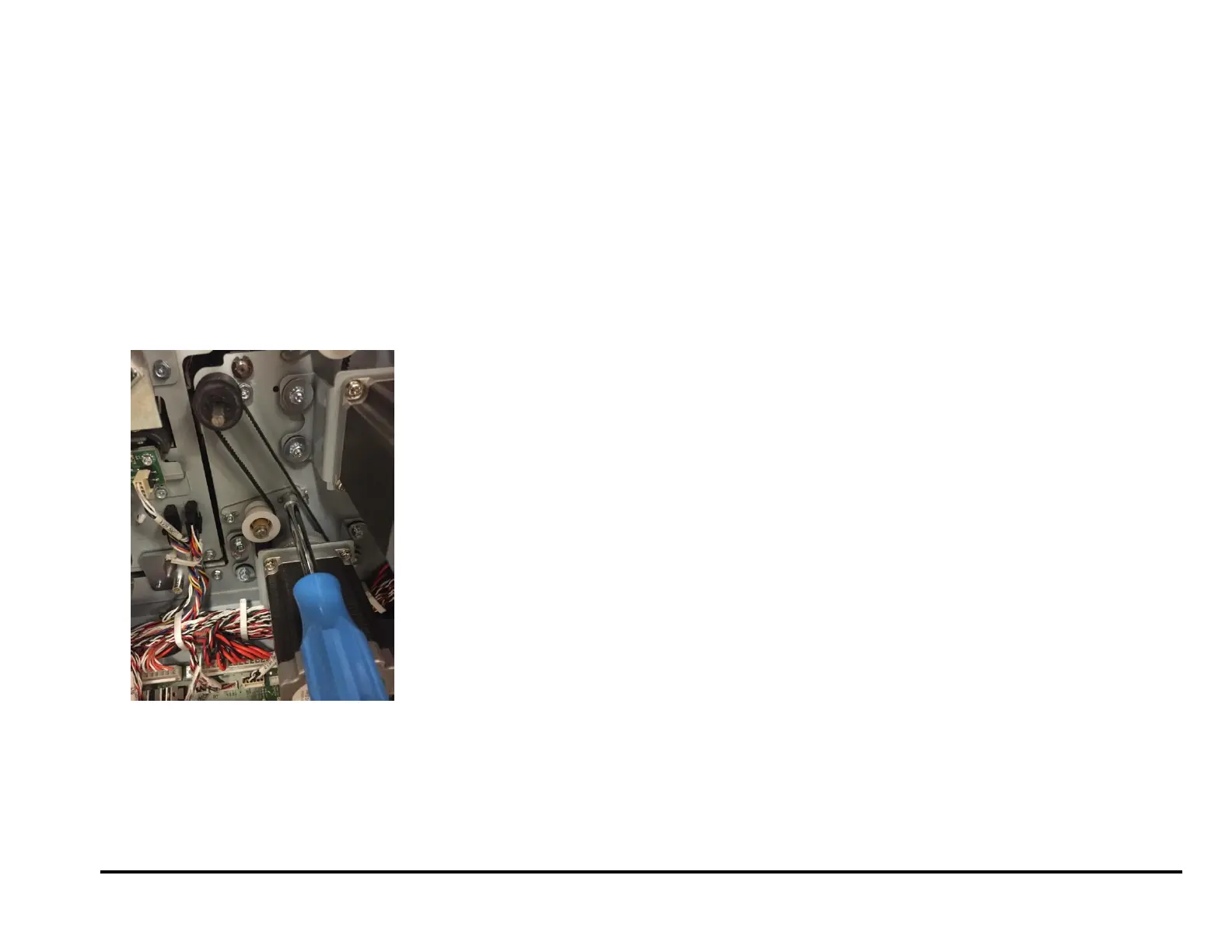

4. Loosen the Tensioner and remove the old Belt.
5. Place the new Belt in position around the Pulleys.
6. Adjust the Belt Tension, ADJ 1.4.4
7. Do REP 1.6 to install the Rear Cover.
8. Connect the Power Cord.
9. Power ON the entire printing system.
