GBC AdvancedPunch Pro - REP 2.25 Paper Path Sensor Replacement; REP 2.25.1 Entrance Sensor (S1,) Exit Sensor (S25), and Bypass Middle Sensor (S26) Replacement

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-65
REP 2.25 Paper Path Sensor Replacement
PARTS LIST ON PL 3.7
Use the following procedures to remove and install the paper path
sensors.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
Sensor #
REP #
Sensor #
REP #
S1
REP 2.25.1
S16
REP 2.25.8
S2
REP 2.25.2
S17
REP 2.25.8
S3
REP 2.25.2
S18
REP 2.25.5
S4
REP 2.25.2
S19
REP 2.25.5
S5
REP 2.25.3
S20
REP 2.25.5
S6
REP 2.25.6
S21
REP 2.25.5
S7
REP 2.25.6
S22
REP 2.25.2
S8
REP 2.25.6
S23
REP 2.25.2
S9
REP 2.25.6
S24
REP 2.25.2
S10
REP 2.25.6
S25
REP 2.25.1
S11
REP 2.25.7
S26
REP 2.25.1
S12
REP 2.25.7
S27
REP 2.24
S13
REP 2.25.7
S28
REP 2.25.4
S14
REP 2.25.7
S1b
REP 2.25.2
S15
REP 2.25.7

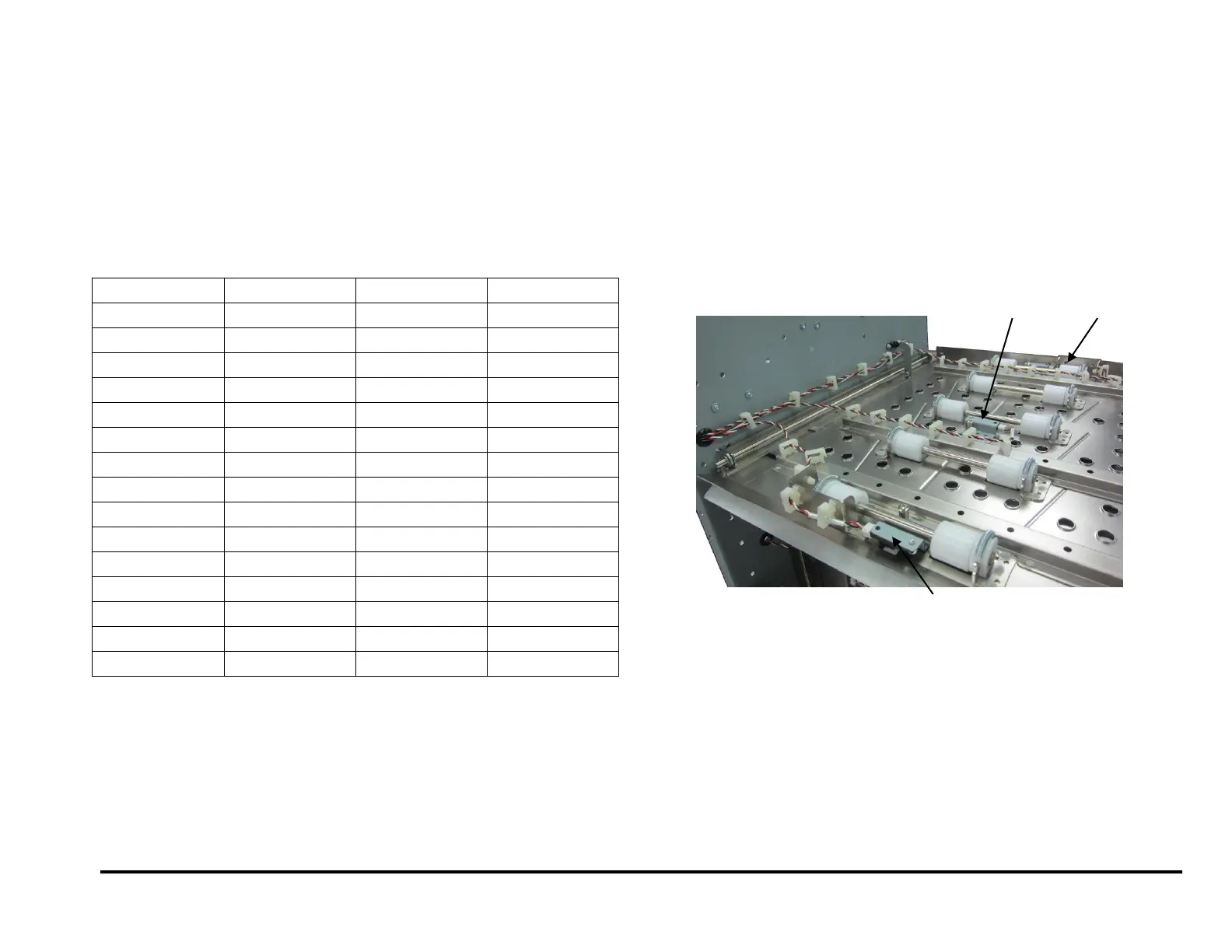

REP 2.25.1 Entrance Sensor (S1,) Exit Sensor (S25), and Bypass
Middle Sensor (S26) Replacement
PARTS LIST ON PL 4.5
Use this procedure to remove and install the Sensor and Bracket
Assembly for the Entrance Sensor, S1 and Exit Sensor, S25.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Open the Front Door.
4. Disconnect the Sensor Connector at the Sensor.
5. Remove the Barrell Screw and Lockwasher that secure the Sensor to
the sheet metal part.
6. Remove the old Sensor.
7. Place the new Sensor in position, then install Lockwasher and Barrell
Screw.
8. Close the Front Door.
9. Connect the Power Cord.
10. Power ON the entire printing system.
S25
S1
S26
