Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro

4-68

REP 2.25.4 Align Home Sensor (S28) Replacement

PARTS LIST ON PL 5.3

Use this procedure to remove and install the Sensor and Bracket

Assembly for the Align Home Sensor (S28).

1. Switch power OFF to entire printing system.

2. Disconnect the Power Cord.

3. Do REP 1.11 to remove the Lower Downstream Side Frame Cover.

4. Disconnect the Sensor Wire Connector from the Sensor.

5. Remove the M3 Screws (2) that secure the Sensor to the Bracket.

6. Remove the Sensor Sub-assembly.

7. Place the new Sensor in position.

8. Tighten the M3 Screws (2) that secure the Sensor to the Bracket.

9. Connect the Sensor Connector to the Sensor.

10. Do REP 1.11 to install the Downstream Side Frame Cover.

11. Connect the Power Cord.

12. Power ON the entire printing system.

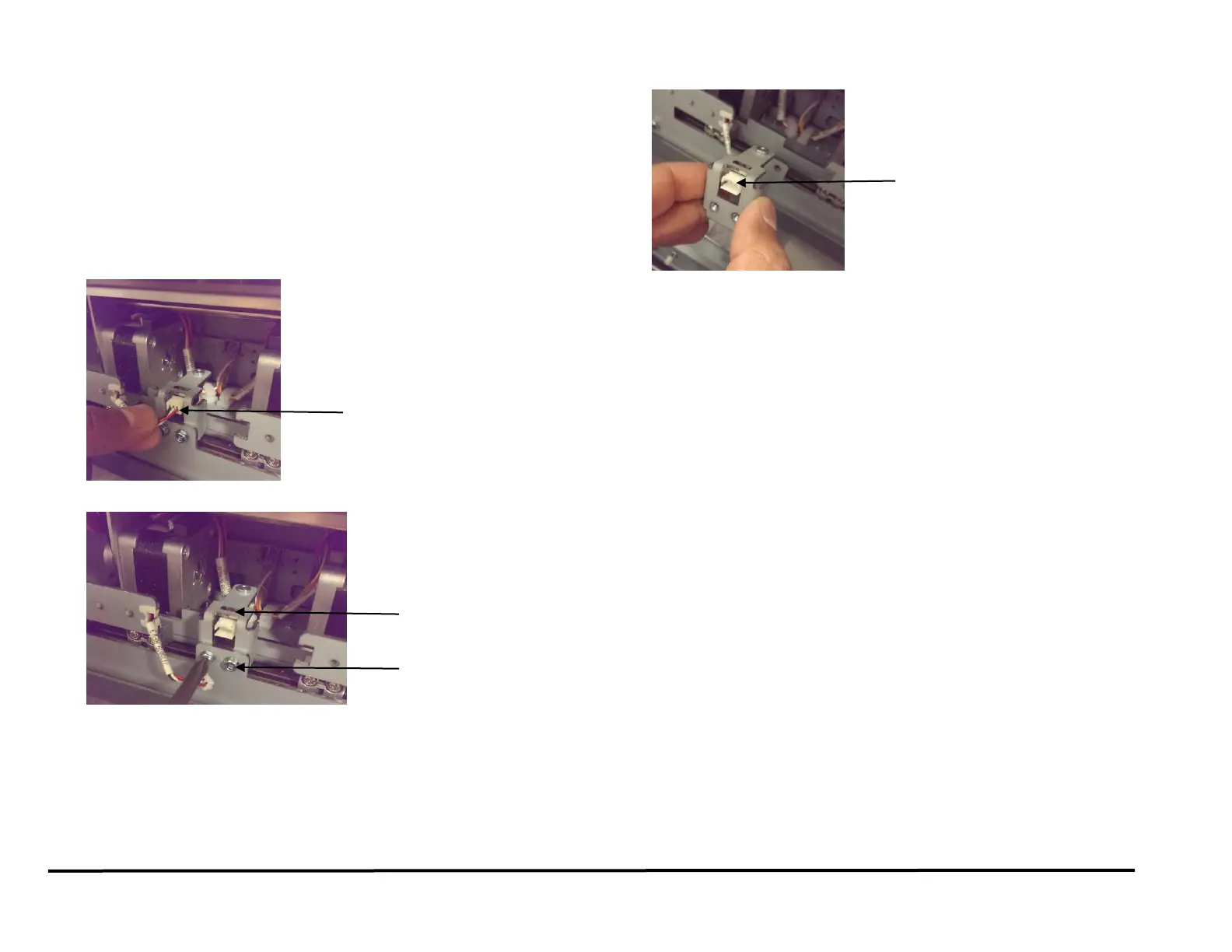

Sensor Wire

Connector

Sensor

Bracket

Screws (2)

Sensor

Sub-assembly
