Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-94
REP 3.5 Punch Alignment Stepper Motor and Pulley Replacement
PARTS LIST ON PL 5.1
Use this procedure to remove and install the Punch Alignment Stepper
Motor (M5) and Pulley, or the Alignment Stepper Mount Bracket.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1 to remove the Punch Module.
5. Remove the Phillips Screws (4).
6. Remove the Steering Belt from the Pulley.
7. Remove the Punch Alignment Stepper Motor and Pulley.
Installation Procedure
1. Place the Steering Belt around the Pulley.
2. Do ADJ 1.4.1 to adjust the tension on the Belt.
3. Tighten the Phillips Screws (4).
4. Do REP 3.1 to install the Punch Module.
5. Close the Front Door.
6. Do REP 1.6 to install the Rear Cover.
7. Connect the Power Cord.
8. Power ON the entire printing system.

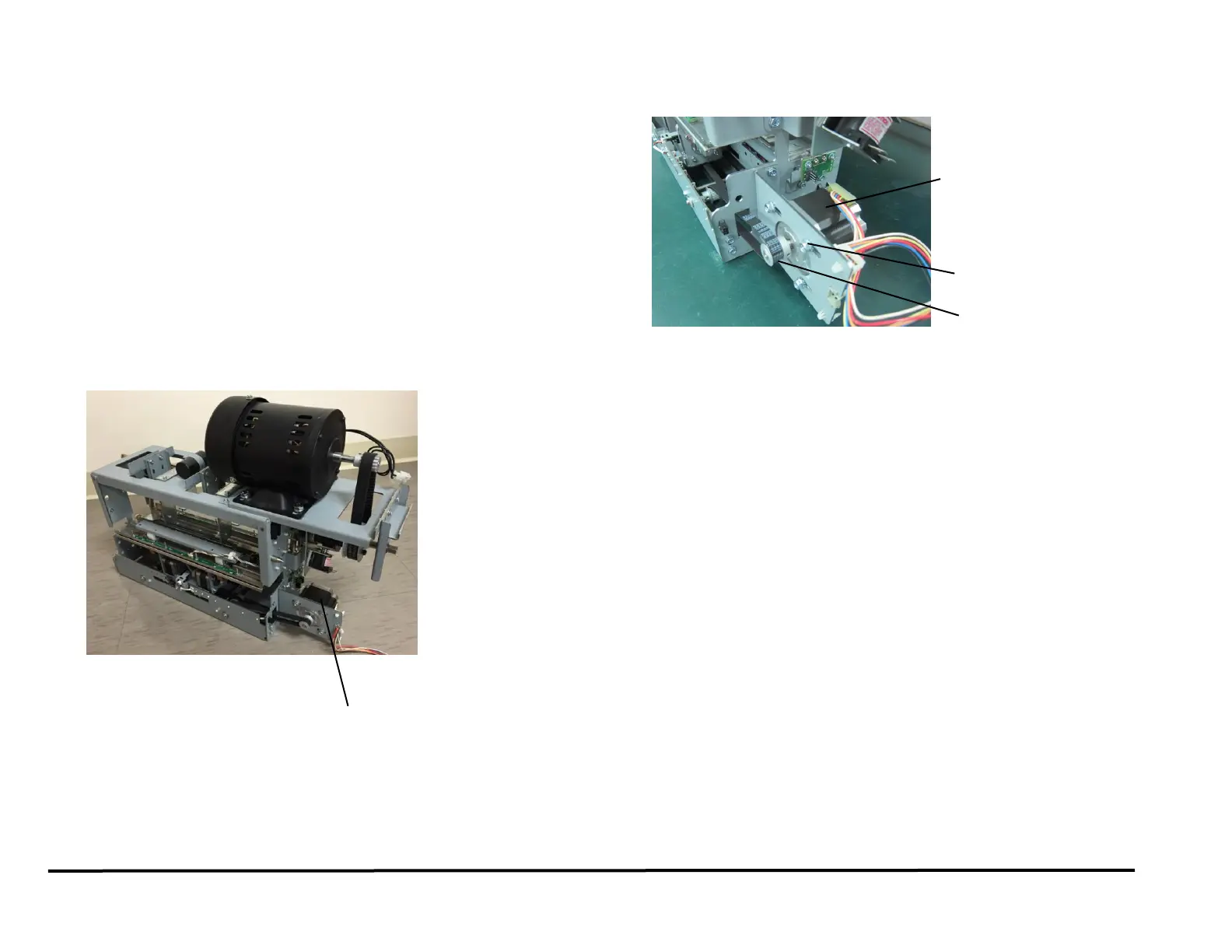

Punch Alignment Stepper Motor (M5)
To Next Page
