GBC AdvancedPunch Pro - 1 Cabinet; REP 1.1 Top Cover Replacement

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-3
REPLACEMENTS
1. Cabinet
REP 1.1 Top Cover Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Top Cover Assembly.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord from AdvancedPunch Pro.
3. Open the Front Door.
4. Do REP 1.6 to remove the Rear Cover.
5. Do REP 1.11 to remove the Upper Downstream Side Frame Cover.

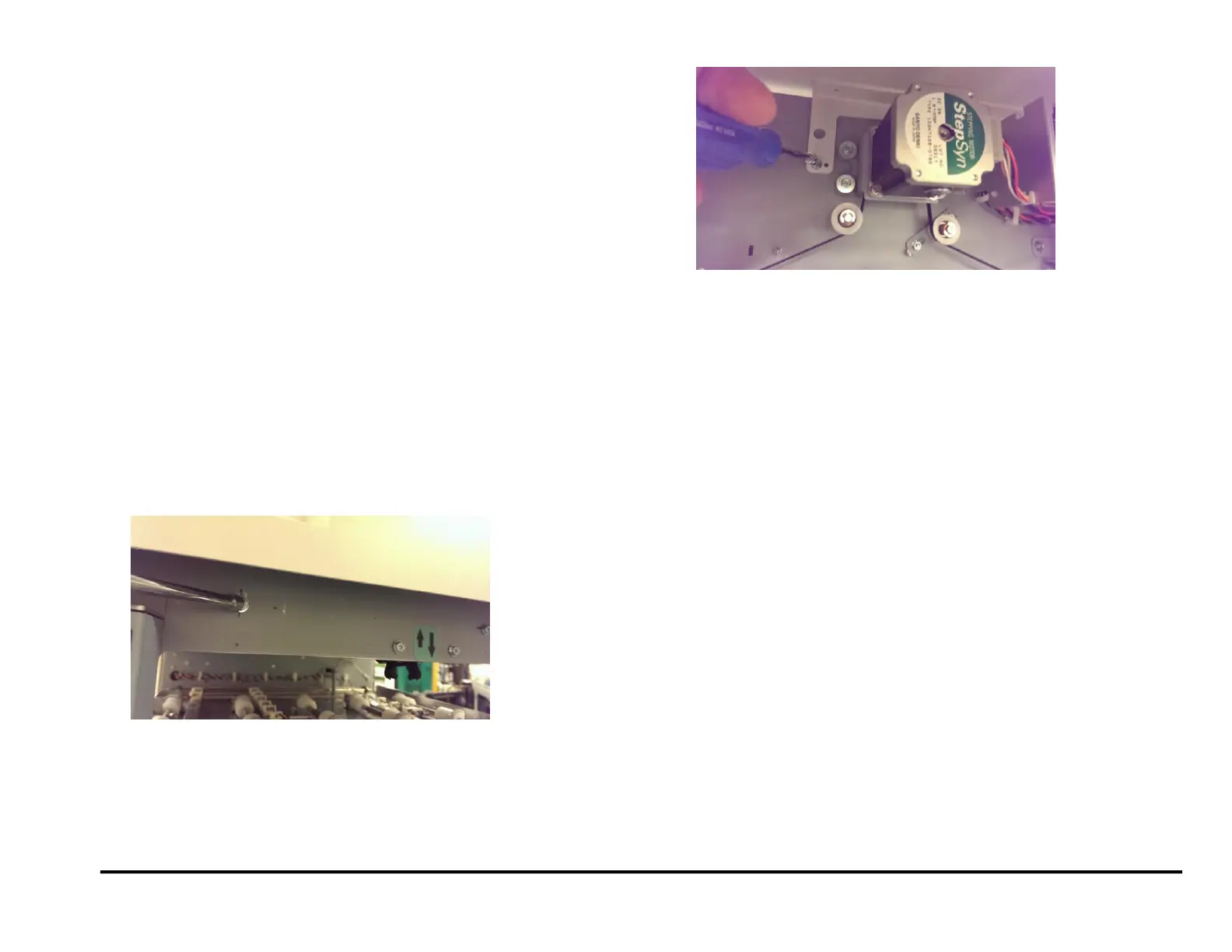

6. Remove the Phillips Head Screws (4) from the Top Cover Tabs.
Caution: Top Cover will drop upon removal of fasteners. Stabilize the
Top Cover with your free hand to insure the Top Cover does not fall
unexpectedly.
7. Disconnect the LCD Panel Connector and release the LCD Cable
from wire saddles.
8. Remove the Top Cover.
Installation Procedure
Use this procedure to install the Top Cover Assembly.
1. Place the Top Cover in position.
2. Install and tighten the Phillips Head Screws (4) through the Tabs.
3. Connect the LCD Panel Connector and place the LCD Cable in the
wire saddles.
4. Do REP 1.11 to install Upper Downstream Side Frame Cover.
5. Close the Front Door.
6. Do REP 1.6 to install the Rear Cover.
7. Connect the Power Cord.
8. Power ON the entire printing system.
