Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-138
ADJ 1.8 Drive Panel Position Adjustment
PARTS LIST ON PL 3.1
Use this procedure to Inspect and adjust the Drive panel positions. The
drive panels control how far the drive rollers protrude into the paper path,
which in turn control the roller nip forces. All drive rollers should be

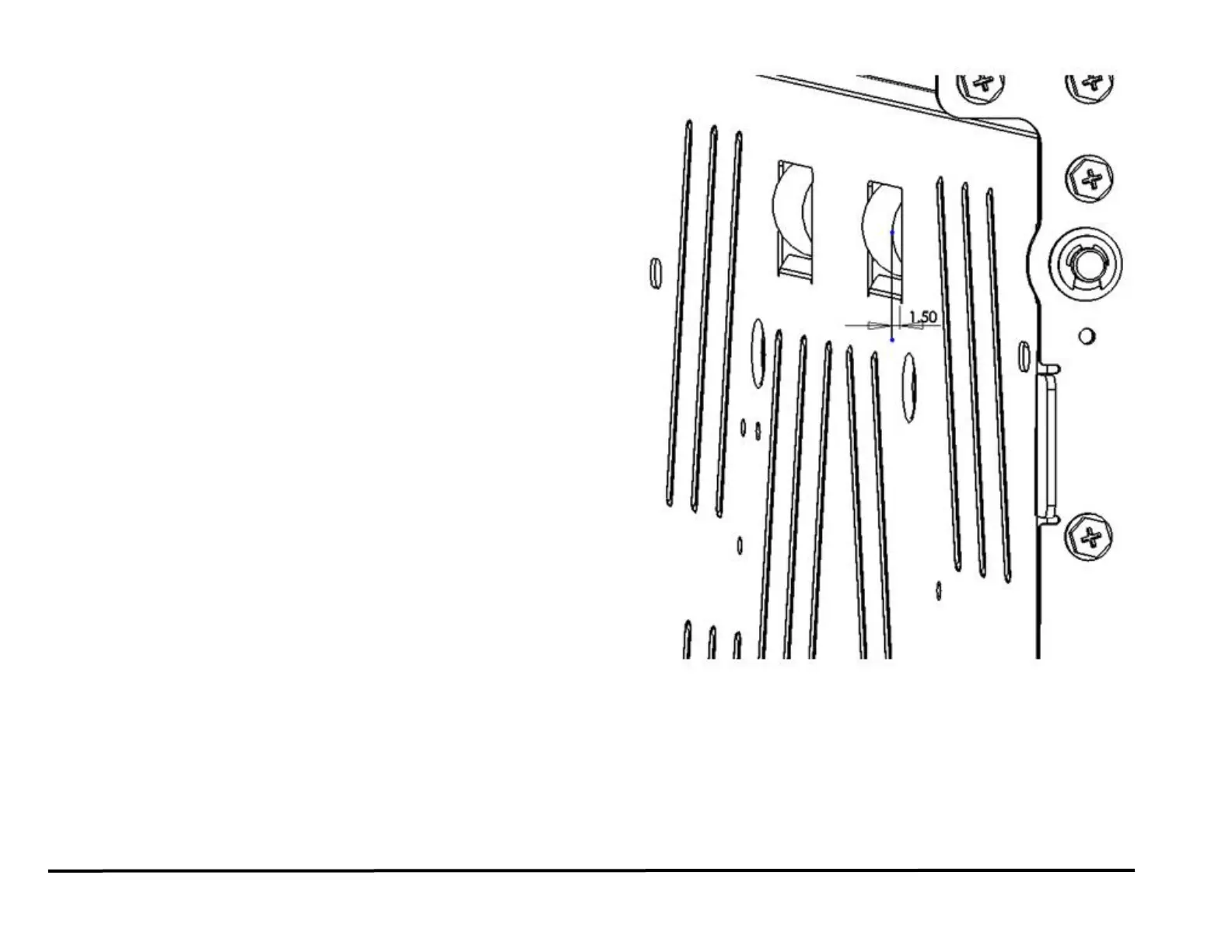

protruding 1.5±0.5mm through the paper path.
This procedure applies to
Entrance Drive Panel (PL 3.1)
Exit Drive Panel (PL 3.1)
Lower Bypass Panel (PL 3.1)
To Next Page
