GBC AdvancedPunch Pro - 3.5. Frame Assembly- Internal Parts

GBC AdvancedPunch Pro 09-11-2018 Parts List
5-9

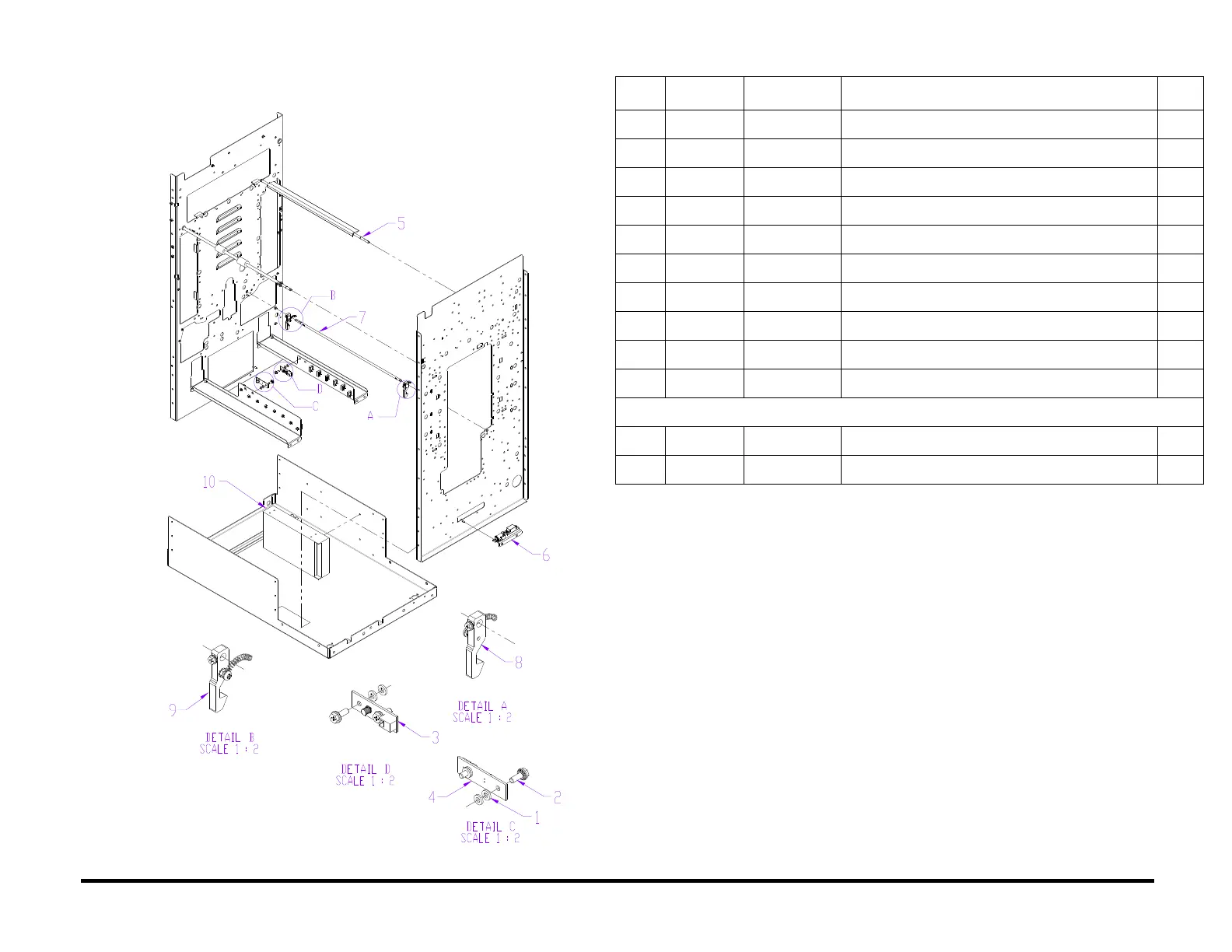

PL 3.5. Frame Assembly- Internal Parts
ITEM
GBC
Part #
Xerox Part
#
DESCRIPTION
QTY
1
1822108
C
028N00374
C
WASHER, FLAT, 4.1X8X1.5
8
2
1823911
B
026N00820
B
SCREW, PHILLIPS HX HD W/SEMS M4 X 10
4
3
7711970
107N00458
EMITTER
1
4
7711973
050N00665
RECEIVER
1
5
7715418
050N00664
BYPASS DIVERTER
1
6
7715186
130N01761
CHIP TRAY SENSOR MOUNT ASSY
1
7
7715213
006N01356
SHAFT, ACCEL IDLER LATCH
1
8
7715216
003N01105
LATCH,ASSY, FRONT, ACCEL IDLER PANEL
1
9
7715222
003N01104
LATCH,ASSY, REAR, ACCEL IDLER PANEL
1
10
7715637
105N02293
POWER SUPPLY, 24V, MW SP 480,
1
Parts identified above with superscripts are part of Hardware kits.
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
C
7715975
600N03434
KIT, HARDWARE, WASHERS
