GBC AdvancedPunch Pro - 4.2. Paper Path- Entrance Idler Panel

GBC AdvancedPunch Pro 09-11-2018 Parts List
5-15

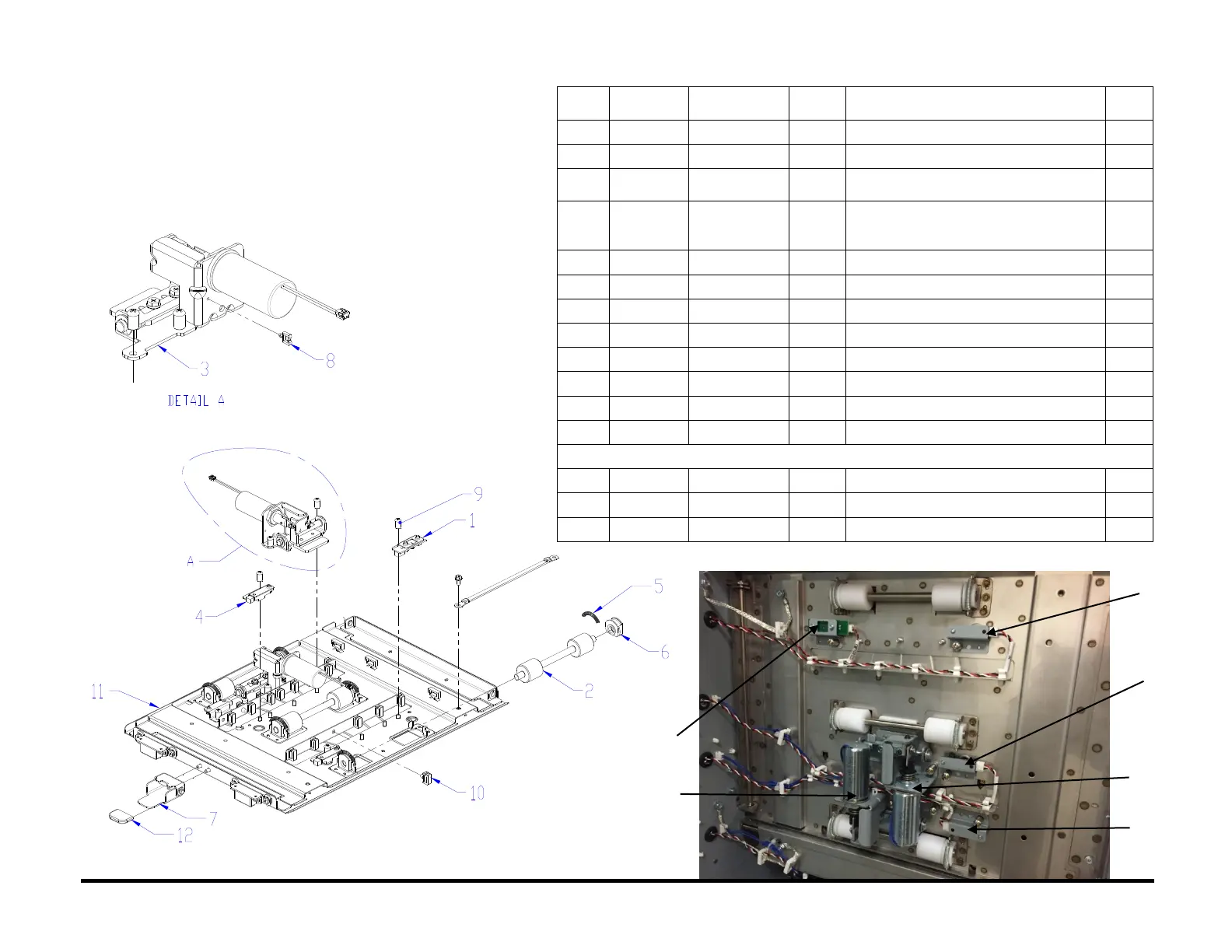

PL 4.2. Paper Path- Entrance Idler Panel
ITEM
GBC Part
#
Xerox Part
#
DESCRIPTION
QTY
1
7711970
107N00458
S1b
EMITTER
1
2
7715103
022N02806
ROLLER ASSY, IDLER
3
3
PL 4.6
SOL3
SOL4
MODULE,SOLENOID,DISENGAGING
ROLLER
2
4
7715291
130N01762
S2
S3
S4
SENSOR AND BRACKET ASSY
3
5
7715380
F
009N01702
F
SPRING,TRANSPORT IDLR ROLLER
6
6
7715382
013N13947
BEARING HOUSING
6
7
7715384
003N01111
HANDLE ASSY, IDLER PANELS
1
8
7715625
E
072N00038
E
WIRE SADDLE, SHORT
2
9
7715629
B
026N00813
B
SCREW, BARREL, M4, 7MM DEEP
13
10
7715639
E
072N00041
E
WIRE SADDLE,SMALL,SIDE OPEN
11
11
7715853
002N03198
PANEL WLDMT,IDLER,ENTRY
1
12
7708163
021N02267
CAP, RUBBER
1
Parts identified above with superscripts are part of Hardware kits.
B
7715974
600N03433
KIT, HARDWARE, FASTENERS
E
7715977
600N03436
KIT, HARDWARE, WIRE CLAMPS
F
7715978
600N03437
KIT, HARDWARE, SPRINGS
SOL4
S2
S3
S4
SOL3
S1b
