GBC AdvancedPunch Pro - REP 3.9 Steering Motor Belt (65 Groove) Replacement

Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-102
REP 3.9 Steering Motor Belt (65 Groove) Replacement
PARTS LIST ON PL 5.5
Use this procedure to remove and install a 65 Groove Steering Belt, the
Steering Drive Roller Assembly or the Steering Drive Roller Spring.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1 to remove the Punch Module.

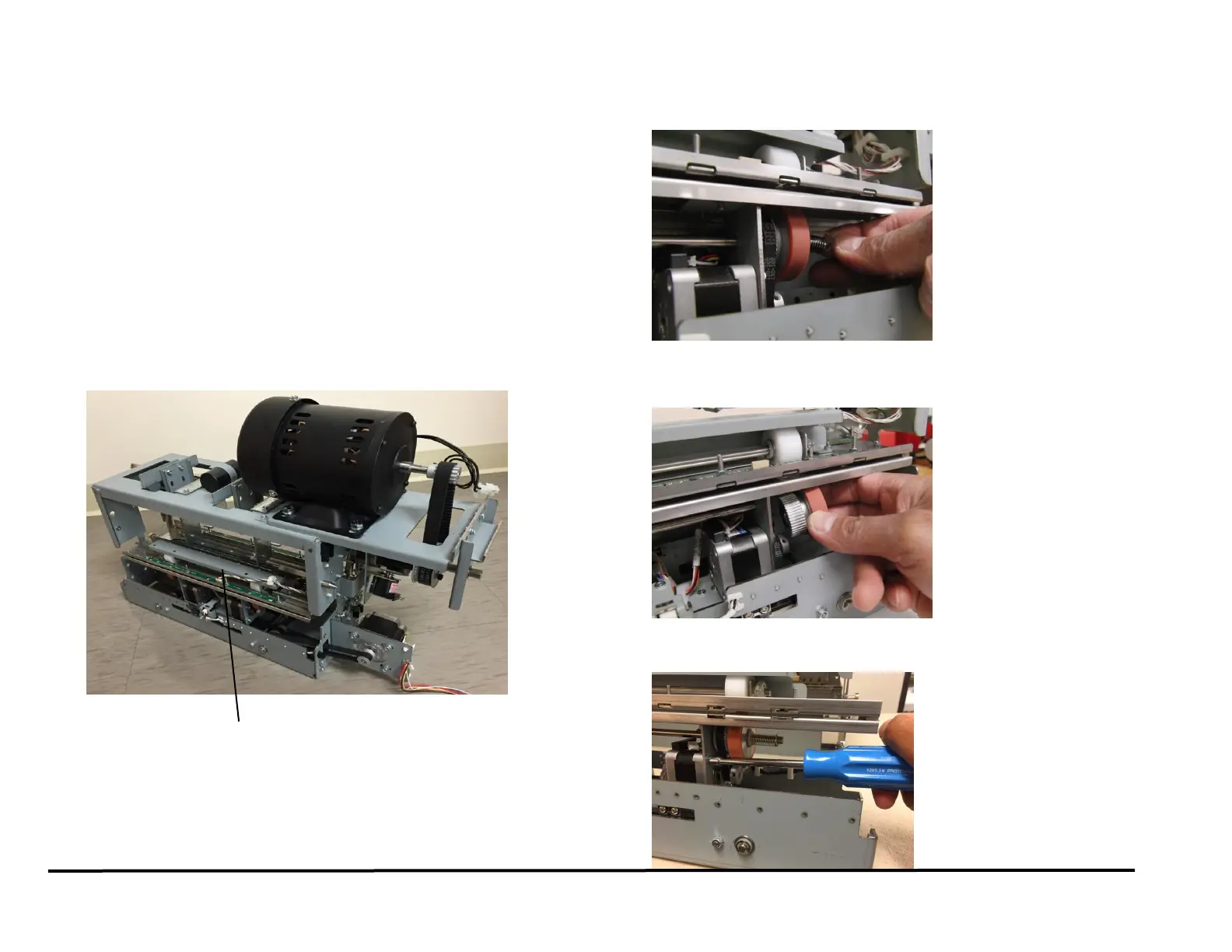

5. Remove the E-Ring from the Steering Drive Roller shaft (from the
side that needs the part to be replaced).
6. Slide the Shaft in the opposite direction so that the Steering Drive
Roller Spring, (2) plastic washers and Steering Drive Roller can be
removed (from the side that needs the part replaced).
If necessary, loosen (4) screws of the Stepper motor and move the
motor up.
Drive Panel Steering Sub Assembly
