GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-53
REP 2.18 One Way Clutch and Pulley Sub-Assembly Replacement
PARTS LIST ON PL 3.4
Use this procedure to remove and install the One Way Clutch and Pulley
Sub-Assembly.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 Rear Cover Replacement to remove the Rear Cover.

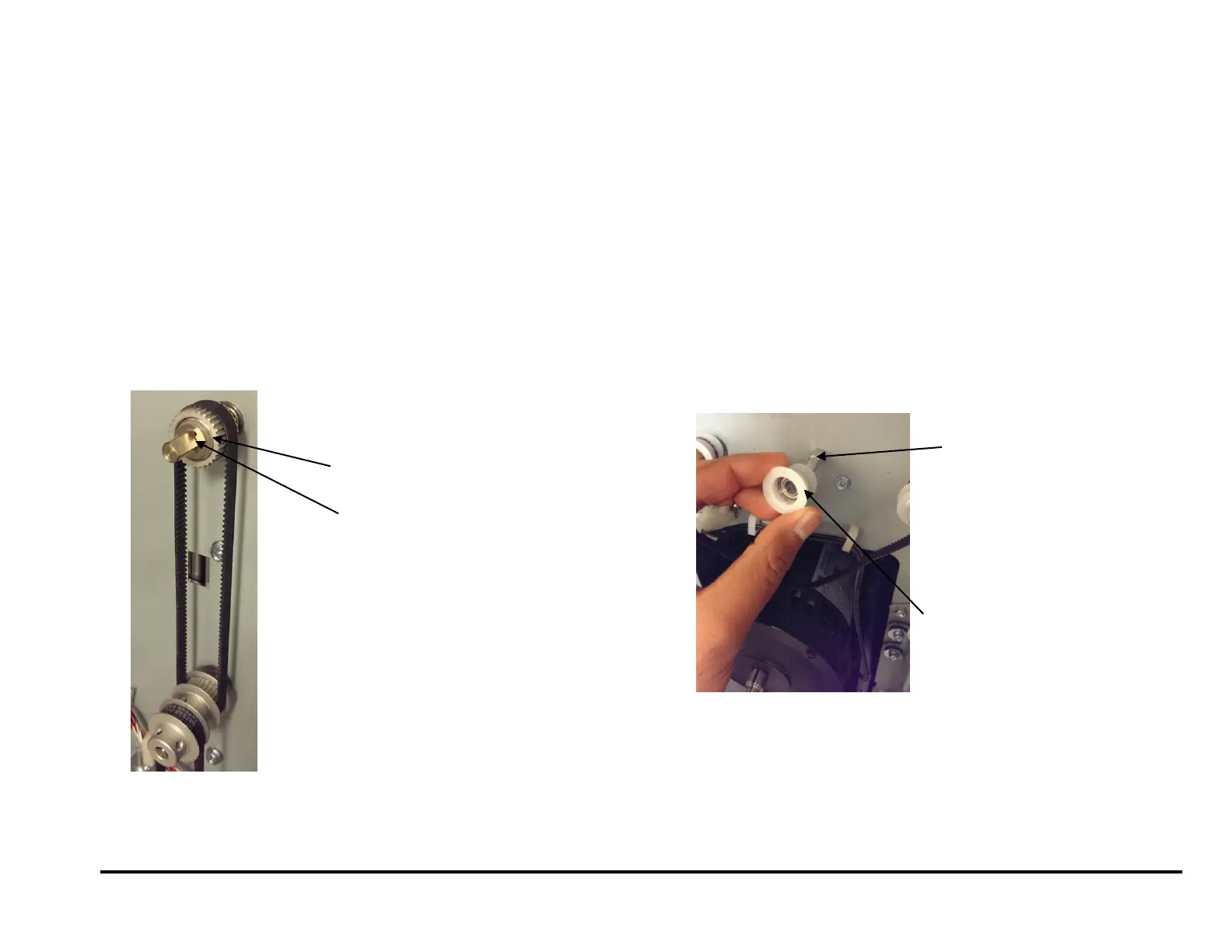

4. Remove the E-Clip and Washer.
5. Slide the old One Way Clutch Assembly off the Shaft, while leaving
the Timing Belt in place.
6. Place the new One Way Clutch Assembly on to the Shaft.
7. Install the Washer and the E-Clip.
8. Connect the Power Cord.
9. Power ON the entire printing system.
REP 2.19 Drive Idler Roller Assembly Replacement
PARTS LIST ON PL 3.3
Use this procedure to remove and install a one way Drive Idler Roller
Assembly.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 2.21.1 to remove the 534T Belt
4. Remove the E-ring and the Spacer.
5. Slide out the old Idler Roller from the Stud.
6. Place the new Idler Roller on the Stud.
7. Install the Spacer and the E-ring.
8. Do REP 2.21.1 to install the 534T Belt
9. Connect the Power Cord.
10. Power ON the entire printing system.
