GBC AdvancedPunch Pro Service Manual

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-123
6. Adjustments
ADJ 1.1 Door Latch Adjustment
PARTS LIST ON PL 2.2
Do the following to ensure the door latch holds the door closed and that
the activating bracket tab [1] depresses the door switch[2]. The tab should
press the switch button just so that it is close to bottoming out.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Open the Front Door.

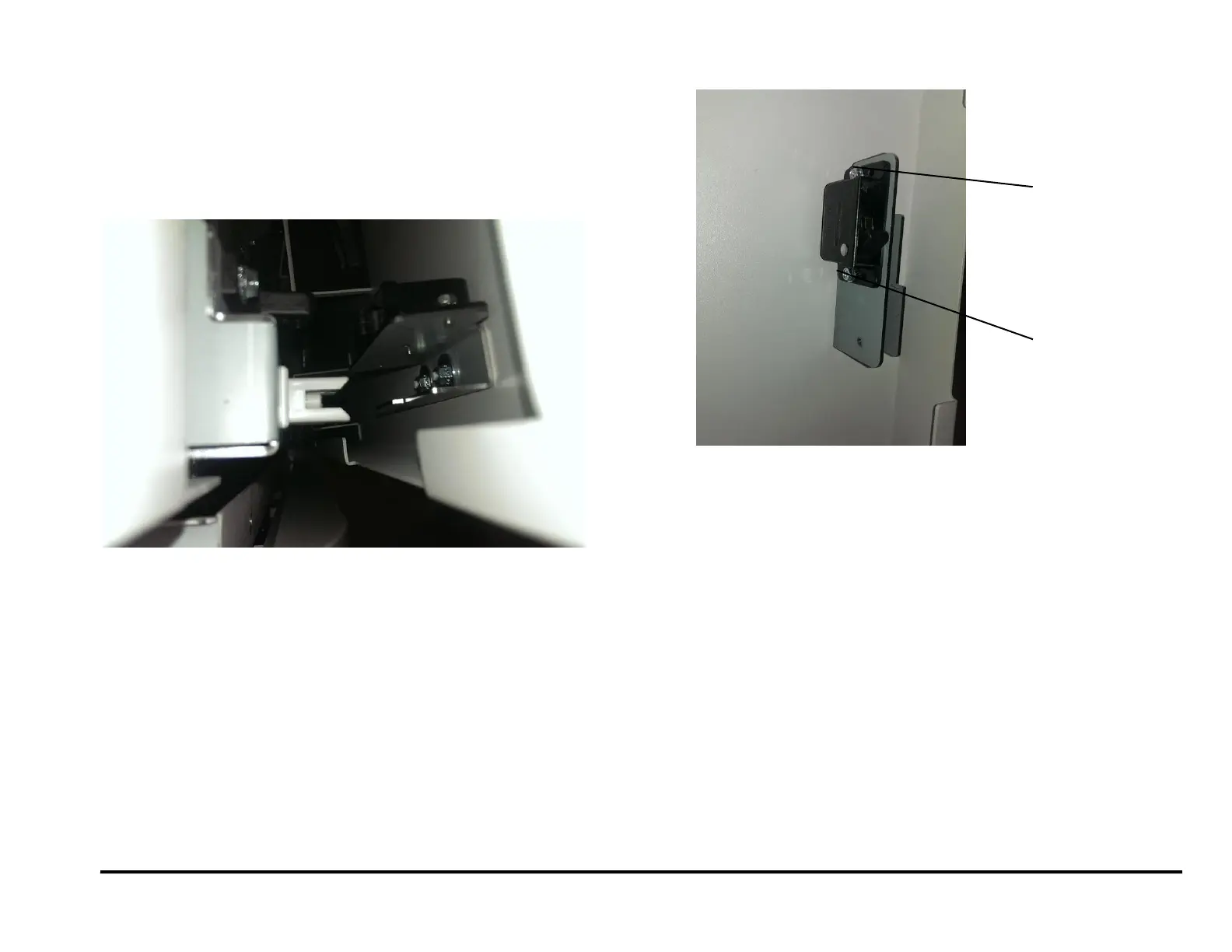

4. Loosen the Adjustment Screws (2) on the door latch.
5. Do one of the following:
 To move the door in, move the latch towards the front of the door.
 To move the door out, move the latch away from the front of the
door.
6. Tighten the Adjustment Screws (2).
7. Close the Front Door.
8. Connect the Power Cord.
9. Power ON the entire printing system.
10. Test the Door Latch operation.
Screw
Screw
