GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-5
REP 1.3 Front Door Bottom Hinge Bracket Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Front Door Bottom Hinge
Bracket.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.2 Front Door Replacement to remove the Front Door.
4. It is recommended to trace the perimeter of the hinge bracket before
remocal.
5. Remove the Screws (2) and the Front Door Bottom Hinge Bracket
6. Place the new Front Door Bottom Hinge Bracket in position and
tighten the Screws (2).
7. Do REP 1.2 Front Door Replacement to install the Front Door.
8. Connect the Power Cord.
9. Power ON the entire printing system.
REP 1.4 Front Door Top Hinge Bracket Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Front Door Top Hinge
Bracket.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.2 Front Door Replacement to remove the Front Door.
4. Remove the Screws (2) and the Front Door Top Hinge Bracket
5. Place the new Front Door Top Hinge Bracket in position and tighten
the Screws (2).
6. Do REP 1.2 Front Door Replacement to install the Front Door.
7. Connect the Power Cord.
8. Power ON the entire printing system.

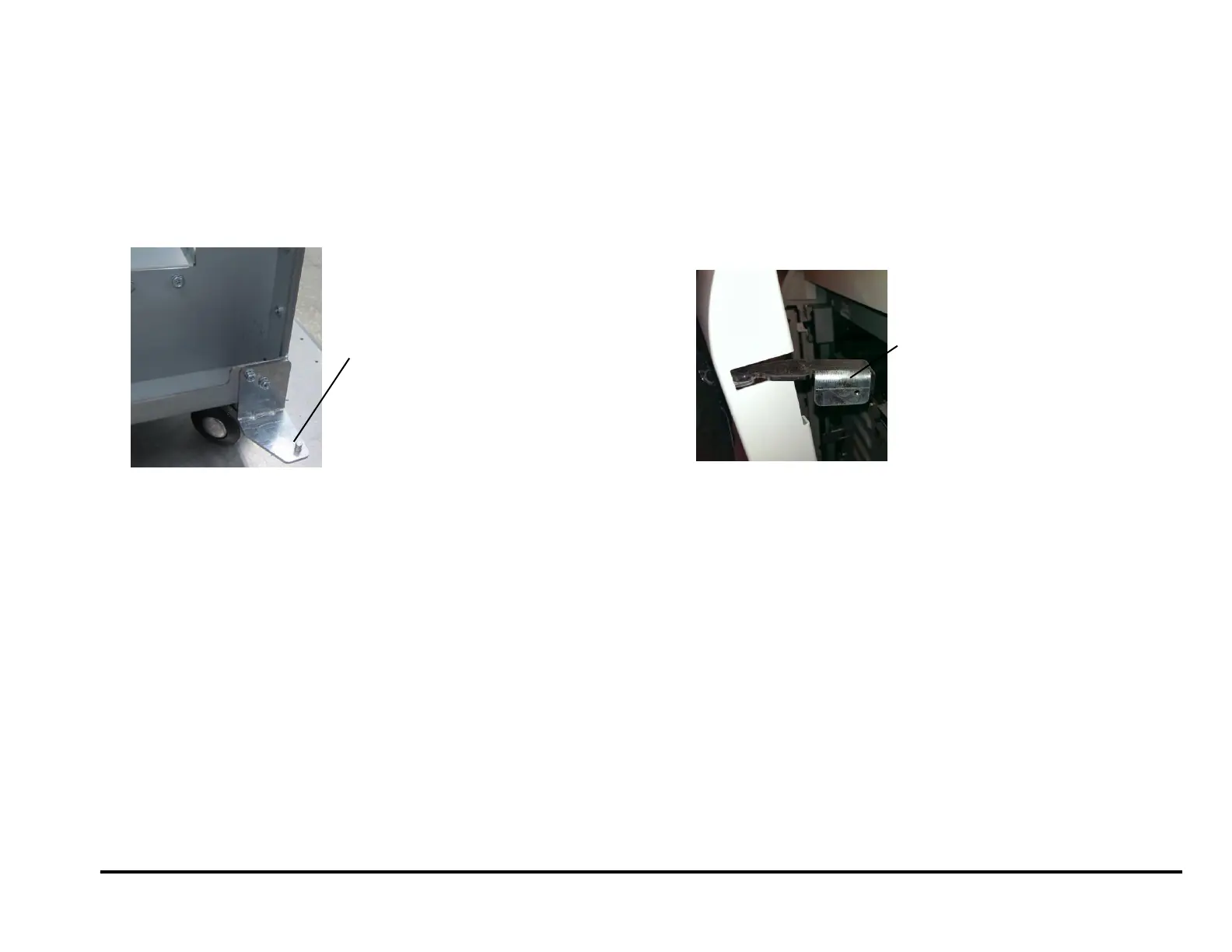

Front Door
Bottom Hinge
Bracket
Front Door
Top Hinge
Bracket
