GBC AdvancedPunch Pro - 3.6. Frame Assembly- Motors and Motor Drivers

Parts List 09-11-2018 GBC AdvancedPunch Pro
5-10

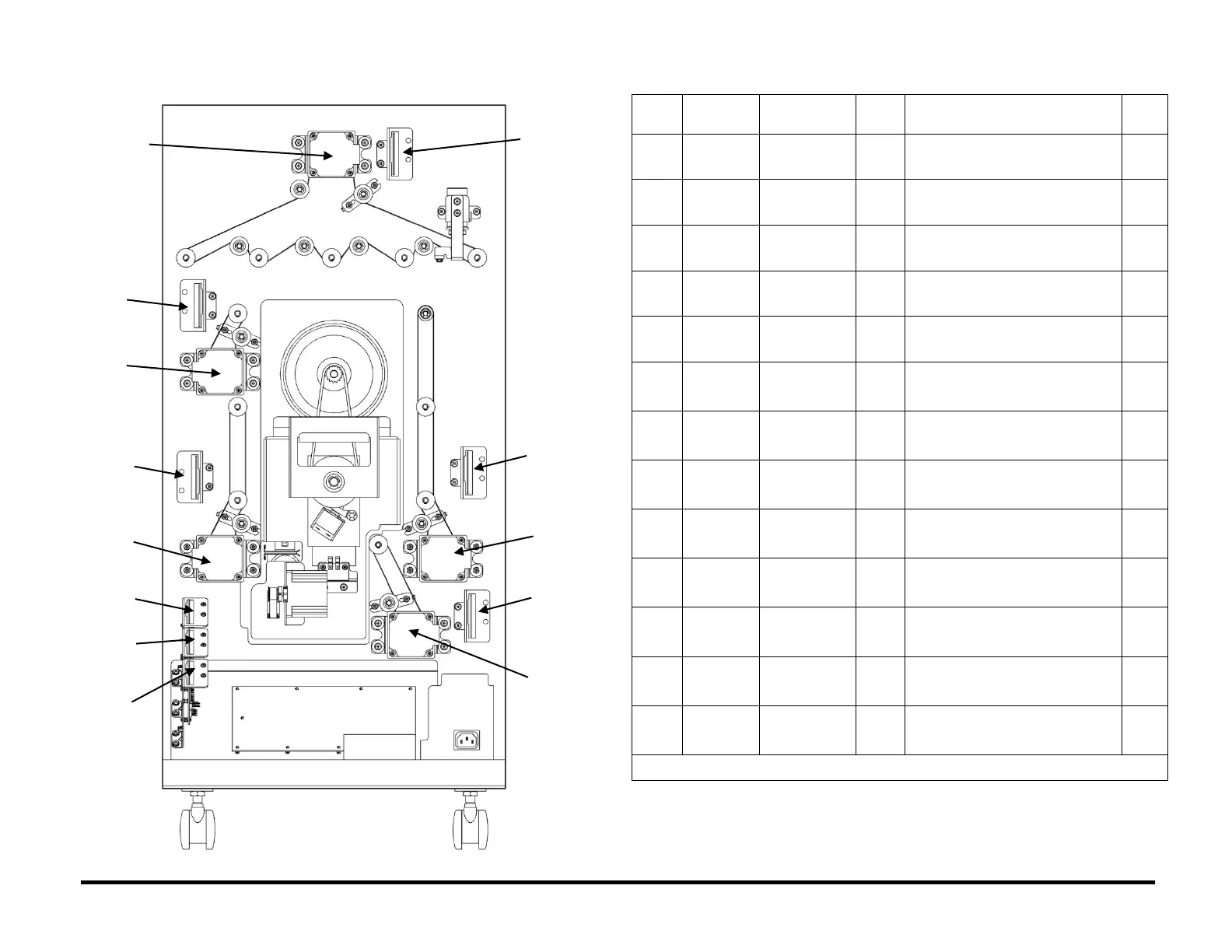

PL 3.6. Frame Assembly- Motors and Motor Drivers
ITEM
GBC
Part #
Xerox part
#
DESCRIPTION
QTY
1
7715159
127N07845
M1
ENTRANCE MOTOR
STEPPER AND MOUNT ASSY
1
2
7715159
127N07845
M2
ACCEL MOTOR
STEPPER AND MOUNT ASSY
1
3
7715159
127N07845
M6
EXIT MOTOR
STEPPER AND MOUNT ASSY
1
4
7715159
127N07845
M7
DECEL MOTOR
STEPPER AND MOUNT ASSY
1
5
7715159
127N07845
M8
BYPASS MOTOR
STEPPER AND MOUNT ASSY
1
6
7715275
030N00807
DRV
M1
M1 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
7
7715275
030N00807
DRV
M2
M2 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
8
7715275
030N00807
DRV
M6
M6 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
9
7715275
030N00807
DRV
M7
M7 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
10
7715275
030N00807
DRV
M8
M8 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
11
7715275
030N00807
DRV
M3
M3 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
12
7715275
030N00807
DRV
M4
M4 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
13
7715275
030N00807
DRV
M5
M5 STEPPER DRIVER
DRIVER AND BRACKET
ASSY, TWO PHASE
1
SEE PL 6.3 FOR STEPPER MOTOR M3, M4 AND M5 POSITIONS
1
6
2
7
11
12
13
3
8
4
9
5
10
