Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-42
REP 2.10 Lower Bypass panel replacement
PARTS LIST ON PL 3.1
Use this procedure to remove and install the Lower Bypass panel.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 2.9 Upper bypass removal.

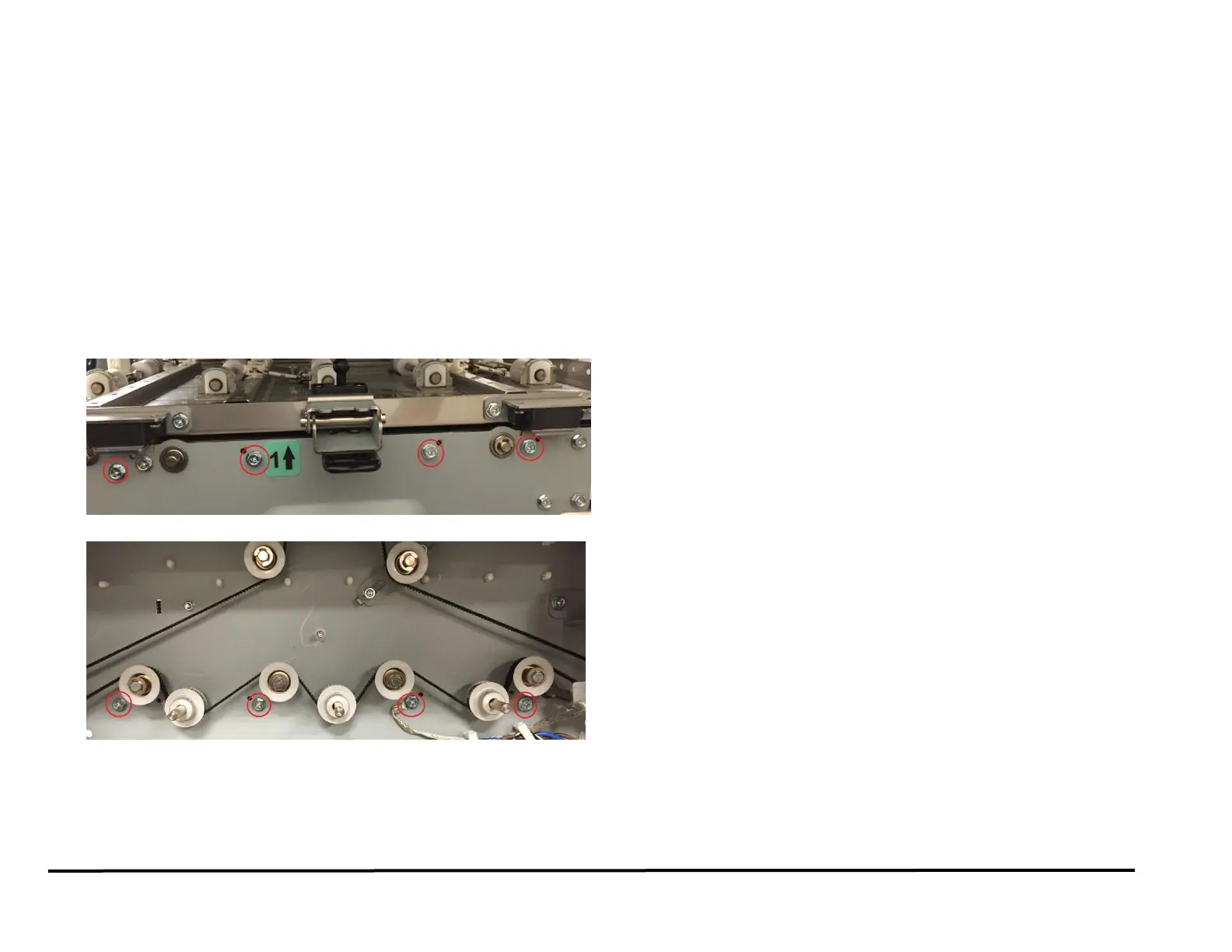

4. Remove (4) M4 screws from Front frame.
5. Remove (4) M4 screws from Rear frame.
6. Remove the Lower Bypass panel.
Installation Procedure
1. Place the new Lower Bypass panel in position
2. Install (4) M4 screws through the Front frame and (4) screws through
the Rear frame.
3. Do ADJ 1.8 to adjust the Drive panel position.
4. Do REP 2.9 to install the Upper Bypass panel.
