Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-4
REP 1.2 Front Door Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Front Door Assembly
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Open the Front Door.
4. Lightly trace the perimeter of the Top Hinge bracket fasted to the
interior of the Front door.
5. Remove two M4 nuts and washers securing the Top hinge bracket to
the Front Door. Carefully remove the bracket while securing the Front
Door with your free hand to prevent movement.
6. Lift the Door up off the pin on the Front Door Bottom Hinge Bracket.
7. Remove the Front Door.
8. Remove the Interlock Switch actuator and latch receptacle (PL 2.2)
from the old Door and install it on the new Door.
9. Remove the Magnet Strike Plate from the old Door and install it on
the new Door.
10. Transfer the wrench and the mounting bracket to the new door.
11. Transfer Tag Matrix information to the new Front door.
Installation Procedure
1. Place the Front Door in position so the pin on the Front Door Bottom
Hinge Bracket fits into the hole in the bottom of the Front Door.
2. Position the top of the Front Door and the Top Hinge bracket to
engage the top hinge pin. Secure the bracket to the Front Door using
the two washers and nuts. Adjust the bracket to align with the marks
made before disassembly and firmly tighten the nuts
3. Close the Front Door.
4. If necessary, do ADJ 1.1 to adjust the Door Latch.
5. Power ON the entire printing system.

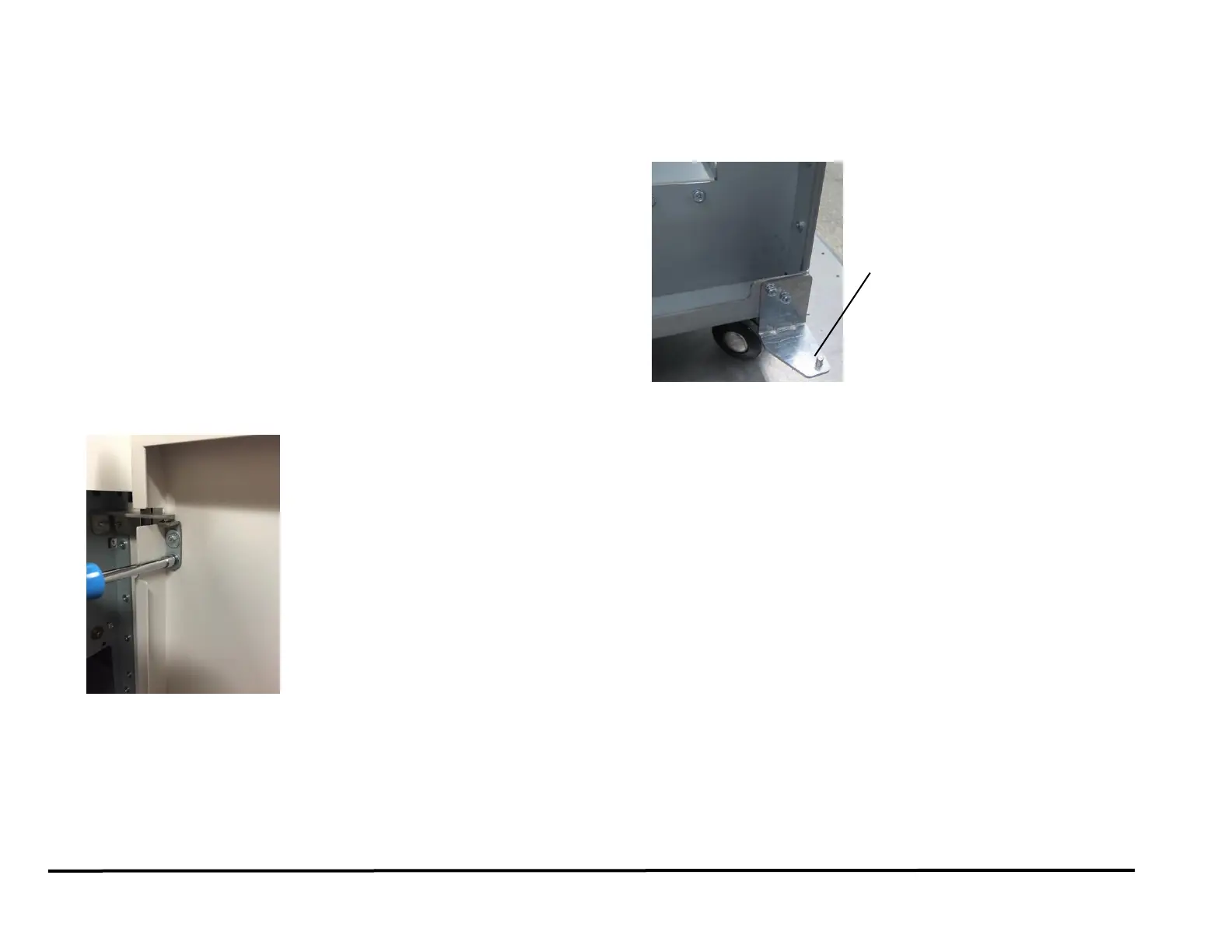

Front Door
Bottom Hinge
Bracket
To Next Page
