GBC AdvancedPunch Pro - REP 3.6 Steering Module Replacement

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-95
REP 3.6 Steering Module Replacement
PARTS LIST ON PL 5.1
Use this procedure to remove and install the Steering Module Sub
Assembly.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.1 to remove the Punch Module.
5. Disconnect the Skew Sensor Board Connector.
6. Do the following to take the Alignment motor Belt off the Pulley.
 Remove the Phillips Screws (2) from Alignment motor bracket.
 Remove the Steering Belt from the Pulley.
7. Pull the Steering Belt in through the hole in the Frame.

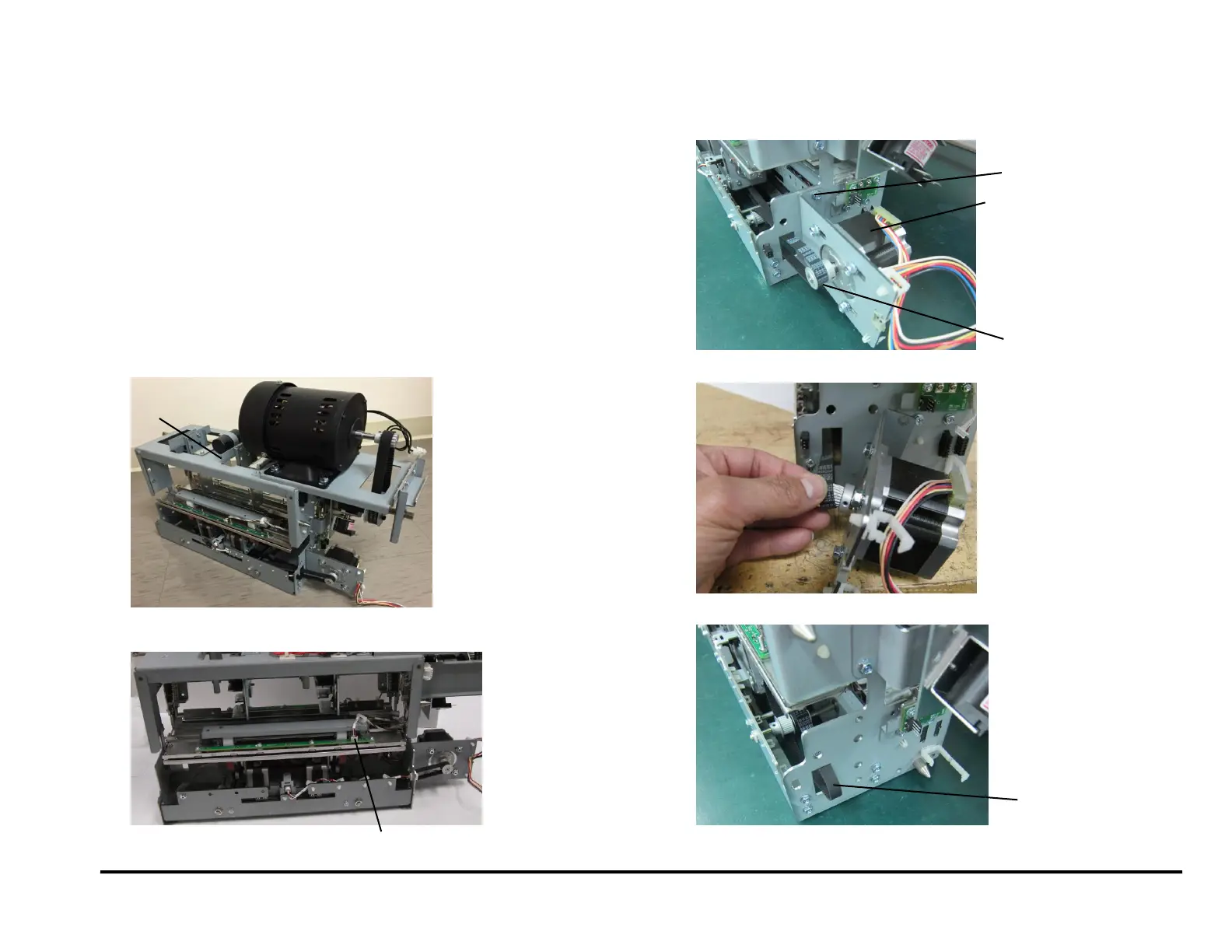

Punch Module
Skew Sensor Board Connector
Screws (2)
Belt
Motor
Belt
