GP 6.14 Idler Roller and Idler Springs Inspection
Idler rollers press against the drive rollers and move the paper through
the bypass [1] or the punch [2].
Maintenance Schedule
Inspect and clean every 1000K cycles.
Procedure

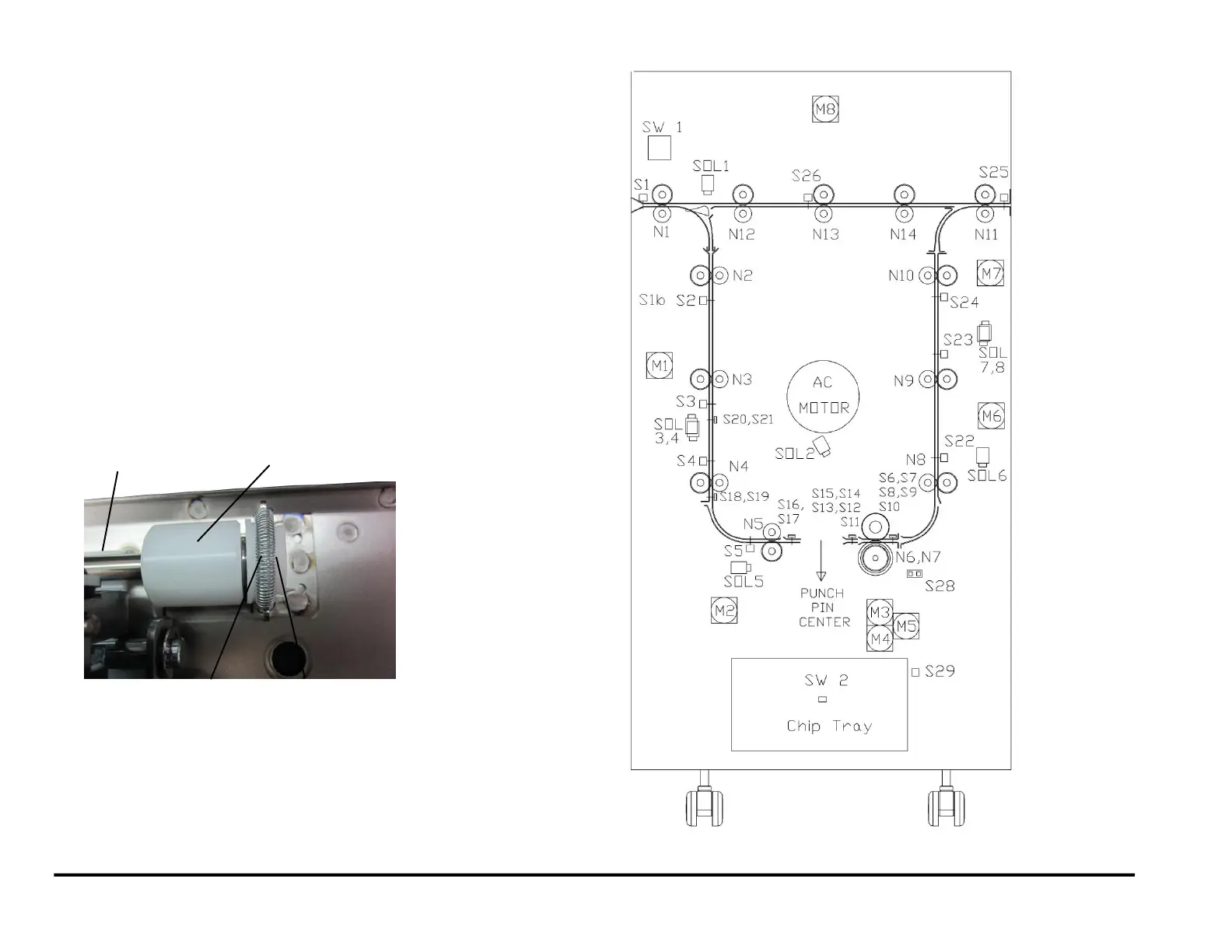

1. For the Idler Rollers in the following nips, inspect the rollers for wear,
debris, toner marks, unevenness, and dents.
2. Inspect Springs (2) for each Idler Roller, and make sure they are
correctly hooked.
3. Inspect the Bearing Housing. The Bearing Housing should slide freely
in the Bearing Forks.
