GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-49
REP 2.16 Accel Idler Latch Handle Replacement
PARTS LIST ON PL 3.2
Use this procedure to remove and install the Accel Idler Latch Handle or
the Accel Idler Shaft.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Open the Front Door.

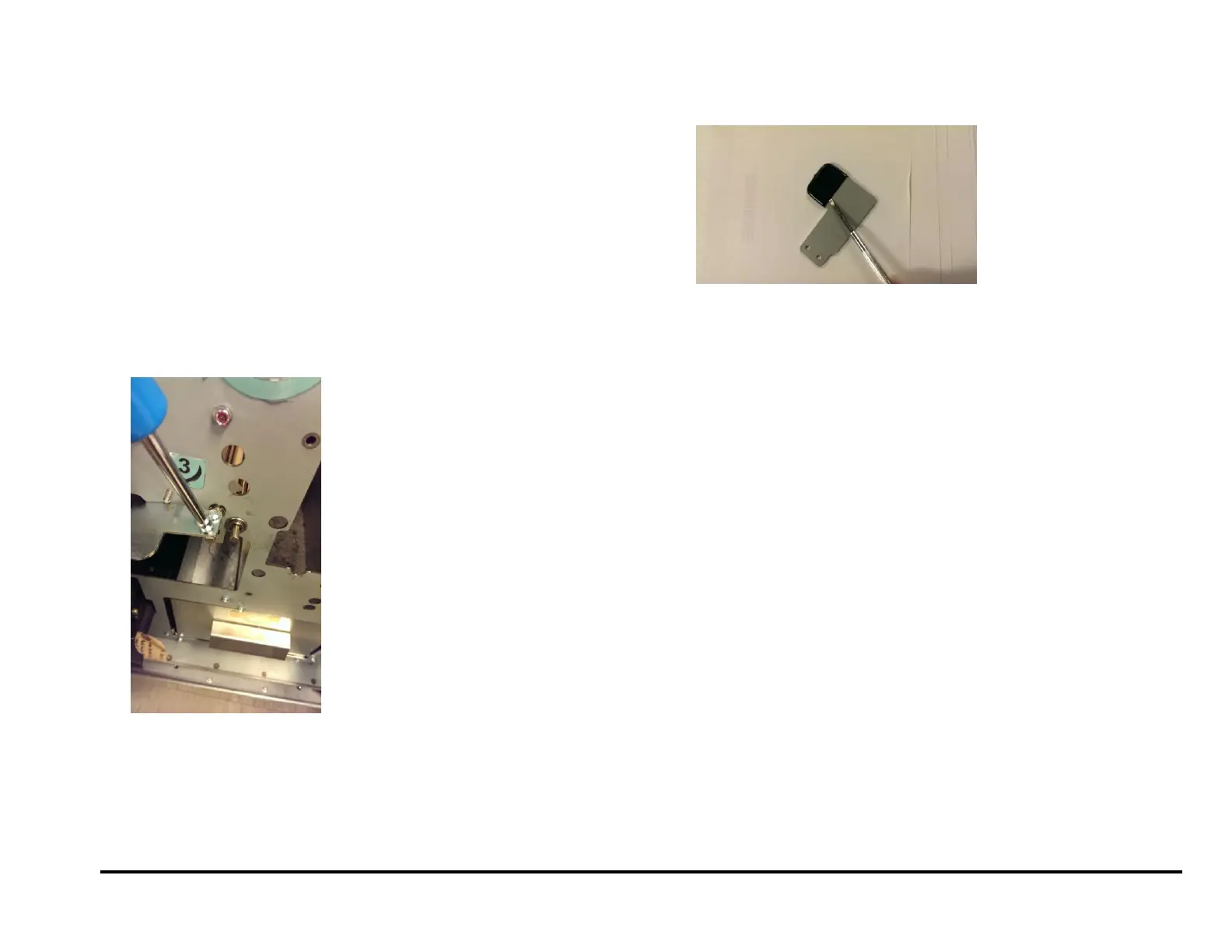

4. Remove (2) screws from the Accel Idler Latch Handle.
5. Remove the Rubber Cap and transfer it to the new part, if re-using
the rubber cap. If a new Rubber cap has been ordered, use the new
part.
Installation Procedure
1. Place the Accel Idler Latch Handle in position and tighten the Screws
(2).
2. Close the Front Door.
3. Connect the Power Cord.
4. Power ON the entire printing system.
To Next Page
