GBC AdvancedPunch Pro - GP 6.14.2 Steering Idler Roller and Springs Inspection and Cleaning

General Procedures and Information 09/11/2018 GBC AdvancedPunch Pro
6-64
GP 6.14.2 Steering Idler Roller and Springs Inspection and
Cleaning

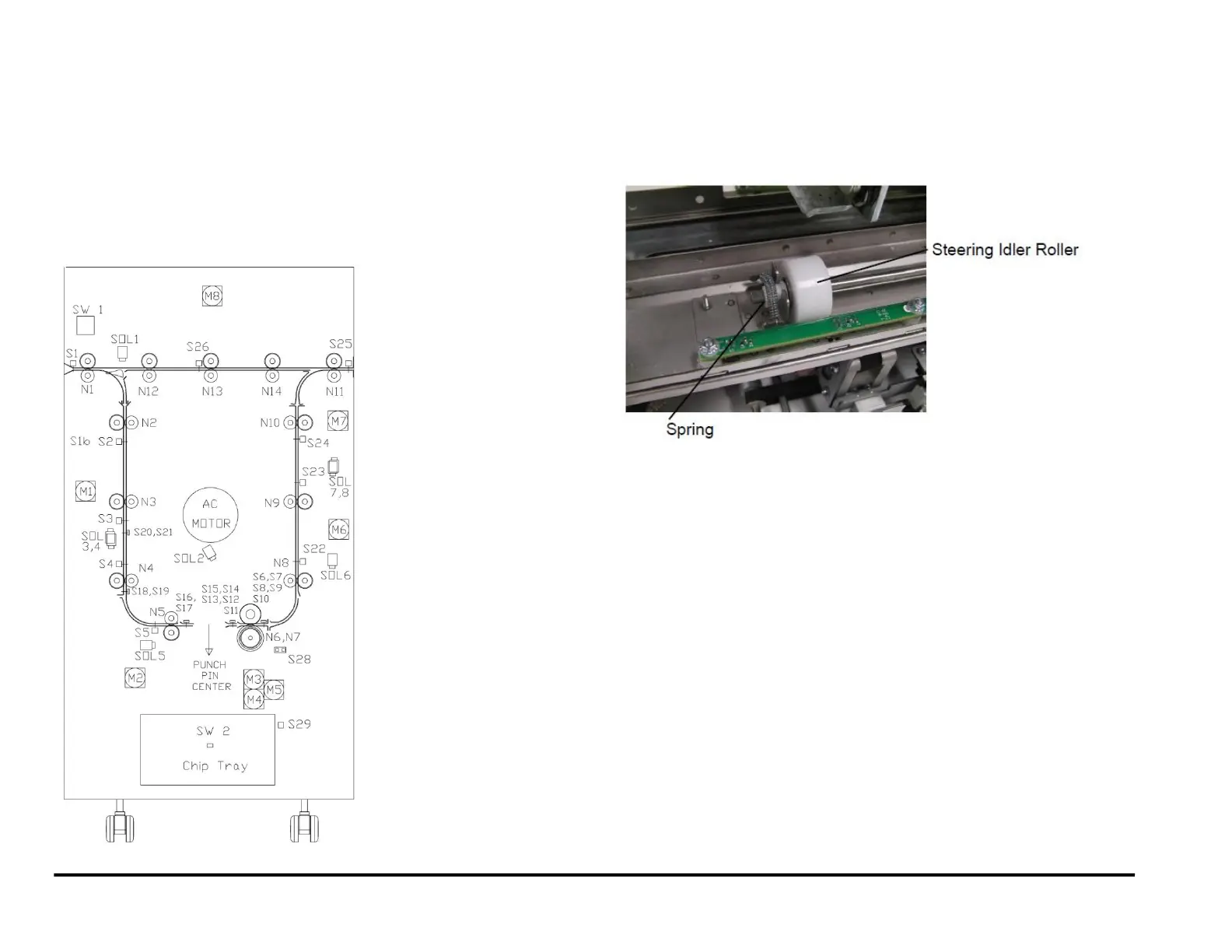

Use the procedure to clean and inspect these Steering Idler Rollers and
Springs.
 N6
 N7
Maintenance Schedule
Inspect and clean every 1000K cycles.
Procedure
To clean non-removable idler rollers:
1. Do REP 3.1.1 Punch Module Removal.
2. Clean the Steering Idler Rollers with a soft cloth and alcohol.
3. The roller surfaces should be free of debris, toner deposits, wear,
unevenness, and dents.
4. Inspect the Steering Idler Springs. The Springs should be hooked
securely and should be wrapped around the Bushing.
5. Do REP 3.1.2 Punch Module Installation.
