GBC AdvancedPunch Pro - REP 3.12 Steering Drive Panel Weldment Replacement

Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-108
REP 3.12 Steering Drive Panel Weldment Replacement
PARTS LIST ON PL 5.5
Use this procedure to remove and install the Steering Drive Panel
Weldment.
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
Removal Procedure
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.
4. Do REP 3.10 (through step 6) to remove the Steering Idler Panel Sub
Assembly.
5. Remove the Spacers (2).
6. Remove the Nuts (4) holding the Steering Drive Panel Weldment.
7. Replace with new part
Installation Procedure
1. Place the Steering Drive Panel Weldment in place.
2. Tighten the Nuts (4) that hold the Steering Drive Panel Weldment.
3. Install the Spacers (2).
4. Do REP 3.10 to install the Steering Idler Panel Sub Assembly.
5. Do REP 1.6 to install the Rear Cover.
6. Connect the Power Cord.
7. Power ON the entire printing system.

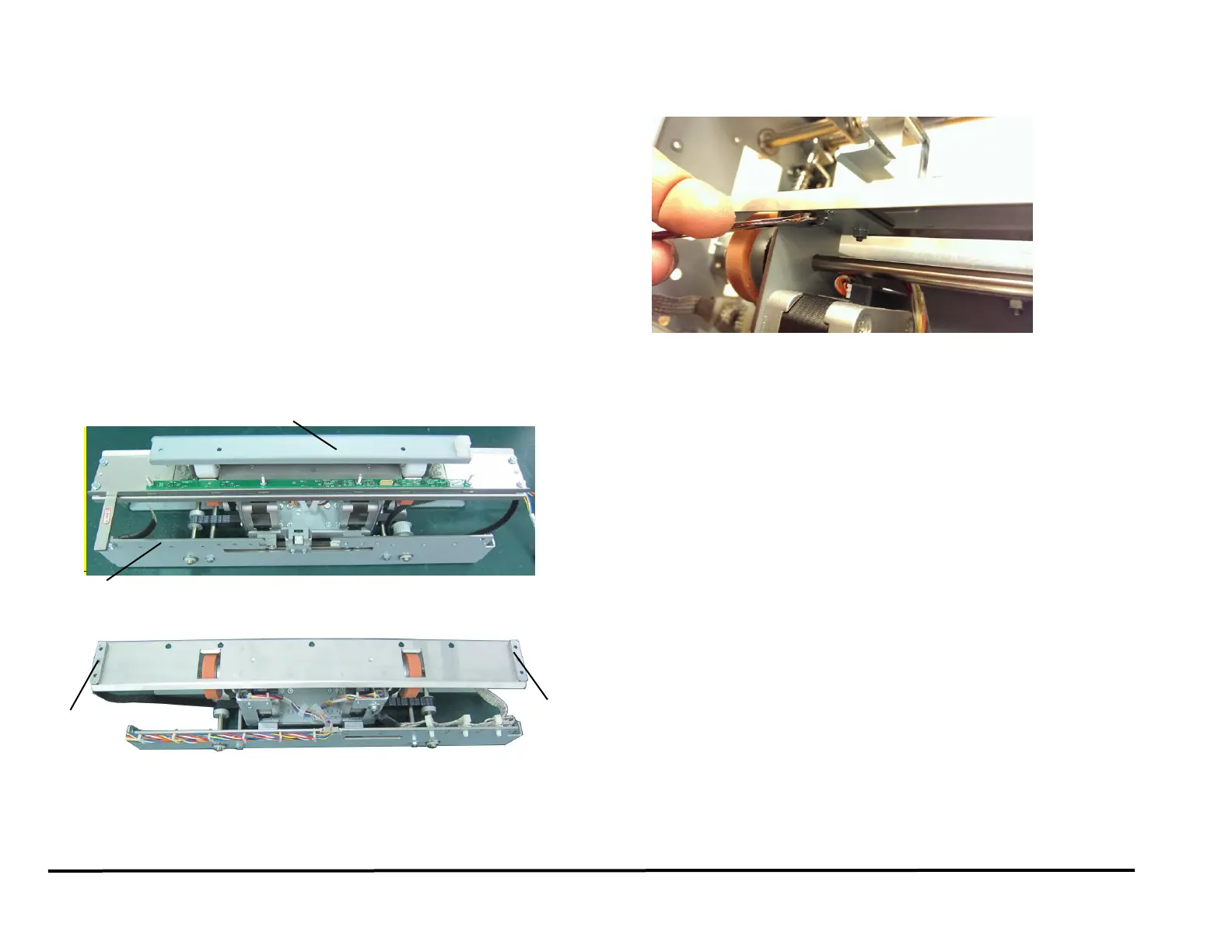

Steering Idler Panel Sub Assembly
Steering Module
Spacer
Spacer
