Jam Types

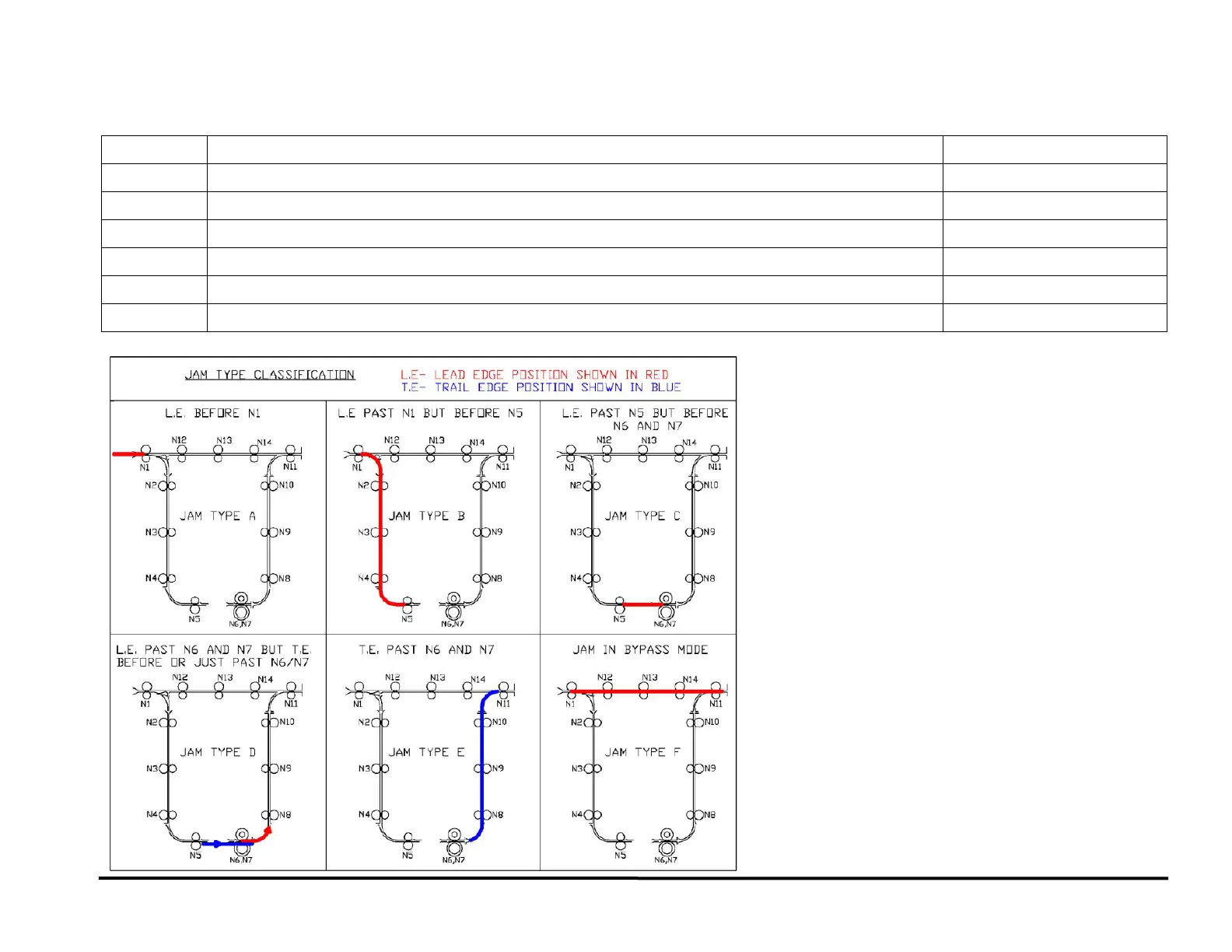

The following table lists each paper jam type. It lists Jam Type (A, B, C, etc.) and the corresponding description (position of first jammed sheet).
Jam Type
Description
RAP
Jam Type A
The lead edge of the first jammed sheet is stopped by nip N1
Do RAP 2.1 Jam Type A
Jam Type B
The lead edge of the first jammed sheet is stopped past nip N1 but before nip N5.
Do RAP 2.2 Jam Type B
Jam Type C
The lead of the first jammed sheet is stopped past nip N5 but before Steering Rollers N6 and N7
Do RAP 2.3 Jam Type C
Jam Type D
The lead edge of the first jammed sheet is past N6 and N7 but its trail edge is before or just past N6/N7.
Do RAP 2.4 Jam Type D
Jam Type E
The trail edge of the first jammed sheet is past Steering rollers N6 and N7
Do RAP 2.5 Jam Type E
Jam Type F
The paper jam is in the Bypass Assembly.
Do RAP 2.6 Jam Type F
