GBC AdvancedPunch Pro Service Manual

GBC AdvancedPunch Pro 09-11-2018 Parts List
5-5
3.Frame Assembly

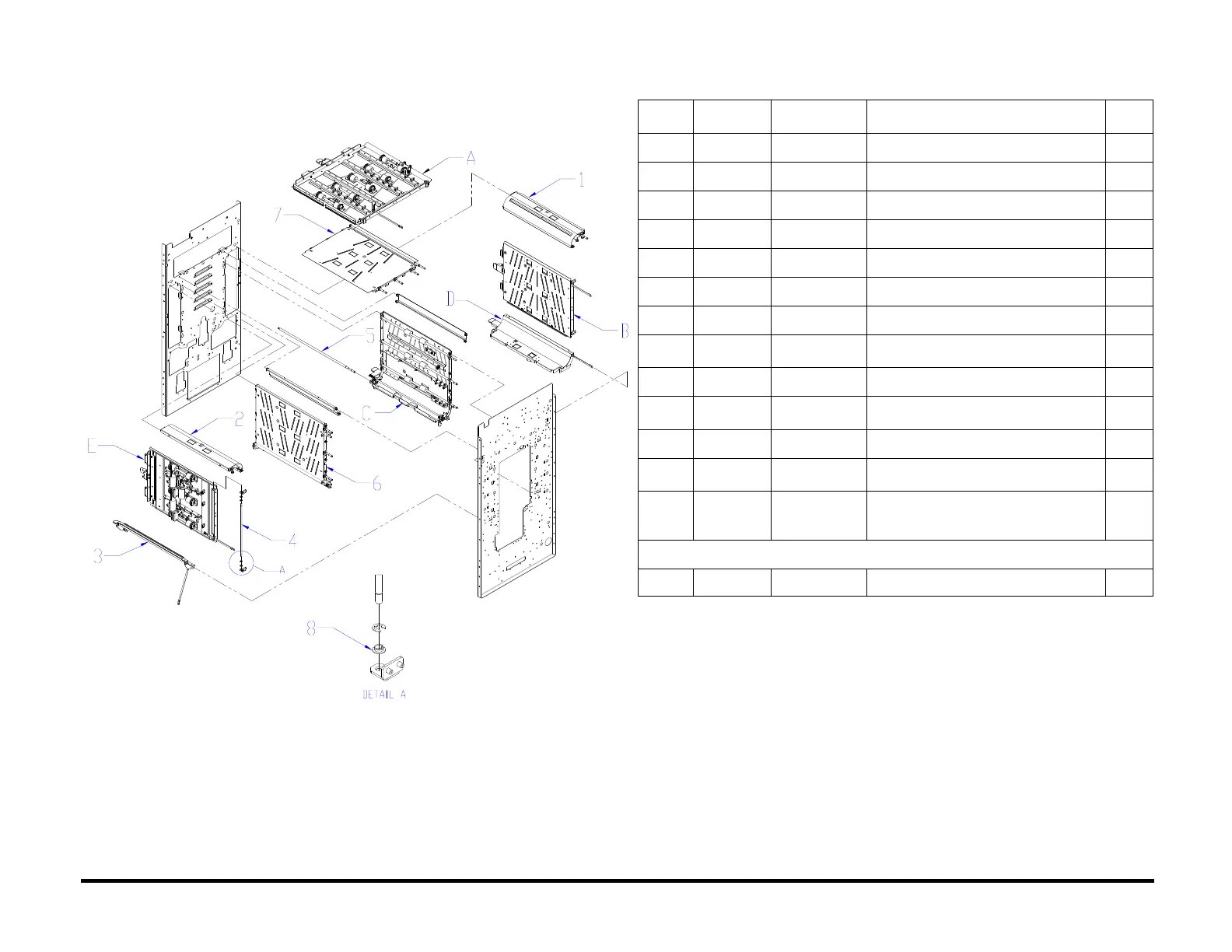

PL 3.1. Frame Assembly- Paper path panels
ITEM
GBC
Part #
Xerox Part
#
DESCRIPTION
QTY
A
PL 4.5
UPPER BYPASS PANEL
1
B
PL 4.2
ENTRANCE IDLER PANEL
1
C
PL 4.1
ENTRANCE DRIVE PANEL
1
D
PL 4.3
ACCELERATION IDLER PANEL
1
E
PL 4.4
EXIT IDLER PANEL
1
1
7715101
002N03202
PANEL, ENTRANCE, LOWER
1
2
7715690
002N03204
PANEL, EXIT, LOWER
1
3
7715424
002N03191
PANEL ASSEMBLY, LOWER,
EXIT
1
4
7715209
006N01358
SHAFT, IDLER PANEL HINGE
2
5
7715210
006N01359
SHAFT,IDLR PANEL
HINGE,LONG
3
6
7715150
002N03195
PANEL WELDMENT, DRIVE, EXIT
1
7
7715128
002N03192
PANEL WELDMNT,
BYPASS,LOWER
1
8
1821209
D
013N13951
D
SNAP-IN BEARING, 6MM ID
[QTY. (2) USED ON ALL IDLER
PANELS- #A, #B, #D, #E AND #3
10
Parts identified above with superscripts are part of Hardware kits.
D
7715976
600N03435
KIT, HARDWARE, BEARINGS
