GBC AdvancedPunch Pro - REP 2.27 Bypass Diverter Replacement

Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-76
REP 2.27 Bypass Diverter Replacement
PARTS LIST ON PL 3.5
Use this procedure to remove and install the Bypass Diverter Assembly.
Removal Procedure
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.6 to remove the Rear Cover.

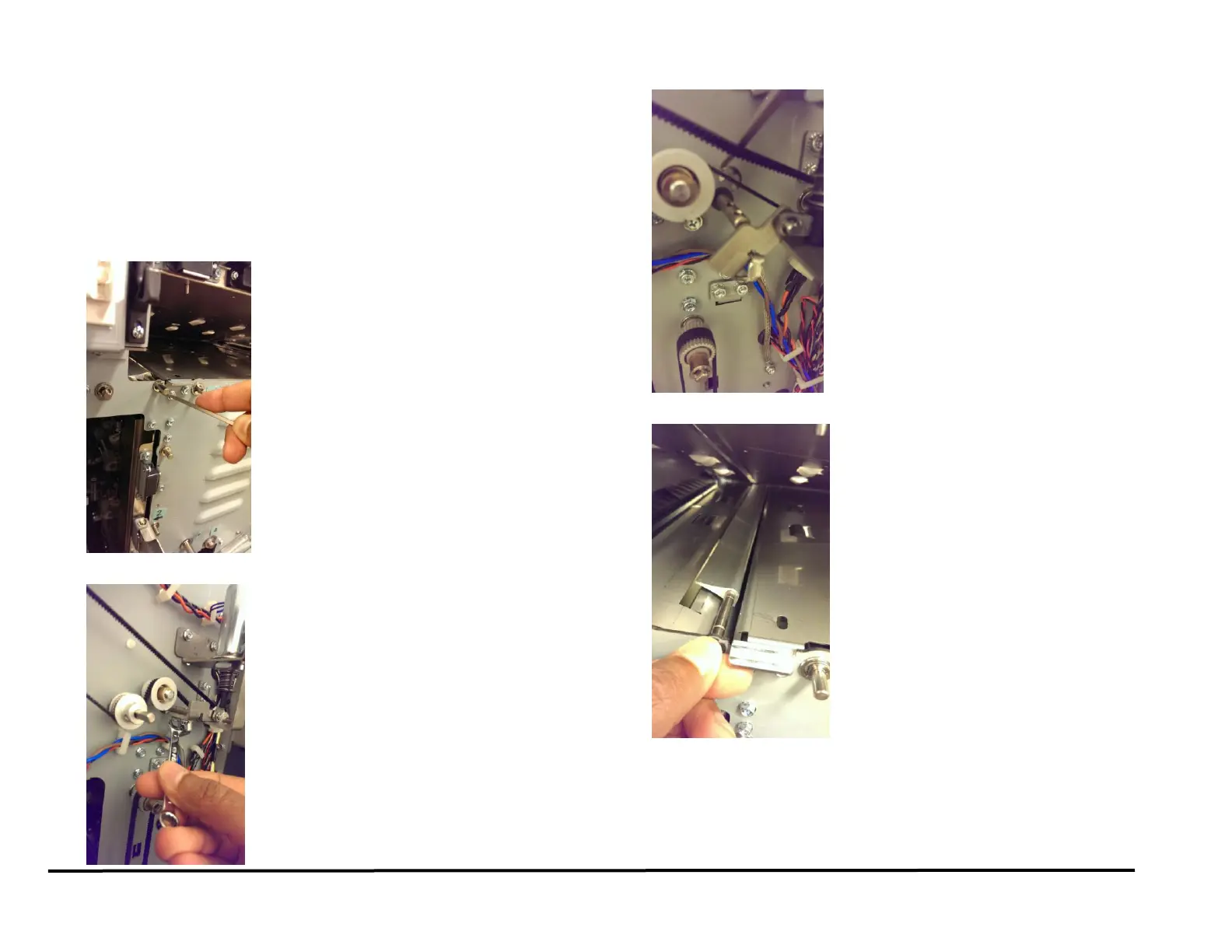

4. Remove the E-clip from the Diverter Shaft on the front side.
5. Remove the M4 screws (2) from the Diverter Shaft on the rear side.
6. Remove the E-clip from the Diverter Shaft on the rear side.
7. Slide the Diverter Assembly to the back side and remove the part.
(Cont.)
