Repairs/Adjustments 08/20/2015 GBC AdvancedPunch Pro
4-16
REP 1.15 LCD Display Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the LCD Display.
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. Do REP 1.11 to remove the Upper Downstream Side Frame Cover.
4. Open the Front Door.

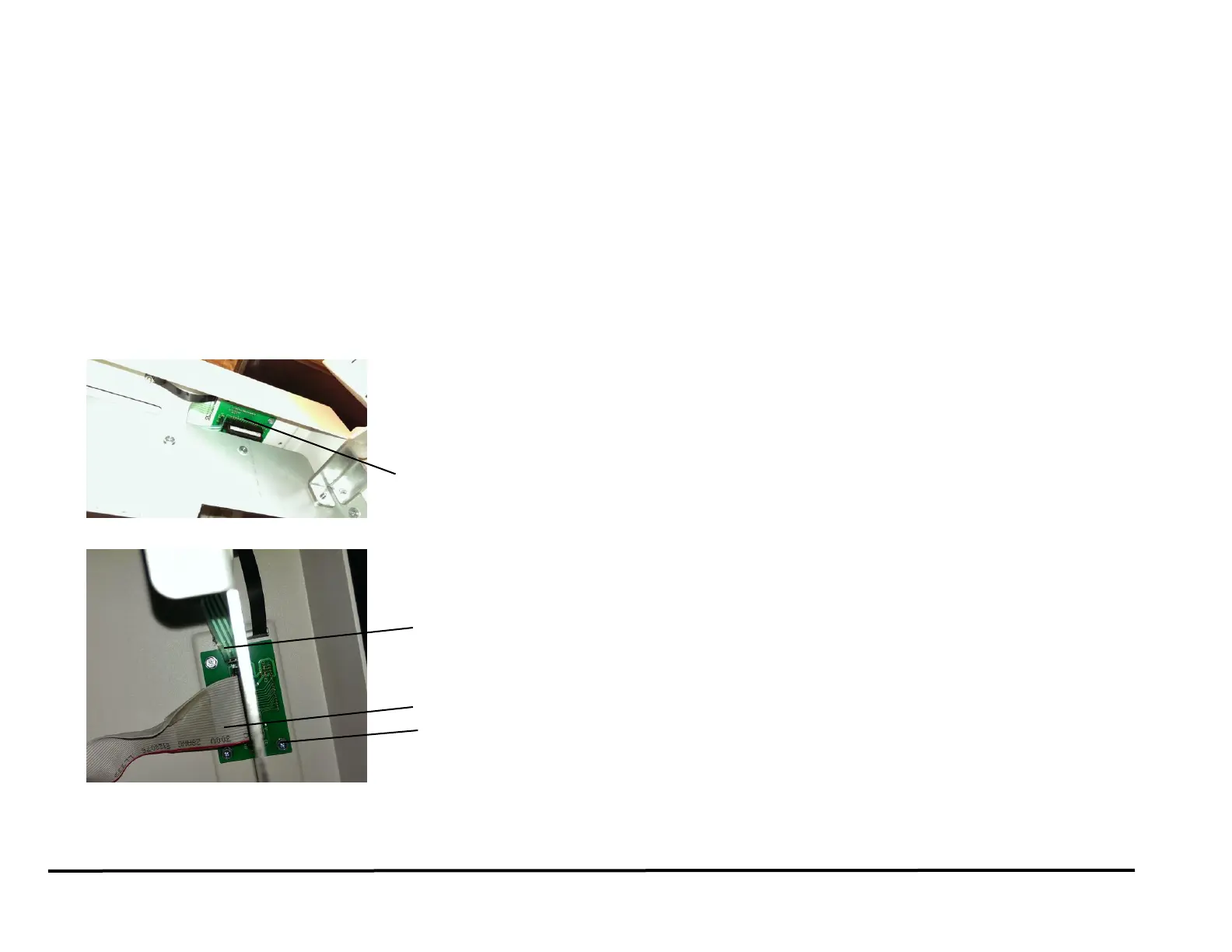

5. Disconnect the Cables from the LCD Display.
6. From the bottom side of the Top Cover, remove the Screws (3)
holding the LCD Display to the Top Cover.
7. Remove the LCD Display.
Installation Procedure
1. Place the new LCD Display Panel in position.
2. Tighten the Screws (3) holding the LCD Display to the Top Cover.
3. Connect the Cables to the LCD Display Panel.
4. Do REP 1.11 to remove the Upper Downstream Side Frame Cover.
5. Close the Front Door.
6. Connect the Power Cord.
7. Power ON the entire printing system.
