GBC AdvancedPunch Pro - GP 6.14.1 Idler Roller Cleaning

GBC AdvancedPunch Pro 09/11/2018 General Procedures and Information
6-63
GP 6.14.1 Idler Roller Cleaning
Use this procedure to clean the Idler Rollers in these assemblies:
 Entrance Idler Panel.
 Acceleration Roller Idler Assy.
 Exit Idler Panel.
 Bypass Idler Assembly
Maintenance Schedule
Inspect and clean every 1000K cycles.
Procedure
1. Do REP 2.12 Idler Roller Replacement to remove the Idler Roller.
2. Clean the Idler Rollers with a soft cloth and alcohol.
3. Inspect rollers for wear patterns or groves. The roller surface should
be smooth.
4. Ensure the rollers turn freely on the shaft and that the idler roller shaft
"floats" freely in the bushing forks.
5. Do REP 2.12 Idler Roller Replacement to install the Idler Roller.

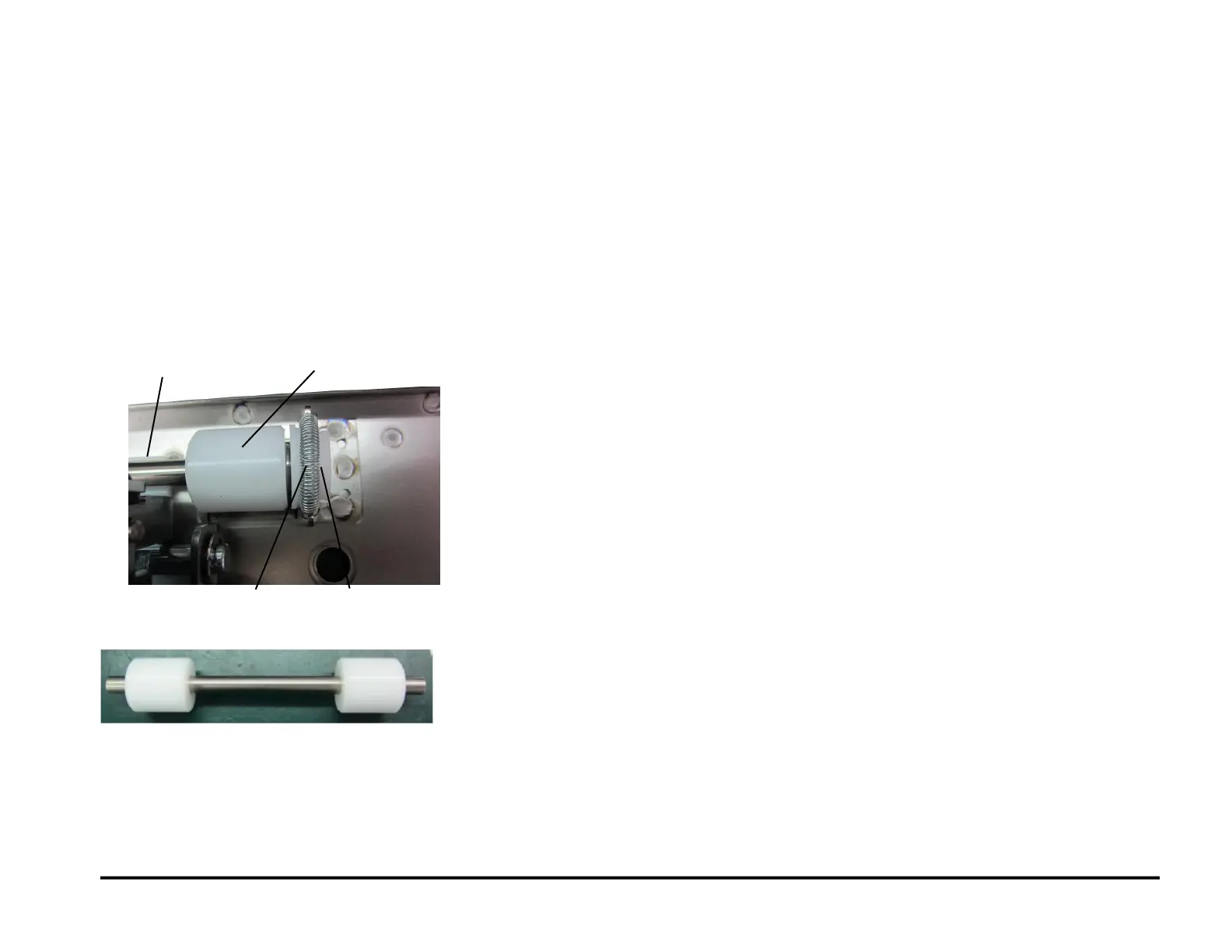

Retaining Spring
Idler Roller
Bearing Housing
Idler Roller Shaft
