GBC AdvancedPunch Pro - REP 1.6 Rear Cover Replacement

GBC AdvancedPunch Pro 08/20/2015 Repairs/Adjustments
4-7
REP 1.6 Rear Cover Replacement
PARTS LIST ON PL 2.2
Use this procedure to remove and install the Rear Cover Assembly
Removal Procedure
WARNING
Do not perform repair activities with the power on or electrical power
supplied to the machine. Some machine components contain
dangerous electrical voltages that can result in electrical shock and
possible serious injury. See Section 0, page vi for other languages.
1. Switch power OFF to entire printing system.
2. Disconnect the Power Cord.
3. DFA Configurations- Disconnect the Upstream and Downstream DFA
Cables.

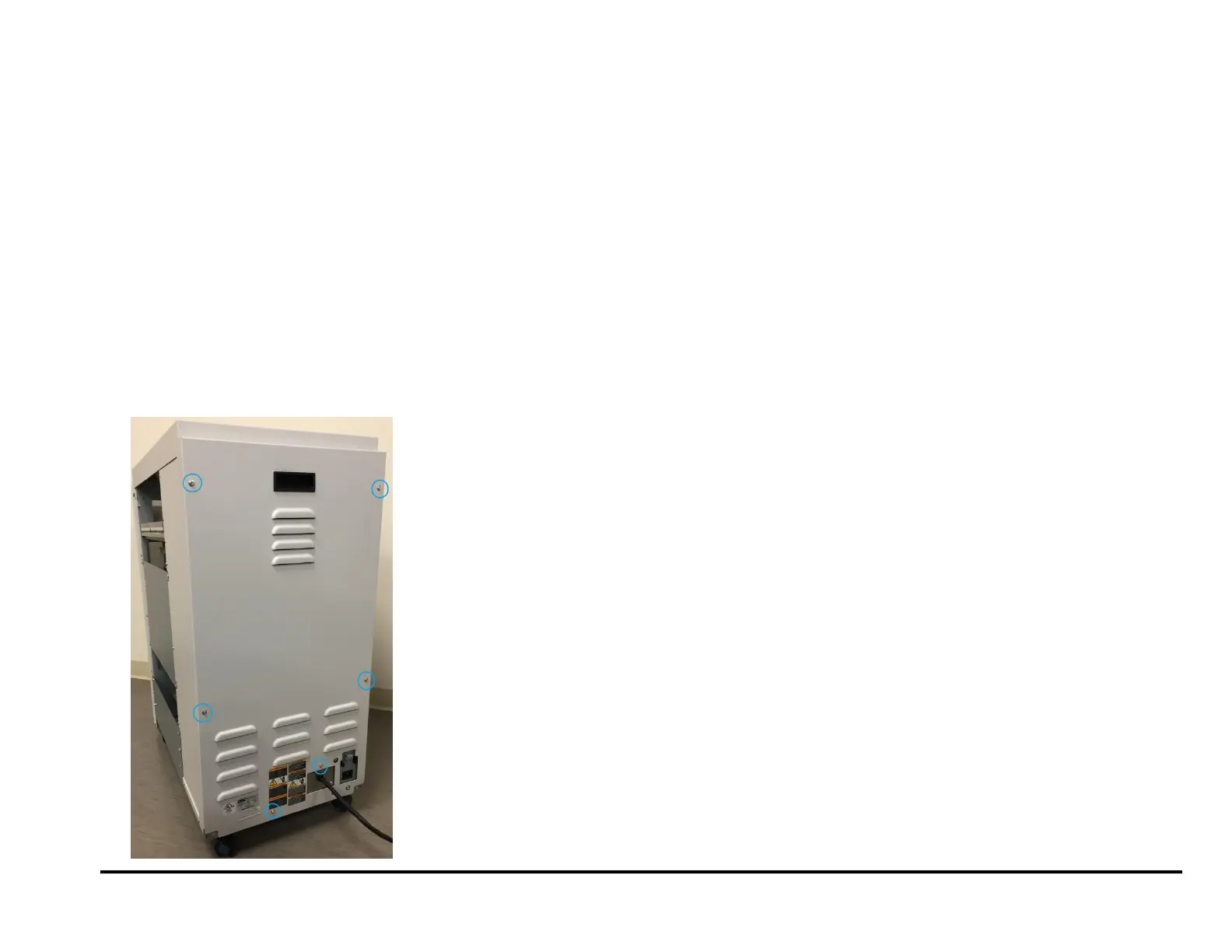

4. Hold the Rear Cover in place so it doesn’t fall as you remove the M4
Screws (6) from the Rear Cover.
5. Grasp the Rear Cover by the handle and remove the Rear Cover.
Installation Procedure
1. Place the Rear Cover in position.
2. Tighten the Screws (6) on the Rear Cover.
3. DFA Configurtions- Connect the Upstream and Downstream DFA
Cables.
4. Connect the Power Cord.
5. Power ON the entire printing system.
